Check Basic Position Of Camshafts - AR05.20-P-6010MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

Modification notes

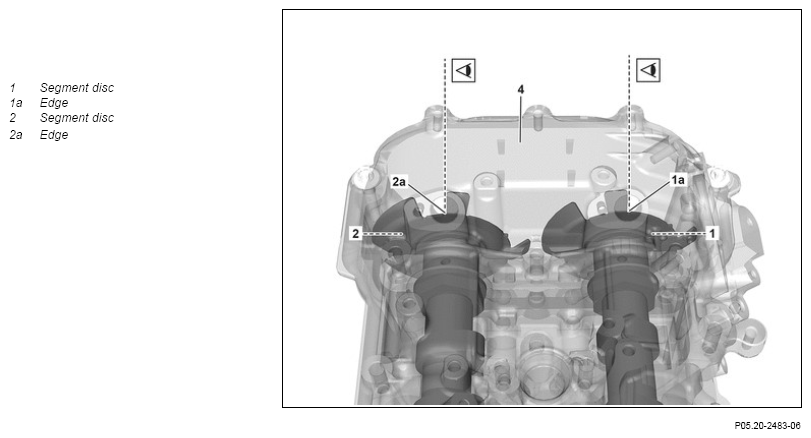

Shown on engine 177, left cylinder head, 53° CKA after ignition TDC of cylinder 1

Courtesy of MERCEDES-BENZ USA

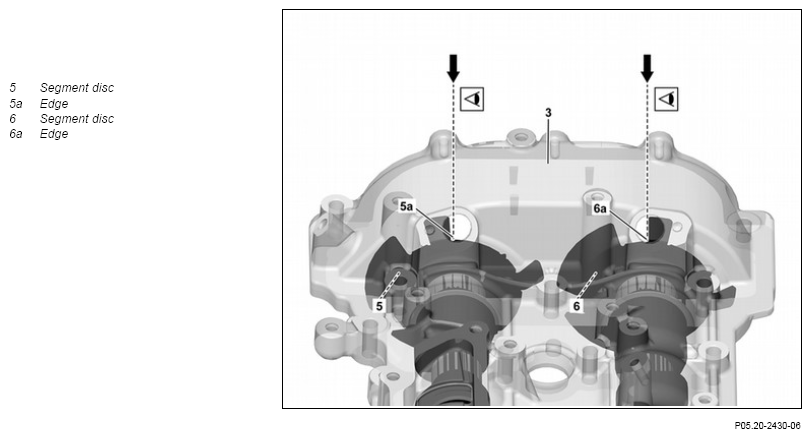

Shown on engine 177, right cylinder head, 53° CKA after ignition TDC of cylinder 1

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove position sensors of camshafts.	Engine 176 in model 463 up to model year 2019	AR15.12-P-2144MNF
		Engine 178 in model 190	AR15.12-P-2144MNB
		Engine 177 in model 205	AR15.12-P-2144MNA
2	Remove bottom engine compartment lining.	Engine 178 in model 190	AR61.20-P-1105RG
		Engine 176 in model 463 as of model year 2016 up to model year 2019 except code ZQ0 (G 500 4x42 )	AR61.20-P-1105GW
		Engine 177 in model 205	AR61.20-P-1105LW
3	Detach circulation pump for low-temperature water circuit and place to one side with lines and hoses attached.	Engine 176 in model 463 up to model year 2019	AR09.41-P-6925MNF
4	Remove clamping device for the poly-V-belt of the alternator.		AR13.20-P-0010MNA
5.1	Attach measuring tool to bracket of tensioning device for poly-V-belt of alternator.	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205
		Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench. Otherwise, damage to the engine or even failure of the engine may occur.	AR01.10-P-1000-01SZ
		Use pointer 177 589 01 21 01.
		Measuring tool	Fig 2
5.2	Attach measuring tool to bracket of tensioning device for poly-V-belt of alternator.	Engine 178 in model 190
		Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench. Otherwise, damage to the engine or even failure of the engine may occur.	AR01.10-P-1000-01SZ
		Use pointer 177 589 01 21 02.
		Measuring tool	Fig 2
6	Check whether marks are present on belt pulley.	If marks are not present: ↓ Apply markings to belt pulley of crankshaft.	AR05.10-P-7806-01MNA
7	Turn engine at center bolt of crankshaft in direction of engine rotation to 53P CKA after ignition TDC of cylinder 1.	Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench. Otherwise, damage to the engine or even failure of the engine may occur.	AR01.10-P-1000-01SZ
		Measuring tool	Fig 2
		Ring wrench	Fig 1
	Check
8	Check basic position of camshafts.	The edges (1a, 2a, 5a, 6a) of the partial segments of the segmented discs (1, 2, 5, 6) must be visible roughly in the middle in the openings of the position sensors of the camshafts. If the segmented discs (1, 2, 5, 6) are not standing centrally, ↓ Turn engine in direction of engine rotation further through one complete revolution. If the segmented discs (1, 2, 5, 6) are still not standing centrally in the openings of the position sensors of the camshafts, ↓ Set basic position of camshafts again.
		AR05.20-P-6020MNA
9	Install in the reverse order.
	Finishing activity
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Perform engine test run. While doing so, check engine for proper operation and leak tightness

Fig 1: Identifying Ring Wrench (177 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Measuring Tool (177 589 01 21 00)

Courtesy of MERCEDES-BENZ USA
