Remove/Install Bottom Part Of Oil Pan - AR01.45-P-7555MNA
Engine 177 in model 205
MODIFICATION NOTES
| 07.02.2018 | Screw/bolt, oil pan bottom section to oil pan top section | BA01.45-P-1006-01Y | |
| 28.06.2018 | Screw, oil pan bottom section to oil pan center section/oil pan top section | BA01.45-P-1006-01Y |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain engine oil. | ||
| AP18.00-P-0101D | |||

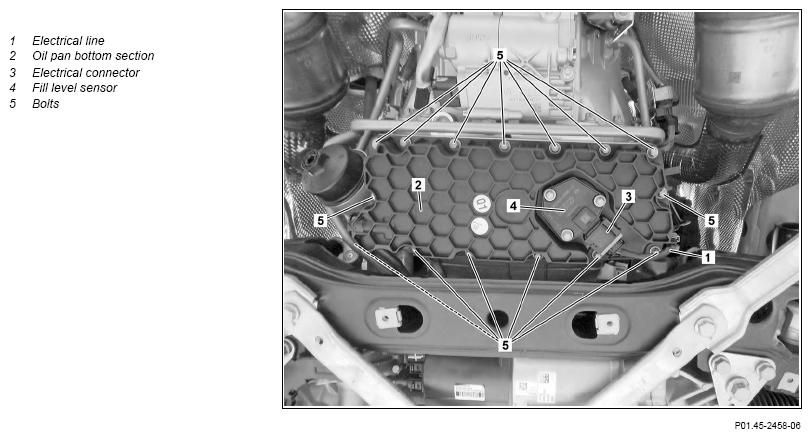

| 2 | Unclip electric line (1) from oil pan bottom section (2). | ||
| 3 | Release and disconnect electrical connector (3) from fill level sensor (4). | ||
| 4 | Remove screws (5), remove oil pan bottom section (2) downward. | Oil pan bottom section tightening procedure Observe tightening procedure for screw/bolts (5). |
AR01.45-P-7500-08MNL |
| *BA01.45-P-1006-01Y | |||
| 5 | Clean sealing surfaces of the oil pan bottom section (2) and oil pan top section. | The sealing surfaces can be damaged otherwise. Assembly cleaner |
*BR00.45-Z-1028-04A |
| 6 | Remove fill level sensor (4). | When installing new oil pan bottom section (2). | AR18.40-P-5116MNA |
| 7 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run and check engine for proper operation and leak tightness. | ||
| 9 | Install rear lower engine compartment paneling. | AR61.20-P-1105LW |
OIL PAN
| Number | Designation | Engine 177 in model 093, 192, 205, 213, 214, 217, 222, 223, 231, 232, 253, 290 | |
|---|---|---|---|
| BA01.45-P-1006-01Y | Screw, oil pan bottom section to oil pan center section/oil pan top section | Nm | 12 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
