Remove/Install Engine Oil Fill Level Sensor - AR18.40-P-5116MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205

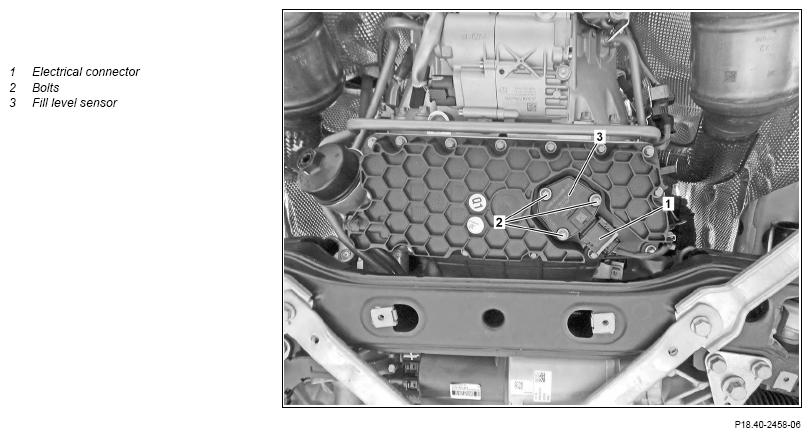

Shown on engine 177 in model 205
| Remove/install | |||
| 1 | Drain engine oil. | ||
| Engine 176 in model 463.234/239/255 up to model year 2019 | AP18.00-P-0101GGE | ||
| Engine 177 in model 205 | AP18.00-P-0101D | ||
| 2 | Disconnect electrical connector (1). | ||
| 3 | Unscrew screws (2) and remove fill level sensor (3) downward. | ||
| *BA18.40-P-1002-02D | |||
| 4 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Carry out engine test run and check engine for proper operation and leak tightness. |
OIL SENSOR
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA18.40-P-1002-02D | Bolt, fill level sensor to oil pan | Nm | 8 | 8 |
