Remove/Install Coolant Thermostat - AR20.10-P-2461MNG

Engine 177 in model 205, 253

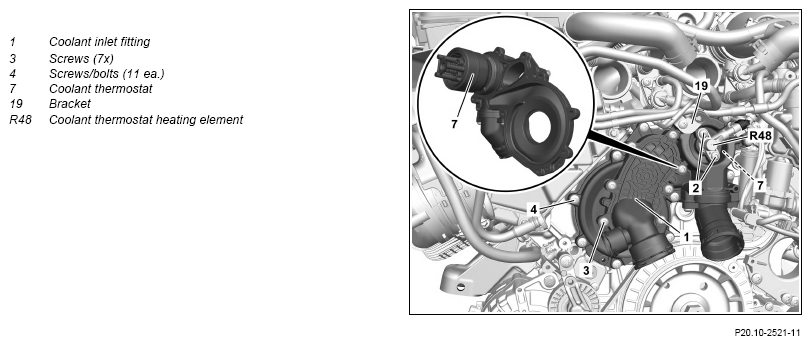

Fig 1: Coolant Thermostat Component Location - Model 205 W/ Engine 177

Courtesy of MERCEDES-BENZ USA

Shown on engine 177.### ## up to 081179

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install
1	Drain off coolant.	Engine 177 in model 205	AR20.00-P-1142LW
		Engine 177 in model 253 Do not install center and front lower engine compartment lining until after leak test.	AR20.00-P-1142MNG
2	Remove right charge air cooler.	Engine 177.### ## up to 081179 in model 205	AR09.41-P-6828MNA
		Engine 177.### ## as of 081179 in model 205 253	AR09.41-P-6828MNH
		Engine 177.### ## up to 081179 in model 253	AR09.41-P-6828MNG
3	Remove left charge air cooler.	Engine 177.### ## up to 081179 in model 205	AR09.41-P-6827MNA
		Engine 177.### ## up to 081179 in model 253	AR09.41-P-6827MNG
		Engine 177.### ## as of 081179 in model 205 253	AR09.41-P-6827MNH
4	Remove lower coolant expansion reservoir for low-temperature circuit.	Engine 177.### ## up to 081179 in model 205, 253
			AR09.41-P-0060MNG

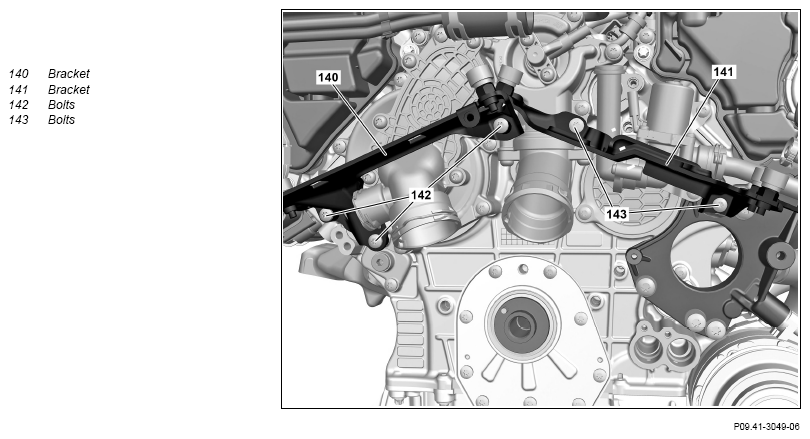

5	Remove screws (142, 143).	Engine 177.### ## up to 081179 in model 205, 253
		M6X1	*BA00.10-P-1002-04A
		Bolt, lower charge air cooler bracket to thermostat/crankcase	*BA09.41-P-1007-01X
6	Remove holders (140, 141) upward.	Engine 177.### ## up to 081179 in model 205, 253
7	Release and disconnect electrical connector of coolant thermostat heating element (R48).
8	Unscrew screw of coolant line holder (19) on coolant thermostat (7).	M6X1	*BA00.10-P-1002-04A
9	Unscrew screws (3) and remove coolant inlet fitting (1).	Replace seal.
		Screw, coolant outlet fitting/coolant connection to thermostat housing	*BA20.10-P-1005-01ZA
10	Remove screws (4) and remove coolant thermostat (7).	Replace seal.
		Bolt, thermostat housing to crankcase	*BA20.10-P-1002-01ZA
11	Install in the reverse order.
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Carry out engine test run and check engine for proper operation and leak tightness.
13	Install the center and front lower engine compartment paneling.		AR61.20-P-1105LW
