Notes On Coolant Level - AH20.00-P-1142-01CW
Model117, 124, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197, 199, 201, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 213, 215, 216
Model118, 247 with engine 139, 260, 282, 608, 654
Model167
Model192, 206, 214, 217, 218, 219, 220, 221, 222, 223, 230, 231, 232, 238, 240, 242, 246, 251, 254, 257, 290, 292
Model245 with engine 266, 640
Model253 with engine 177, 264, 274, 276, 642, 651, 654, 656
Model415 with engine 200, 607, 608
Model420 with engine 200, 608, 780
Model447 with engine 274, 622, 651, 654.9
Model448, 470, 471, 636
Model461, 463 with engine 612
Model461, 463 with engine 642
Model463 with engine 112, 113, 157, 264, 273, 279, 628
Model463 with engine 176, 177, 656 as of model year 2019
Model463 with engine 176 up to model year 2019
Model639 with engine 112, 272, 642, 646, 651
Model900, 906, 907, 909
Model910 with engine 651, 654.9, 780.703

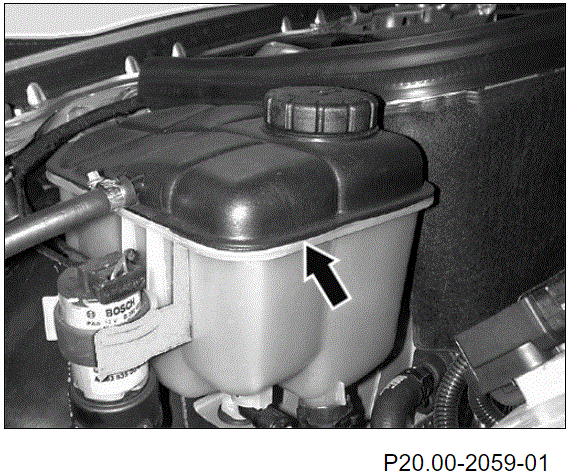

When the engine is cold, the coolant level must be level with the marking (arrow) in the coolant expansion reservoir (1).
When coolant is warm: Approx. 1 cm above this mark(arrow).
Shown on model 166, 204, 207, 212, 218, 290.688, 292

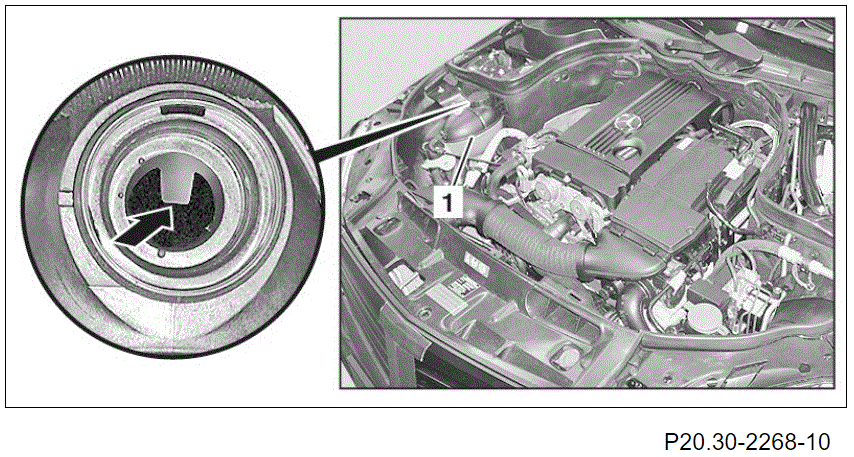

When the engine is cold, the coolant level must reach up to the upper edge of the web (arrow) in the coolant expansion reservoir (1).
When coolant is warm: Approx. 1 cm above the upper edge of the web(arrow).
Shown on model 117, 156, 167, 176, 177, 197, 213, 223, 238, 242, 246, 257, 290.65/66, 290.689

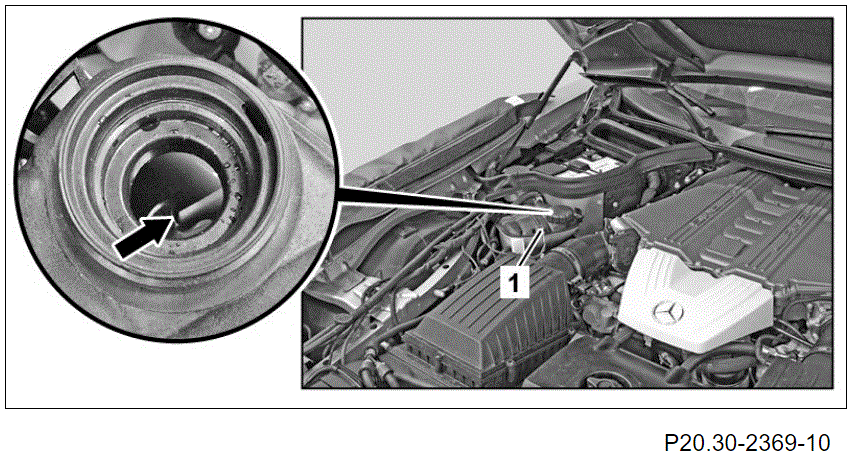

When the engine is cold, the engine coolant level must reach up to the marking "MIN" at the coolant expansion reservoir.
The marking on the coolant expansion reservoir is stamped in as of approx. 6.99.
Shown on model 168 with engine 668

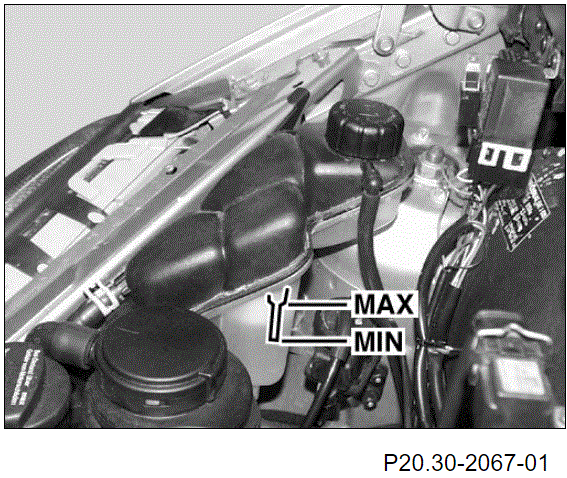

The coolant level on a cold engine must reach up to the marking (arrow) on the coolant expansion reservoir.
When coolant is warm: coolant level approx. 1 cm over this mark.
Shown on model 203 with engine 112

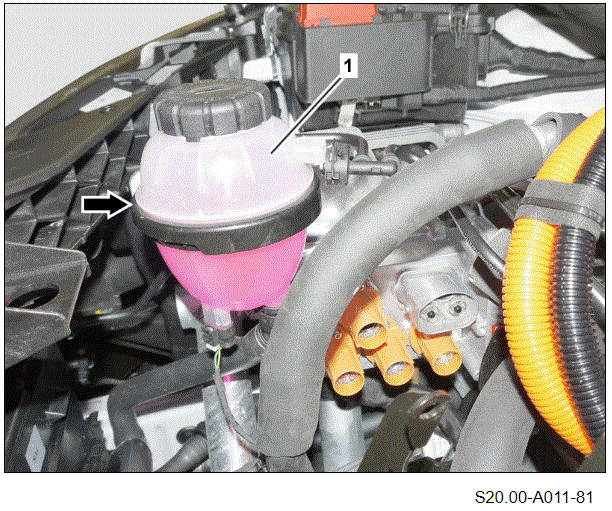

When the coolant is cold, the coolant level must reach up to the marking (arrow) on the coolant expansion reservoir (1).
When the electric motor is at operating temperature, the coolant level must be slightly above the marking (arrow) on the coolant expansion reservoir (1).
Shown on model 447 with engine 780.701, main circuit

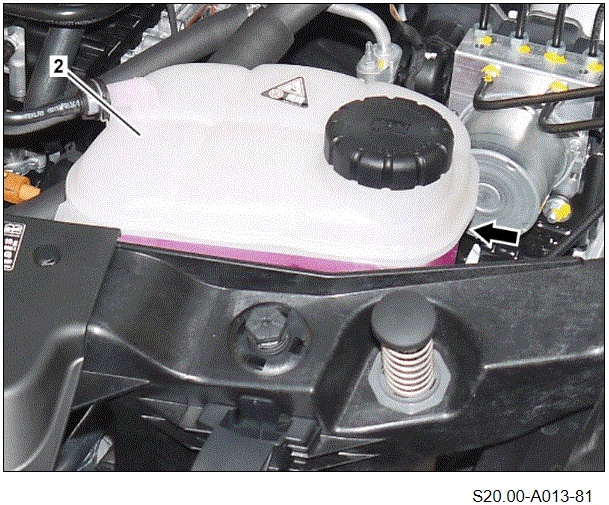

When the coolant is cold, the coolant level must reach up to the marking (arrow) on the coolant expansion reservoir (2).
When the coolant is at operating temperature, the coolant level must be slightly above the marking (arrow) on the coolant expansion reservoir (2).
Shown on model 447 with engine 780.701, auxiliary circuit
