Remove/Install Poly-V-Belt Of Refrigeration Compressor Of Air Conditioning System - AR13.21-P-1203MNA
Engine 177 in model 205
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove | |||
| 1 | Remove lower engine compartment paneling | AR61.30-P-1001LW | |
| 2 | Disconnect oil lines of engine oil cooler on crankcase and place to one side | ||
| 3 | Release clamping device (2) counterclockwise and lock clamping device (2) using a suitable drift | ||

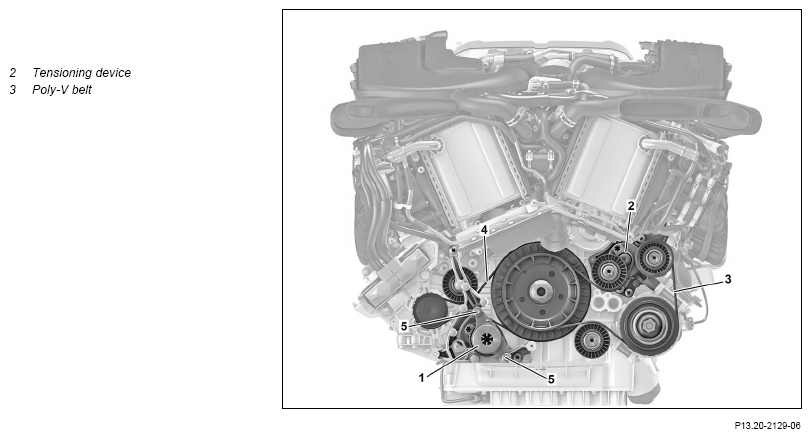

| 4 | Remove poly-V belt (3) | ||
| Check | |||
| 5 | Check belt pulley of A/C compressor for damage | If damage is present ↓ Replace A/C compressor |
|
| 6 | Check belt pulley/vibration damper for damage | If damage is present ↓ Replace belt pulley/vibration damper |
AR83.55-P-5310LWA |
| 7 | Upper guide pulley for poly-V belt (3) of refrigerant compressor for damage | for damage ↓ Replace upper guide pulley for poly-V belt (3) of refrigerant compressor |
AR13.20-P-0003MNA |
| 8 | Check lower guide pulley for poly-V belt (3) of refrigerant compressor for damage | for damage ↓ Replace upper guide pulley for poly-V belt (3) of refrigerant compressor |
AR13.20-P-0004MNA |
| 9 | Check tensioning device (2) for poly-V belt (3) of refrigerant compressor for damage | for damage ↓ Replace clamping device (2) for fan poly-V belt (3) of A/C compressor |
AR13.20-P-0002MNA |
| Install | |||
| 10 | Fit on poly-V belt (3) | Routing diagram of poly-V belt |
AR13.22-P-3902-02MNA |
| 11 | Pull out drift and tension poly-V belt (3) with clamping device (2) | ||
| 12 | Mount oil lines of the engine oil cooler at crankcase | *BA18.30-P-1009-01N | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Perform an engine test run and check engine for leaks | ||
| 14 | Install lower engine compartment paneling | AR61.30-P-1001LW |
OIL COOLING
| Number | Designation | Engine 177 except in model 463 | |
|---|---|---|---|
| BA18.30-P-1009-01N | Bolt, oil line to engine | Nm | 8 |
