Remove/Install Tensioning Device For Poly-V Belt Of Refrigerant Compressor - AR13.20-P-0002MNA
Engine 177 in model 205
| Remove/install | |||

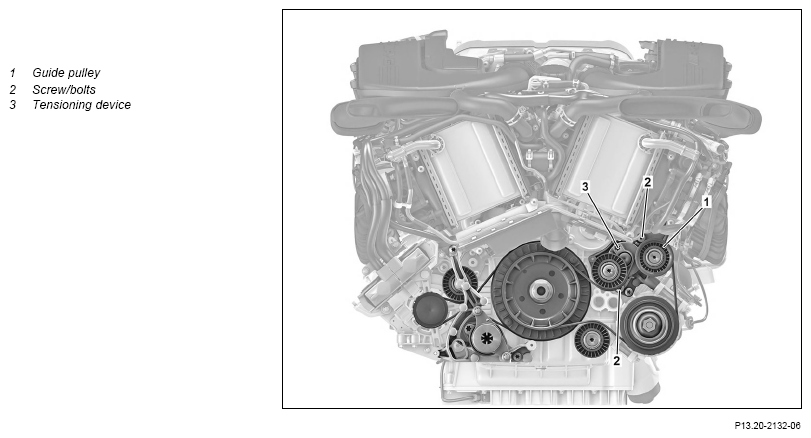

| 1 | Remove guide pulley (1) | AR13.20-P-0003MNA | |
| 2 | Remove screw/bolts (2) and remove clamping device (3) downwards | *BA13.25-P-1001-01CA | |
| 3 | Install in the reverse order |
BELT TENSIONER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA13.25-P-1001-01CA | Bolt, belt tensioner to left bracket | Nm | 20 |
