Remove/Install Lower Guide Pulley For Poly-V Belt Of Refrigerant Compressor - AR13.20-P-0004MNA
Engine 177 in model 205
| Remove/install | |||
| 1 | Remove lower engine compartment paneling | AR61.20-P-1105LW | |

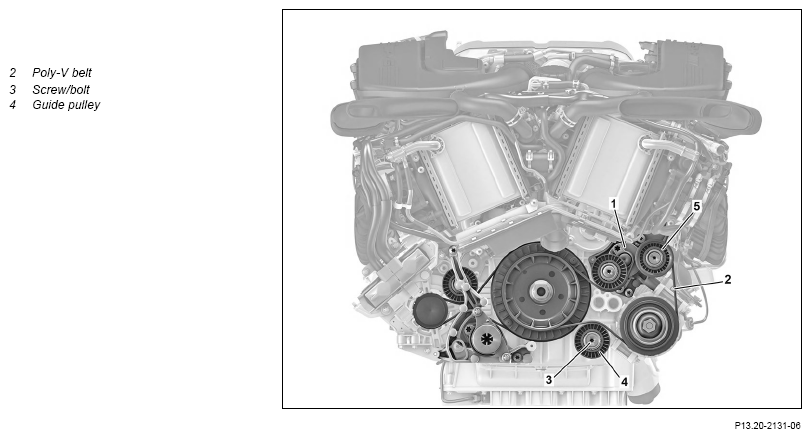

| 2 | Remove poly-V belt (2) | AR13.21-P-1203MNA | |
| 3 | Remove screw/bolt (3) and then guide pulley (4) downwards | *BA13.25-P-1003-01CA | |
| 4 | Install in the reverse order |
BELT TENSIONER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA13.25-P-1003-01CA | Bolt, guide pulley to bracket | Nm | 20 |
