Remove/Install Poly V-Belt Of Alternator - AR13.22-P-0003MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 in model 190

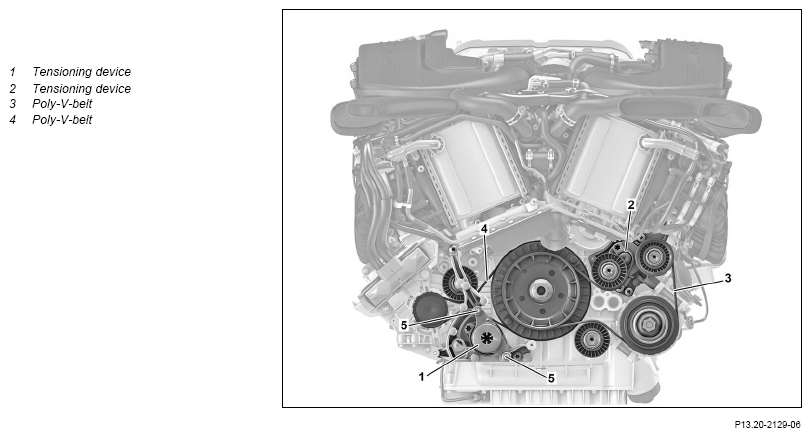

Shown on ENGINE 177
| Remove | |||
| 1.1 | Remove poly-V belt (3) of air conditioning A/C compressor | Engine 177 in model 205 | AR13.21-P-1203MNA |
| 1.2 | Remove poly-V belt (3) of power steering pump | Engine 178 in model 190 | AR13.21-P-0131MNB |
| 1.3 | Remove poly-V belt (3) for power steering pump and refrigerant compressor | Engine 176 in model 463 up to model year 2019 | AR13.21-P-0132MNF |
| 2 | Detach cover panel for belt pulley on alternator and place to one side | Engine 176 in model 463 up to model year 2019 | |
| 3 | Release clamping device (1) counterclockwise and lock clamping device (1) using a suitable drift | ||
| 4 | Remove poly-V belt (4) | ||
| Check | |||
| 5 | Check belt pulley of alternator for damage | If damage is present ↓ Replace alternator belt pulley Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 Engine 178 in model 190 |
AR15.40-P-5710MNA |
| 6 | Check belt pulley/vibration damper for damage | If damage is present ↓ Replace belt pulley/vibration damper Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 Engine 178 in model 190 |
AR03.30-P-1600MNA |
| 7 | Check guide pulley for poly-V belt (4) of alternator for damage | For damage ↓ Replace guide pulley for poly-V belt (4) |
|
| Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 Engine 178 in model 190 |
AR13.20-P-0011MNA | ||
| 8 | Check tensioning device (1) for poly-V belt (4) of alternator for damage | For damage ↓ Replace clamping device (1) for poly-V belt (4) |
|
| AR13.20-P-0010MNA | |||
| Install | |||
| 9 | Fit on poly-V-belt (4) | Routing diagram of poly-V belt |
AR13.22-P-3902-02MNA |
| 10 | Pull out drift and tension poly-V-belt (4) with clamping device (2) | ||
| 11 | Attach cover panel for belt pulley of alternator | Engine 176 in model 463 up to model year 2019 | |
| 12.1 | Install poly-V belt (3) of air conditioning A/C compressor | Engine 177 in model 205 | AR13.21-P-1203MNA |
| 12.2 | Install poly-V belt of power steering pump | Engine 178 in model 190 | AR13.21-P-0131MNB |
| 12.3 | Remove poly-V belt for power steering pump and refrigerant compressor | Engine 176 in model 463 up to model year 2019 | AR13.21-P-0132MNF |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Perform an engine test run and check engine for proper function |
