(Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997RF)
Model 205
up to model year 2019
with code 218 (Rear view camera)
Model 205
up to model year 2019
with code 235 (Active Parking Assist)
Model 205
up to model year 2019
with code 501 (360° camera)
Model 253 (except 253.99)
up to model year 2020
with code 218 (Rear view camera)
Model 253 (except 253.99)
up to model year 2020
with code 235 (Active Parking Assist)
Model 253 (except 253.99)
up to model year 2020
with code 501 (360° camera)

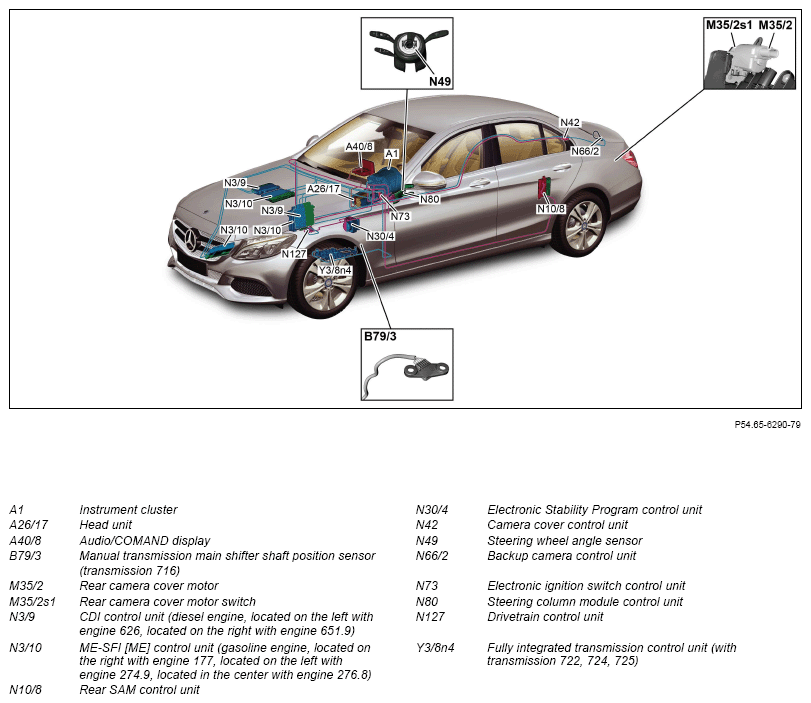

Reversing camera (RFK) (with CODE 218 (Reversing camera)), shown on model 205.0

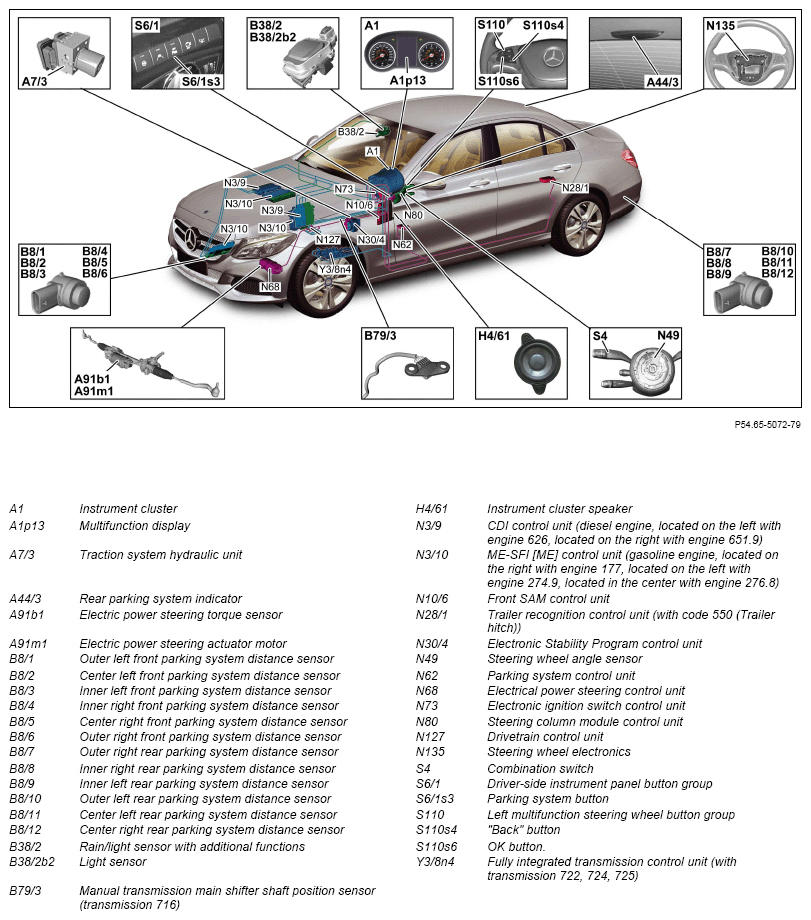

Parking system (with code 235 (Parking Pilot with PARKTRONIC)), shown on model 205.0

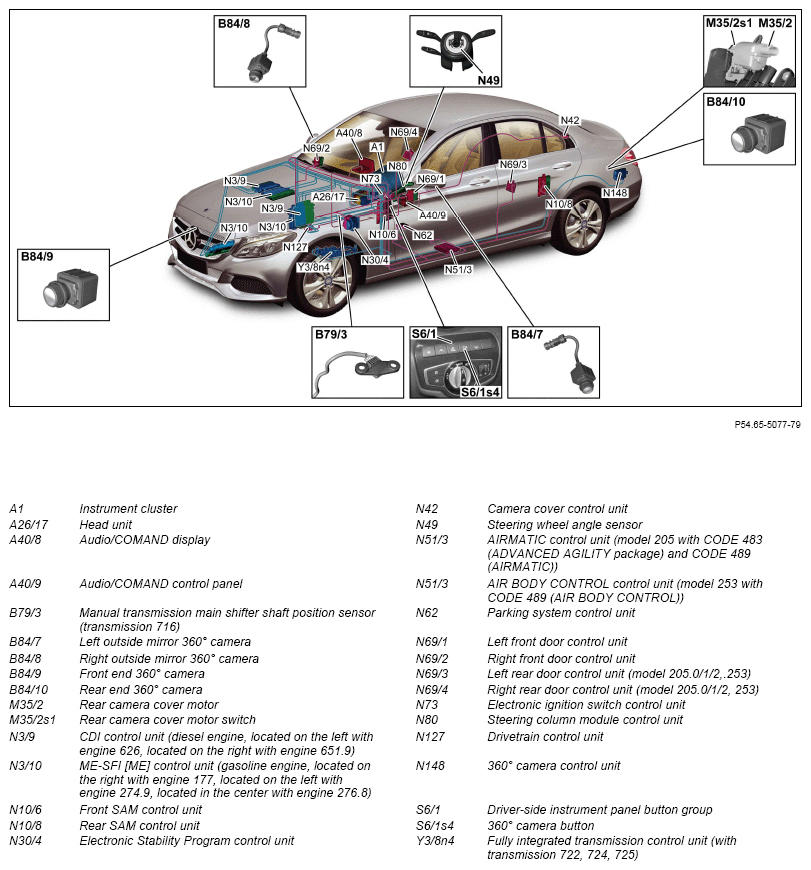

360° camera (with CODE 501 (360° camera)), shown on model 205.0
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Model 205 up to model year 2019 with code 218 (Rear view camera) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 205 up to model year 2019 with code 235 (Active Parking Assist) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 205 up to model year 2019 with code 501 (360° camera) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 218 (Rear view camera) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 235 (Active Parking Assist) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 up to model year 2019 with code 218 (Rear view camera) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 205 up to model year 2019 with code 235 (Active Parking Assist) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 205 up to model year 2019 with code 501 (360° camera) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 218 (Rear view camera) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 235 (Active Parking Assist) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 up to model year 2019 with code 218 (Rear view camera) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 205 up to model year 2019 with code 235 (Active Parking Assist) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 205 up to model year 2019 with code 501 (360° camera) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 (except 253.99) up to model year 2020 with code 218 (Rear view camera) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 (except 253.99) up to model year 2020 with code 235 (Active Parking Assist) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Component description for CDI control unit | Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code 218 (Rear view camera) with code 494 (US version) Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code 235 (Active Parking Assist) with code 494 (US version) Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code 494 (US version) with code 501 (360° camera) Model 253 (except 253.99) with engine 651.9 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 651.9 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.99) with engine 651.9 up to model year 2020 with code 501 (360° camera) N3/9 |
GF07.16-P-6000OLD | |
| Model 205 (except 205.012/212) with engine 651 up to model year 2019 with code 218 (Rear view camera) except code 494 (US version) Model 205 (except 205.012/212) with engine 651 up to model year 2019 with code 235 (Active Parking Assist) except code 494 (US version) Model 205 (except 205.012/212) with engine 651 up to model year 2019 with code 501 (360° camera) except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205.012/212 with engine 651.9 up to model year 2019 with code 218 (Rear view camera) Model 205.012/212 with engine 651.9 up to model year 2019 with code 235 (Active Parking Assist) Model 205.012/212 with engine 651.9 up to model year 2019 with code 501 (360° camera) N3/9 |
GF07.16-P-6000OLC | ||
| Model 205 with engine 626 up to model year 2019 with code 218 (Rear view camera) Model 205 with engine 626 up to model year 2019 with code 235 (Active Parking Assist) Model 205 with engine 626 up to model year 2019 with code 501 (360° camera) N3/9 |
GF07.16-P-6000ORB | ||
| Model 253 (except 253.99) with engine 642.8 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 642.8 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.99) with engine 642.8 up to model year 2020 with code 501 (360° camera) N3/9 |
GF07.16-P-6000OGY | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 177.9 up to model year 2019 with code 218 (Rear view camera) Model 205 with engine 177.9 up to model year 2019 with code 235 (Active Parking Assist) Model 205 with engine 177.9 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) with engine 177.9 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 177.9 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.99) with engine 177.9 up to model year 2020 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 with code 218 (Rear view camera) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 with code 235 (Active Parking Assist) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.353/354/953/954) with engine 274.9 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.353/354/953/954) with engine 274.9 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.353/354/953/954) with engine 274.9 up to model year 2020 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 up to model year 2019 with code 218 (Rear view camera) Model 205.047/053/054/147/247/253 with engine 274.9 up to model year 2019 with code 235 (Active Parking Assist) Model 205.047/147/247 with engine 274.9 up to model year 2019 with code 501 (360° camera) Model 253.353/354/953/954 with engine 274.9 up to model year 2020 with code 218 (Rear view camera) Model 253.353/354/953/954 with engine 274.9 up to model year 2020 with code 235 (Active Parking Assist) Model 253.353/354/953/954 with engine 274.9 up to model year 2020 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MRH | ||
| Model 205 with engine 276.8 up to model year 2019 with code 218 (Rear view camera) Model 205 with engine 276.8 up to model year 2019 with code 235 (Active Parking Assist) Model 205 with engine 276.8 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) with engine 276.8 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 276.8 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.99) with engine 276.8 up to model year 2020 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MMV | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Component description for trailer recognition control unit | Model 205 up to model year 2019 with code 218 (Rear view camera) with code 550 (Trailer coupling) Model 205 up to model year 2019 with code 235 (Active Parking Assist) with code 550 (Trailer coupling) Model 205 up to model year 2019 with code 501 (360° camera) with code 550 (Trailer coupling) Model 253 (except 253.99) up to model year 2020 with code 218 (Rear view camera) with code 550 (Trailer coupling) Model 253 (except 253.99) up to model year 2020 with code 235 (Active Parking Assist) with code 550 (Trailer coupling) Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2019 with code 218 (Rear view camera) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2019 with code 235 (Active Parking Assist) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2019 with code 501 (360° camera) Model 253 (except 253.353/354/953/954/99) up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.353/354/953/954/99) up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.353/354/953/954/99) up to model year 2020 with code 501 (360° camera) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253 up to model year 2019 with code 218 (Rear view camera) Model 205.012/013/047/053/054/147/212/213/247/253 up to model year 2019 with code 235 (Active Parking Assist) Model 205.012/013/047/053/054/147/212/213/247/253 up to model year 2019 with code 501 (360° camera) Model 253.353/354/953/954 up to model year 2020 with code 218 (Rear view camera) Model 253.353/354/953/954 up to model year 2020 with code 235 (Active Parking Assist) Model 253.353/354/953/954 up to model year 2020 with code 501 (360° camera) N30/4 |
GF42.45-P-5119RFH | ||
| Camera cover control unit, component description | Model 205 up to model year 2019 with code 218 (Rear view camera) Model 205 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) N42 |
GF54.65-P-5005RF | |
| AIRMATIC control unit, component description | Model 205 up to model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 501 (360° camera) N51/3 |
GF32.22-P-5110RF | |
| AIR BODY CONTROL control unit, component description | Model 253 (except 253.99) up to model year 2020 with code 489 (AIR BODY CONTROL) with code 501 (360° camera) N51/3 |
GF32.22-P-5111RF | |
| Parking system control unit component description | Model 205 up to model year 2019 with code 235 (Active Parking Assist) Model 253 (except 253.99) up to model year 2020 with code 235 (Active Parking Assist) N62 |
GF54.65-P-5002RF | |
| Component description for reversing camera control unit | Model 205 up to model year 2019 with code 218 (Rear view camera) except code 235 (Active Parking Assist) Model 253 (except 253.99) up to model year 2020 with code 218 (Rear view camera) except code 235 (Active Parking Assist) N66/2 |
GF54.65-P-5030RFM | |
| Electrical power steering control unit(ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) N693, N694 |
GF72.29-P-6021RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RF | |
| Drivetrain control unit, component description | Model 205 with engine 626 up to model year 2019 with code 218 (Rear view camera) Model 205 with engine 626 up to model year 2019 with code 235 (Active Parking Assist) Model 205 with engine 626 up to model year 2019 with code 501 (360° camera) N127 |
GF54.21-P-2141ORB | |
| Model 205.012/212 with engine 651.9 up to model year 2019 with code 218 (Rear view camera) Model 205.012/212 with engine 651.9 up to model year 2019 with code 235 (Active Parking Assist) Model 205.012/212 with engine 651.9 up to model year 2019 with code 501 (360° camera) N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code 218 (Rear view camera) Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code 235 (Active Parking Assist) Model 205 (except 205.012/212) with engine 651.9 up to model year 2019 with code 501 (360° camera) Model 253 with engine 642.8 up to model year 2020 with code 218 (Rear view camera) Model 253 with engine 642.8 up to model year 2020 with code 235 (Active Parking Assist) Model 253 with engine 642.8 up to model year 2020 with code 501 (360° camera) Model 253 with engine 651.9 up to model year 2020 with code 218 (Rear view camera) Model 253 with engine 651.9 up to model year 2020 with code 235 (Active Parking Assist) Model 253 with engine 651.9 up to model year 2020 with code 501 (360° camera) N127 |
GF54.21-P-2141OLD | ||
| Model 205 with engine 177.9 up to model year 2019 with code 218 (Rear view camera) Model 205 with engine 177.9 up to model year 2019 with code 235 (Active Parking Assist) Model 205 with engine 177.9 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) with engine 177.9 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 177.9 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.99) with engine 177.9 up to model year 2020 with code 501 (360° camera) N127 |
GF54.21-P-2141MNA | ||
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 with code 218 (Rear view camera) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 with code 235 (Active Parking Assist) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.353/354/953/954) with engine 274.9 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.353/354/953/954) with engine 274.9 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.353/354/953/954) with engine 274.9 up to model year 2020 with code 501 (360° camera) N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 up to model year 2019 with code 218 (Rear view camera) Model 205.047/053/054/147/247/253 with engine 274.9 up to model year 2019 with code 235 (Active Parking Assist) Model 205.047/053/054/147/247/253 with engine 274.9 up to model year 2019 with code 501 (360° camera) Model 253.353/354/953/954 with engine 274.9 up to model year 2020 with code 218 (Rear view camera) Model 253.353/354/953/954 with engine 274.9 up to model year 2020 with code 235 (Active Parking Assist) Model 253.353/354/953/954 with engine 274.9 up to model year 2020 with code 501 (360° camera) N127 |
GF54.21-P-2141MRH | ||
| Model 205 with engine 276.8 up to model year 2019 with code 218 (Rear view camera) Model 205 with engine 276.8 up to model year 2019 with code 235 (Active Parking Assist) Model 205 with engine 276.8 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) with engine 276.8 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with engine 276.8 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.99) with engine 276.8 up to model year 2020 with code 501 (360° camera) N127 |
GF54.21-P-2141RF | ||
| Component description for 360 degree viewing system control unit | Model 205 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) N148 |
GF54.65-P-5003RF | |
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) up to model year 2019 with code 218 (Rear view camera) Model 205 with transmission 722.9 (except 722.930) up to model year 2019 with code 235 (Active Parking Assist) Model 205 with transmission 722.9 (except 722.930) up to model year 2019 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165AHE | |
| Model 205 with transmission 722.930 up to model year 2019 with code 218 (Rear view camera) Model 205 with transmission 722.930 up to model year 2019 with code 235 (Active Parking Assist) Model 205 with transmission 722.930 up to model year 2019 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165AIA | ||
| Model 205 with transmission 724.2 up to model year 2019 with code 218 (Rear view camera) Model 205 with transmission 724.2 up to model year 2019 with code 235 (Active Parking Assist) Model 205 with transmission 724.2 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) with transmission 724.2 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with transmission 724.2 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.99) with transmission 724.2 up to model year 2020 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165RFH | ||
| Model 253 (except 253.99) with transmission 725.0 up to model year 2020 with code 218 (Rear view camera) Model 253 (except 253.99) with transmission 725.0 up to model year 2020 with code 235 (Active Parking Assist) Model 253 (except 253.99) with transmission 725.0 up to model year 2020 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165ANI | ||
| Table of contents for function description of parking assistance systems | GF54.00-P-0997RF |
