Component Description For Reversing Camera Control Unit - GF54.65-P-5030RFM

Model 205, 253 (except 253.99)

with code 218 (Rear view camera)

except code 235 (Parking Pilot with PARKTRONIC)

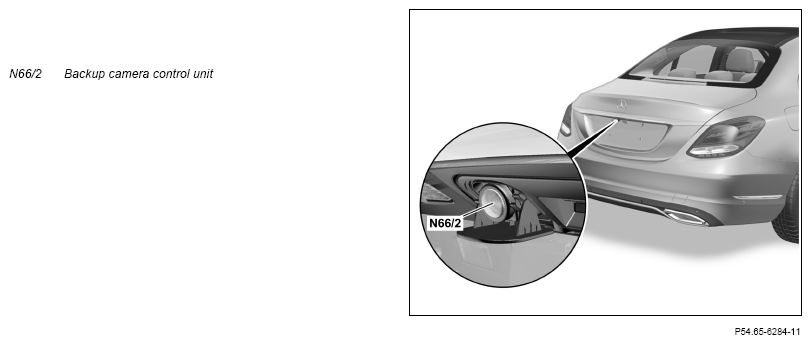

Shown on model 205.0 up to 01.03.2018

G15022195Courtesy of MERCEDES-BENZ USA

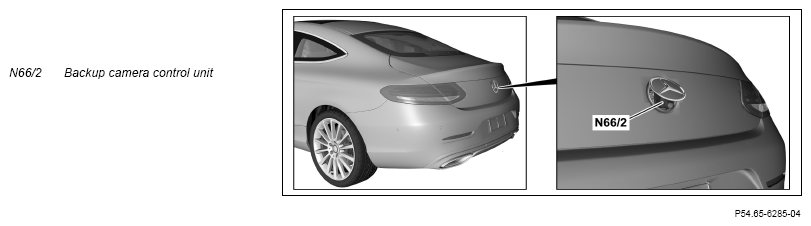

Shown on model 205.3 up to 01.03.2018

Fig 1: Reversing Camera Control Unit Component Location - Model 205 (Shown On Model 205.3 Up To 01.03.2018)
G15022196Courtesy of MERCEDES-BENZ USA

Location

The reversing camera control unit is located above the license plate number, in the handle strip of the trunk lid (model 205.0/1) or in the handle strip of the liftgate (model 205.2, model 253.1/9) or at the center behind the brand emblem (model 205.3/4, model 253.3).

Tasks

The reversing camera control unit has the following tasks:

Recording area to the rear of the vehicle

The reversing camera control unit is an optical parking aid. Its tasks include a surrounding field recording of the rear area, the generation of dynamic guide lines and the sending of the video picture to the head unit (A26/17). The pictures recorded by the reversing camera are processed accordingly and electronically corrected for distortion by the integrated control unit to be shown in the Audio/COMAND display (A40/8). The reversing camera is supplied with power by the rear SAM control unit (N10/8).

IMPORTANT The reversing camera is automatically calibrated by the integrated control unit.

Reading in of signals

The reversing camera control unit reads in, among other things, the following information via the user interface CAN (CAN HMI):

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor whereupon the relevant signals are then issued.

Output of signals

The signals are issued through the following connections:

Direct line

The reversing camera control unit sends the image data via a HSVL line (High-Speed Video Link) to the head unit.

User interface CAN

The reversing camera control unit sends, among other things, the following signals via the user interface CAN:

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Structure

The reversing camera control unit is a color picture camera with a wide-angle lens (angle of vision ∠ > 130°) and integrated control unit.

  Wiring diagram for backup camera control unit Model 205 as of model year 2019 with code 218 (Rear view camera) except code 235 (Parking Pilot with PARKTRONIC) Control unit N66/2 PE54.65-P-2102-97FBA
    Model 253 (except 253.99) as of model year 2020 with code 218 (Rear view camera) except code 235 (Parking Pilot with PARKTRONIC) Control unit N66/2 PE54.65-P-2102-97FCA
  Wiring diagram for reversing camera Model 205 up to model year 2019 with code 218 (Rear view camera) except code 235 (Parking Pilot with PARKTRONIC) Control unit B84/3Model 253 (except 253.99) with code 218 (Rear view camera) except code 235 (Parking Pilot with PARKTRONIC) Control unit B84/3 PE54.65-P-2103-97FBA
