Component Description For Fully Integrated Transmission Control Unit - GF27.60-P-5165AIA
TRANSMISSION 722.930 in MODEL 205

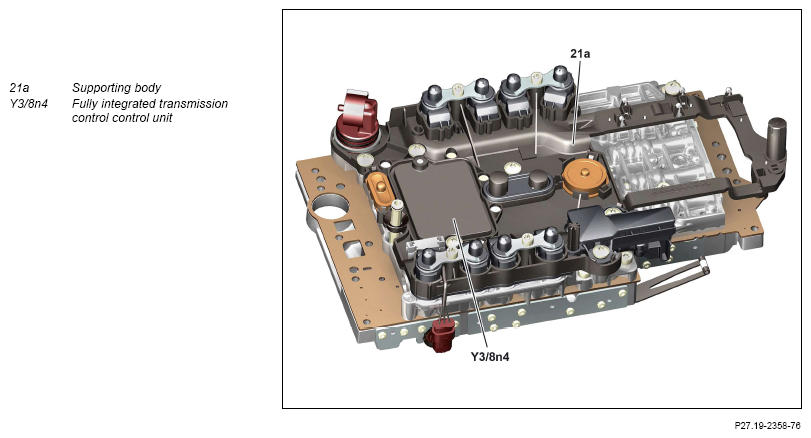

View of fully integrated transmission control controller unit (Y3/8) from left front
Location
The fully integrated transmission control unit is integrated in the fully integrated transmission control controller unit which is located in the oil pan at the bottom of the transmission.
Task
General
The fully integrated transmission control unit with its own independent diagnostic system determines the current operating condition of the vehicle and actuates all the gear change sequences, taking shift comfort and the driving situation into consideration, as well as the engagement of gear ranges "P", "R", "N", "D" and the operating time or rotational speed of the electric auxiliary oil pump (M42).
Flash programming
The transmission control system in the control unit for the fully integrated transmission control (VGS) is flashable i.e. the complete software in the control unit can be changed (replaced). The software required to program the control units is stored on the Xentry diagnostics update DVD.
CAN bus
The fully integrated transmission control unit is connected via the drive train CAN (CAN C1) to the vehicle's CAN network and exchanges data with other control units.
Input and output signals
The following input signals are evaluated by the fully integrated transmission control unit and the appropriate output signals are generated:
Reading in of sensors and signals
These input factors are read in via the following connections:
- Direct line
- Drive train CAN
Direct line
- Circuit 31
- Circuit 87 (switched circuit 15)
- Wet clutch oil pressure sensor (Y3/8b1)
- Turbine wheel rpm sensor (Y3/8n1)
- Rpm sensor for internal input speed (Y3/8n2)
- Output shaft rpm sensor (Y3/8n3)
- Selection range sensor (Y3/8s1)
- Transmission oil temperature sensor (Y3/8s2) (integrated into fully integrated transmission control unit)
Drive train CAN
Signals from
- Intelligent servo module for DIRECT SELECT (A80)
- ME-SFI control unit (N3/10)
- Automatic transmission fluid auxiliary oil pump control unit (N89)
- Powertrain control unit (N127)
Evaluation of input factors
The read-in input factors are evaluated by the fully integrated transmission control unit.
Actuation of components
The actuation of the components takes place via the following connections:
Direct line
- Working pressure control solenoid valve (Y3/8y1)
- Clutch control solenoid valve K1 (Y3/8y2)
- Clutch control solenoid valve K2 (Y3/8y3)
- Clutch control solenoid valve K3 (Y3/8y4)
- Multidisk brake control solenoid valve B1 (Y3/8y5)
- Multidisk brake control solenoid valve B2 (Y3/8y6)
- Multidisk brake control solenoid valve B3 (Y3/8y7)
- Wet clutch control solenoid valve (Y38y9)
Drive train CAN
Signal to
- Intelligent servo module for DIRECT SELECT
- ME-SFI [ME] control unit
- Transmission oil auxiliary oil pump control unit
- Drivetrain control unit
The powertrain control unit, the electronic ignition lock control unit (N73) and the head unit (A26/17) are interfaces (gateway) for exchanging function-relevant data between the control units that are connected to the different Controller Area Network (CAN) bus systems.
| Wiring diagram for fully integrated transmission control unit | PE27.19-P-2103-97FBA |
