Overview Of System Components, Adaptive Brake (ABR) - GF42.47-P-9997RF

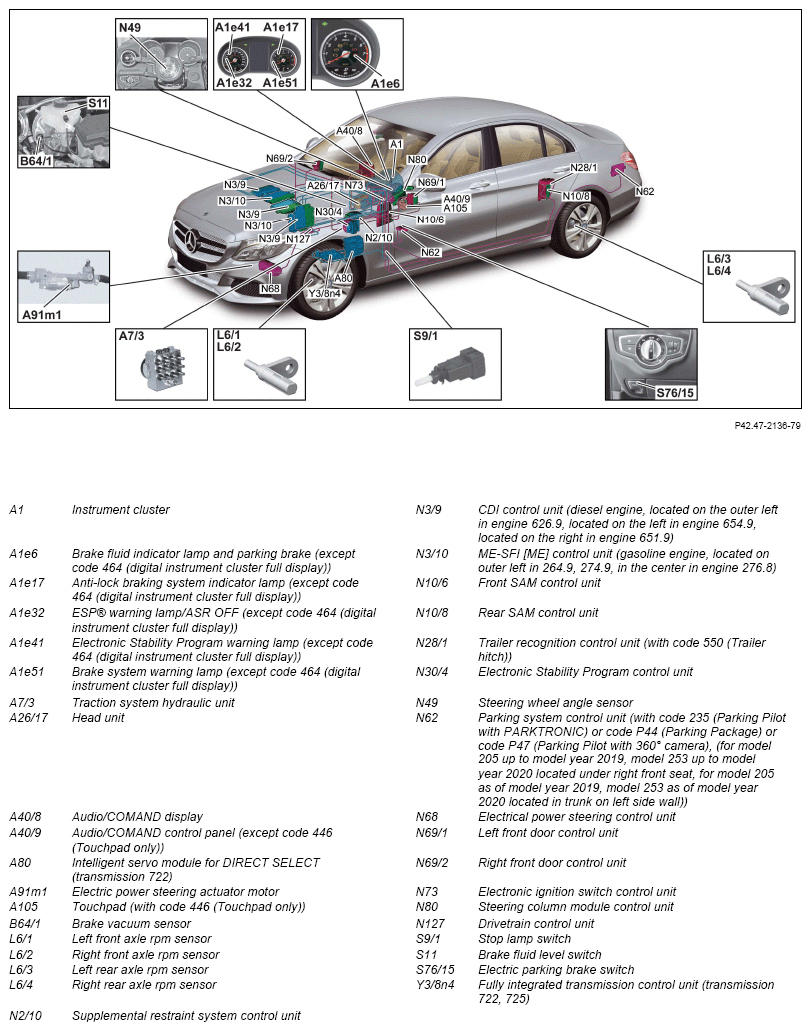

Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.311/354/911/954/99)
except AMG vehicles, shown on model 205.0
Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.311/354/911/954/99)
with code 464 (Instrument cluster 12.3" diagonal)
The indicator and warning lamps are shown as pictograms in the display.

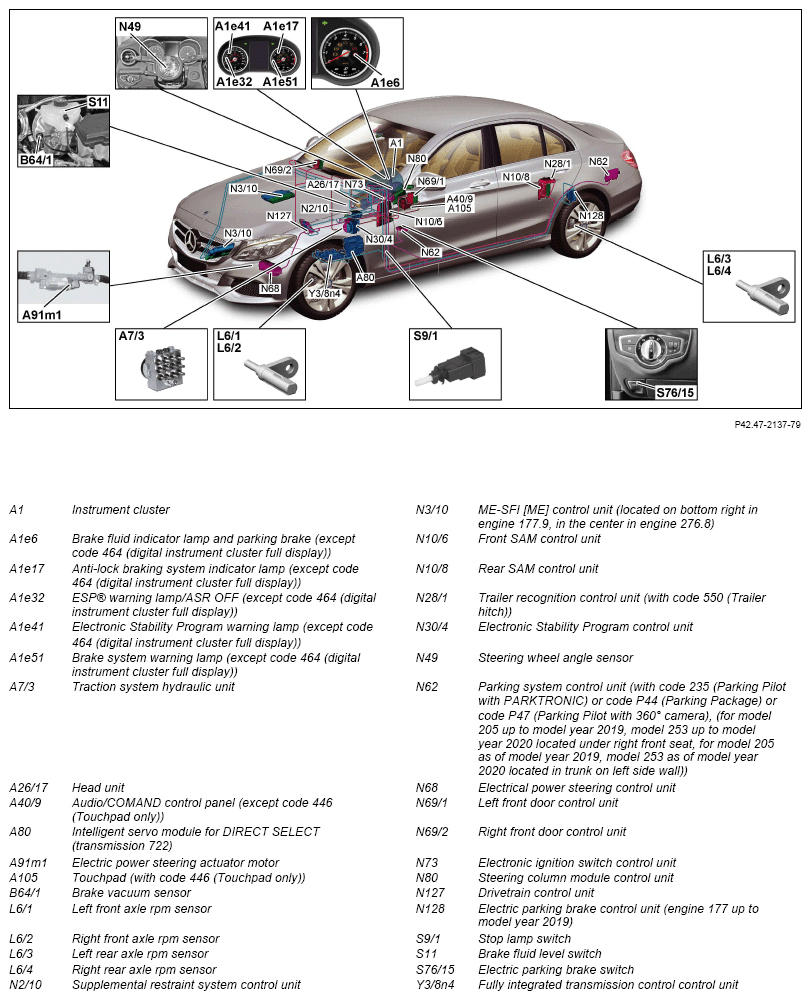

AMG vehicles, shown on model 205.0
Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.311/354/911/954/99)
with code 464 (Instrument cluster 12.3" diagonal)
The indicator and warning lamps are shown as pictograms in the display.

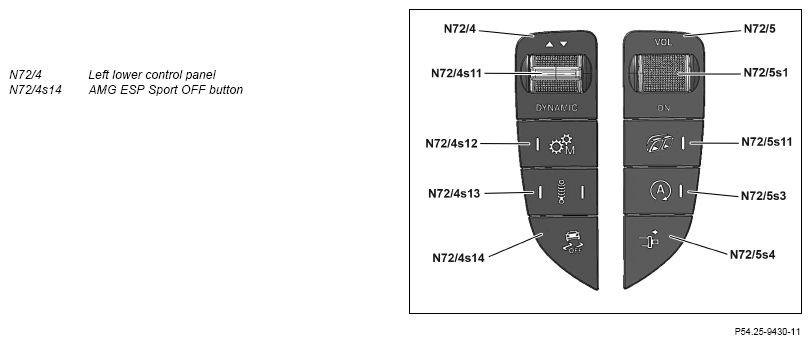

Lower control panel (AMG vehicles)

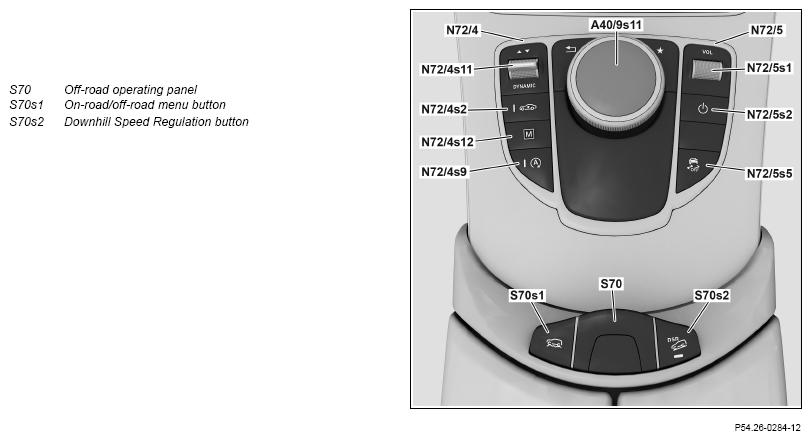

View of center console (model 253 with code 430 (Off-road package))
| Component Description For Instrument Cluster | A1 | GF54.30-P-6000RF | |
| Head Unit, Component Description | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2019 with code 520 (Audio 20 USB) except code 522 (Audio 20 Radio) except code 531 (Comand APS) Model 253 (except 253.311/354/911/954/99) up to model year 2020 with code 520 (Audio 20 USB) except code 522 (Audio 20 Radio) except code 531 (Comand APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2016 with code 522 (Audio 20 Radio) except code 520 (Audio 20 USB) except code 531 (Comand APS) Model 253 (except 253.311/354/911/954/99) up to model year 2020 with code 522 (Audio 20 Radio) except code 520 (Audio 20 USB) except code 531 (Comand APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 with code 506 (Audio 20 NTG 5.5 Radio) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with code 531 (Comand APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 Radio) Model 253 (except 253.311/354/911/954/99) with code 531 (Comand APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 Radio) A26/17 |
GF82.85-P-3140RFB | ||
| Model 253 (except 253.311/354/911/954/99) with code 547 (Connect 20 Entry (Ntg6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 Radio) except code 531 (Comand APS) Model 253 (except 253.311/354/911/954/99) with code 548 (Connect 20 Mid (Ntg6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 Radio) except code 531 (Comand APS) Model 253 (except 253.311/354/911/954/99) with code 549 (Connect 20 High (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 Radio) except code 531 (Comand APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component Description For Audio/Comand Display | A40/8 | GF54.30-P-6150RF | |
| Component Description For Audio/Comand Control Panel | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 except code 446 (Touchpad Only) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2019 Model 253 (except 253.311/354/911/954/99) up to model year 2020 A40/9 |
GF54.21-P-4501RF | |
| Component Description For Intelligent Servo Module For Direct Select | Model 205 with transmission 722.9 (except 722.930) A80 |
GF27.19-P-4020AHE | |
| Model 205 with transmission 722.930 A80 |
GF27.19-P-4020AIA | ||
| Touchpad, Component Description | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 with code 446 (Touchpad Only) Model 253 (except 253.311/354/911/954/99) as of model year 2020 with code 446 (Touchpad Only) A105 |
GF54.21-P-4511RF | |
| Supplemental Restraint System Control Unit, Component Description | N2/10 | Gf91.60-P-4080Rf | |
| Component Description For CDI Control Unit | Model 205 with engine 626 N3/9 |
GF07.16-P-6000ORB | |
| Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) Model 253 with engine 651.9 N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 253 (except 253.954) with engine 642.8 N3/9 |
GF07.16-P-6000OGY | ||
| Model 205 (except 205.013/213), 253 (except 253.311/911) with engine 654.9 Model 253 with engine 656.9 N3/9 |
GF07.16-P-6000ORF | ||
| Component Description For ME-SFI (ME) Control Unit | Model 205, 253 with engine 177.9 N3/10 |
GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 N3/10 |
GF07.61-P-6000MRA | ||
| Model 205, 253 with engine 276.8 N3/10 |
GF07.61-P-6000MMV | ||
| Model 205, 253 with engine 264.9 N3/10 |
GF07.61-P-6000MRS | ||
| Component Description For Front Sam Control Unit | N10/6 | GF54.21-P-7010RF | |
| Component Description For Rear Sam Control Unit | N10/8 | GF54.21-P-7030RF | |
| Component Description For Trailer Recognition Control Unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.311/354/911/954/99) with code 550 (Trailer Coupling) N28/1 |
GF31.19-P-4050RF | |
| Component Description For Electronic Stability Program Control Unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.311/353/354/911/953/954/99) N30/4 |
GF42.45-P-5119RF | |
| Parking System Control Unit Component Description | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2019 with code 235 (Active Parking Assist) Model 253 (except 253.311/354/911/954/99) up to model year 2020 with code 235 (Active Parking Assist) N62 |
GF54.65-P-5002RF | |
| Parking System Control Unit, Component Description | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 with code P44 (Parking Package) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 with code P47 (Parking Pilot with 360° Camera) Model 253 (except 253.311/354/911/954/99) as of model year 2020 with code P44 (Parking Package) Model 253 (except 253.311/354/911/954/99) as of model year 2020 with code P47 (Parking Pilot with 360° Camera) N62 |
GF54.65-P-5004RFM | |
| Electrical Power Steering Control Unit(Es), Component Description | N68 | GF46.35-P-7010RF | |
| Component Description For Left Front Door Control Unit | N69/1 | GF72.29-P-6001RF | |
| Component Description For Right Front Door Control Unit | N69/2 | GF72.29-P-6009RF | |
| Lower Control Panel, Component Description | N72/4 | GF54.25-P-4270RF | |
| Component Description For The Electronic Ignition Lock Control Unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2019 Model 253 (except 253.311/354/911/954/99) up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 Model 253 (except 253.311/354/911/954/99) as of model year 2020 N73 |
GF80.57-P-6001RFM | ||
| Component Description For Steering Column Tube Module Control Unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) up to model year 2019 Model 253 (except 253.311/354/911/954/99) up to model year 2020 N80 |
GF54.21-P-6051RF | |
| Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 Model 253 (except 253.311/354/911/954/99) as of model year 2020 N80 |
GF54.21-P-6051RFM | ||
| Drivetrain Control Unit, Component Description | Model 205 with engine 177.9 N127 |
GF54.21-P-2141MNA | |
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 N127 |
GF54.21-P-2141MRA | ||
| Model 205, 253 with engine 264.9 N127 |
GF54.21-P-2141MRS | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 Model 253 with engine 642.8 N127 |
GF54.21-P-2141OLD | ||
| Model 205 (except 205.013/213), 253 (except 253.311/911) with engine 654.9 Model 253 with engine 656.9 N127 |
GF54.21-P-2141ORH | ||
| Model 205, 253 with engine 276.8 N127 |
GF54.21-P-2141RF | ||
| Model 205 with engine 626 N127 |
GF54.21-P-2141ORB | ||
| Electric Parking Brake Control Unit, Component Description | Model 205, 253 with engine 177 up to model year 2019 N128 |
GF42.20-P-5005RF | |
| Component Description For Fully Integrated Transmission Control Unit | Model 205 with transmission 722.9 (except 722.930) Y38N4 |
GF27.60-P-5165AHE | |
| Model 205 with transmission 722.930 Y38N4 |
GF27.60-P-5165AIA | ||
| Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with transmission 725.0 (except 725.017) Y38N4 |
GF27.60-P-5165ANG | ||
| Model 253 (except 253.311/911) with transmission 725.0 Y38N4 |
GF27.60-P-5165ANI | ||
| Table Of Contents For Function Description, Adaptive Brake (ABR) | GF42.47-P-0999RF |
