Lower Control Panel, Component Description - GF54.25-P-4270RF
Model 205, 253

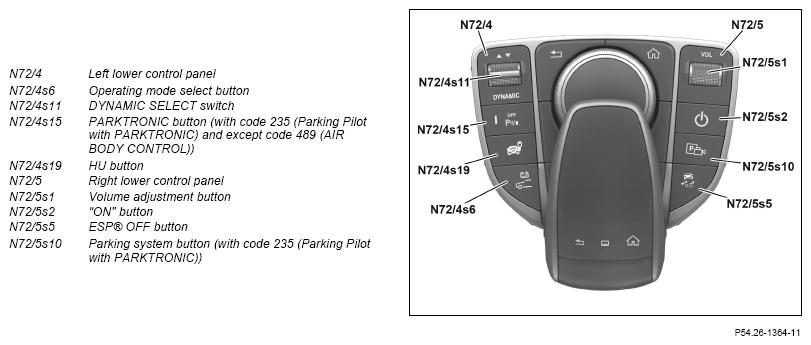

Shown on model 253.99

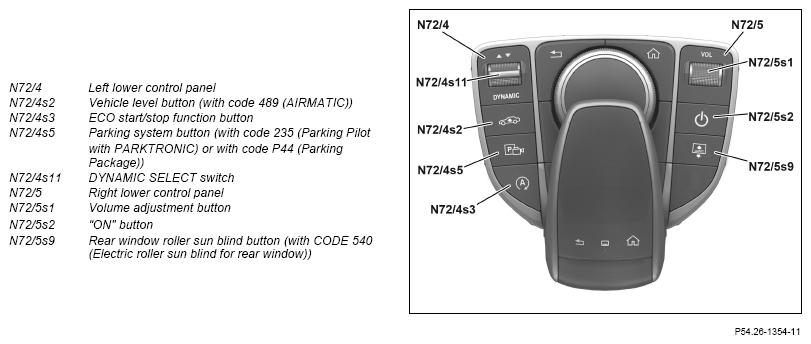

Shown on model 205 as of 02.03.2018 with code 448 (Touchpad), with automatic transmission, except hybrid vehicles

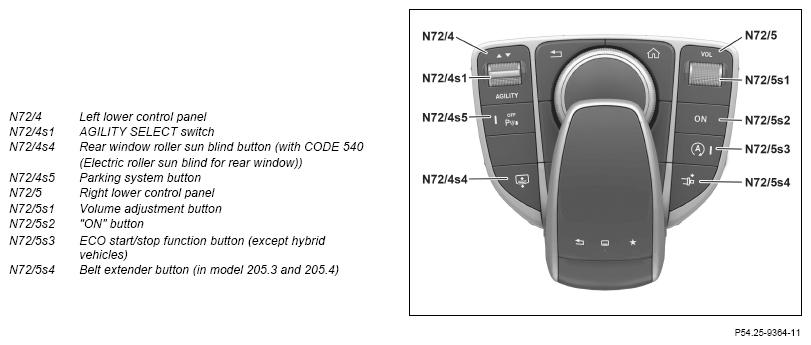

Shown on model 205 with code 489 (AIRMATIC), code 483 (ADVANCED AGILITY package), code 531 (COMAND APS) and automatic transmission up to model year 2016

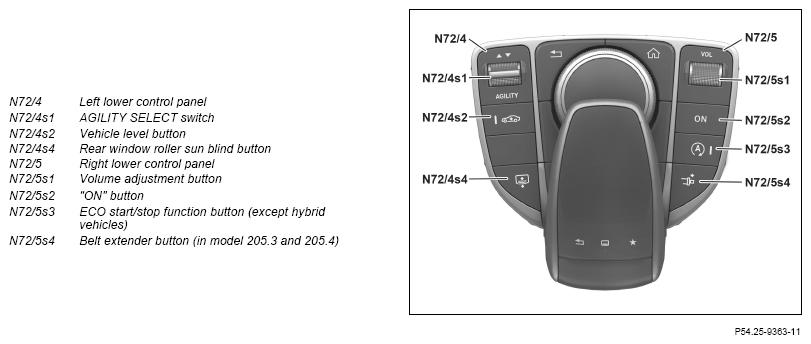

Shown on model 205 with code 531 (COMAND APS) and automatic transmission, without code 489 (AIRMATIC) and without code 483 (ADVANCED AGILITY package) up to model year 2016

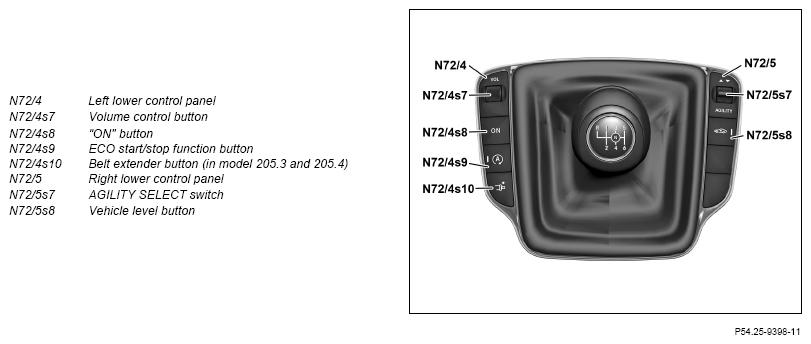

Shown on model 205 with code 489 (AIRMATIC), code 483 (ADVANCED AGILITY package) and manual transmission up to model year 2016

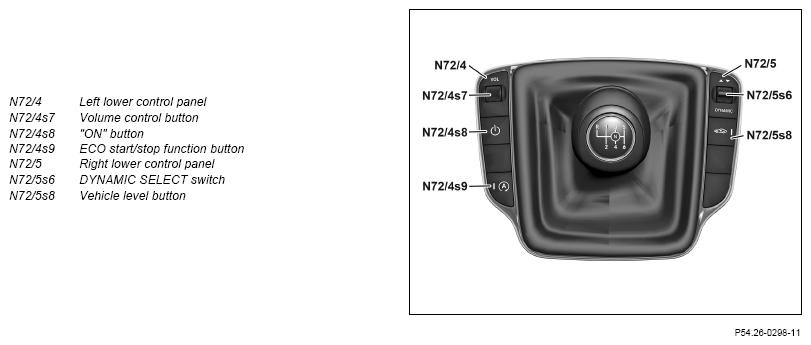

Shown on model 205 with code 489 (AIRMATIC), code 483 (ADVANCED AGILITY package) and manual transmission as of model year 2016

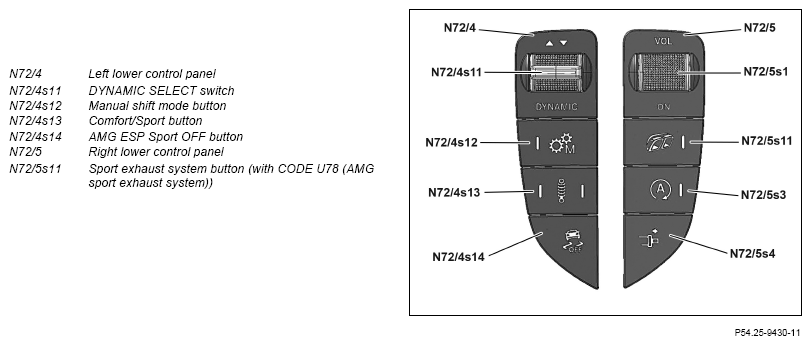

Shown on AMG vehicles with engine 177 up to model year 2016

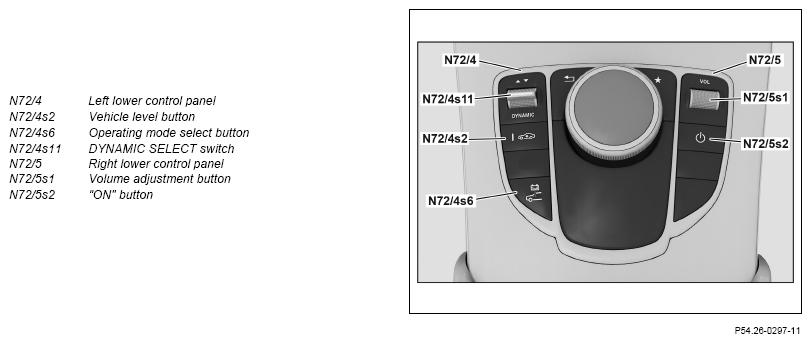

Shown on model 205 hybrid vehicles with code 489 (AIRMATIC), code 483 (ADVANCED AGILITY package) and automatic transmission as of model year 2016

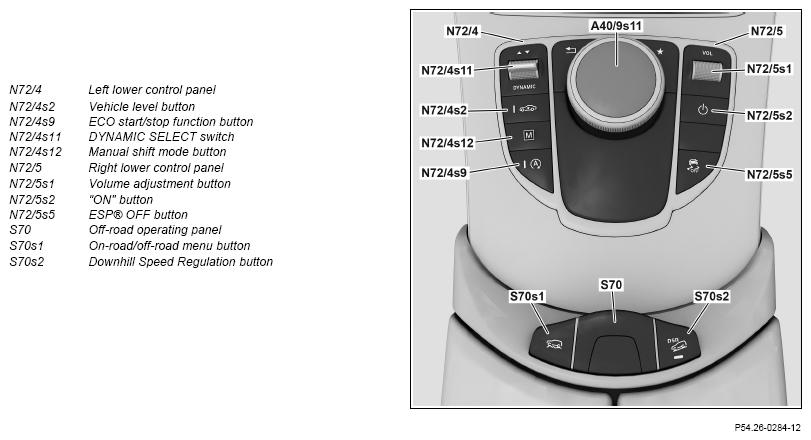

Shown on model 253 with code 430 (Offroad package) and automatic transmission
Location
The left lower control panel and the right lower control panel are installed in the center console.
Tasks
The following buttons can be installed in the left lower control panel, depending on the equipment specification:
- AGILITY SELECT switch (up to model year 2016, except AMG vehicles, except manual transmission)
- DYNAMIC SELECT switch (for AMG vehicles and as of model year 2016 in model 205/253 with automatic transmission)
- Vehicle level button (with automatic transmission and for model 205 with code 489 (AIRMATIC) or for model 253 with code 489 (AIR BODY CONTROL))
- Rear window roller sunblind button (with manual transmission and with code 540 (Electric roller sunblind for rear window))
- Parking system button (with automatic transmission and with code 235 (Parking Pilot with PARKTRONIC))
- PARKTRONIC button (N72/4s15) (model 205 with automatic transmission as of 02.03.2018, model 253.99 with code 235 (Parking Pilot with PARKTRONIC) and except code 489 (AIR BODY CONTROL))
- Volume adjustment button (with manual transmission)
- "ON" button (with manual transmission)
- ECO start/stop function button (except hybrid vehicles)
- Operating mode selection button (on model 253.99 or for hybrid vehicles)
- Seat belt extender button (model 205.3/4 with manual transmission)
- Manual shift mode button (with AMG vehicles)
- Comfort/Sport button (up to model year 2016 with AMG vehicles)
- HU button (for model 253.99)
The following buttons can be installed in the right lower control panel, depending on the equipment specification:
- AGILITY SELECT switch (up to model year 2016, except AMG vehicles, except automatic transmission)
- DYNAMIC SELECT switch (as of model year 2016 in model 205 with manual transmission)
- Rear window roller sunblind button (with automatic transmission and with code 540 (Electric roller sunblind for rear window))
- Volume adjustment button (with automatic transmission)
- "ON" button (with automatic transmission)
- ECO start/stop function button (up to model year 2016 except hybrid vehicles)
- Seat belt extender button (model 205.3/4 with automatic transmission)
- Vehicle level button (model 205 with manual transmission and with code 489 (AIRMATIC))
- Parking system button (model 205 with manual transmission and with code 235 (Parking Pilot with PARKTRONIC))
- PARKTRONIC button (N72/5s15) (model 205 with manual transmission as of 02.03.2018 with code 235 (Parking Pilot with PARKTRONIC) and except code 489 (AIRMATIC))
- Sport exhaust system button (up to model year 2016 with code U78 (AMG Sport exhaust system))
- ESP® OFF button (model 253 with automatic transmission)
The signals from all the buttons are read in by the left lower control panel and the right lower control panel and read in over the LCP LIN (LIN A3), Audio/COMAND control panel (A40/9), telematics CAN (CAN A) and the head unit (A26/17) and then sent to the user interface CAN (CAN HMI).
| Wiring diagram for touch pad | Model 253.99 as of model year 2019 with code ME02 (Fuel cell) A105 | PE82.00-P-2061-97FCA | |
| Model 205 as of model year 2019 with code 446 (Touchpad only) except code 448 (Touchpad) | PE82.00-P-2061-97FBB | ||
| Model 205 up to model year 2019 with code 522 (Audio 20 radio) with code 531 (COMAND APS) Control unit A105Model 253 with code 522 (Audio 20 radio) with code 531 (COMAND APS) Control unit A105 | PE82.00-P-2061-97FBA | ||
| Wiring diagram for Audio/COMAND control panel | Model 205 as of model year 2019 with code 448 (Touchpad) Operating unit A40/9 | PE82.00-P-2063-97FBA |
