Remove/Install Side Paneling In Rear - AR68.30-P-4780CLW
Model 205.3

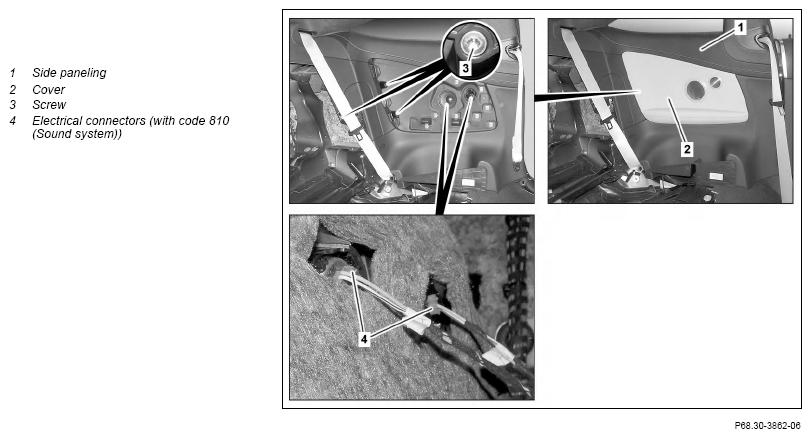

Shown on left side of vehicle
| Remove/install | |||
| 1 | Remove door sill molding | AR68.30-P-4100CLW | |
| 2 | Remove backrest in rear | AR91.12-P-1720LW | |
| 3 | Remove side upholstery | AR91.12-P-1710LW | |
| 4 | Unclip cover (2) and remove | Fig 2 | |
| 5 | Remove bolts (3) | ||
| 6 | Unclip side paneling (1) and remove | Model 205.3 except code 810 (Sound system) |
|
| 7 | Loosen side paneling (1) until electrical connectors (4) are accessible | Model 205.3 with code 810 (Sound system) Carefully loosen left and right side paneling (1). Otherwise the electrical connectors (4) can be damaged. |
|
| 8 | Disconnect electrical connectors (4) and remove side paneling (1) | Model 205.3 with code 810 (Sound system) |
|
| 9 | Install in the reverse order |
