Remove/Install Folding Rear Seat - AR91.12-P-1720LW

Model 205.0/1, 213.0

with code 287 (Through-loading feature)

Model 205.2/3

Model 213.2

Model 253 (except 253.992/993), 293

Courtesy of MERCEDES-BENZ USA

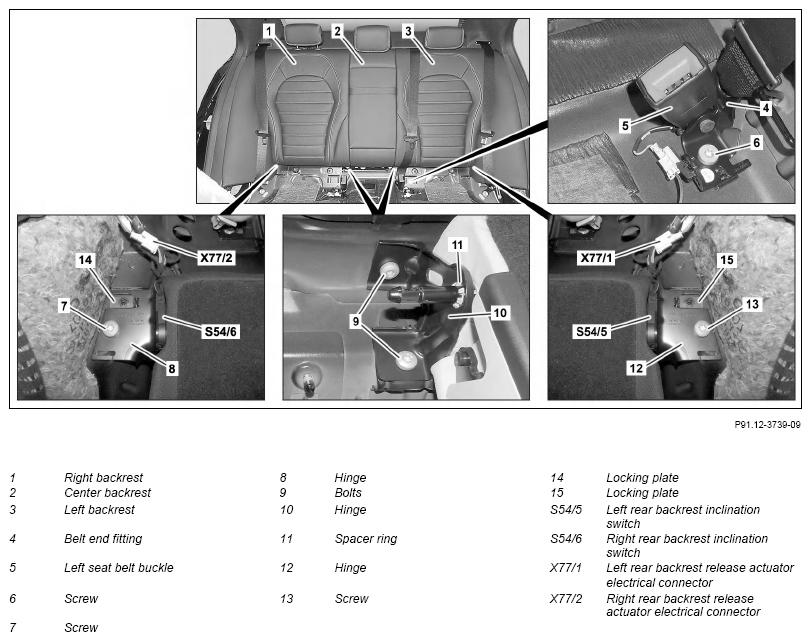

Shown on model 205.1 with code 872 (Seat heating in rear passenger compartment)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove left and right seat side bolster.	Model 205.0/1, 213.0 with code 287 (Through-loading feature) Model 205.2/3 Model 213.2
		Model 205.0/1, 213.0 with code 287 (Through-loading feature) Model 205.2/3	AR91.12-P-1710LW
		Model 213.2	AR91.12-P-1711LWT
1.2	Remove rear passenger compartment seat cushion.	Model 253 (except 253.992/993), 293	AR91.12-P-1020LW
2	Move driver seat and front passenger seat to foremost position.

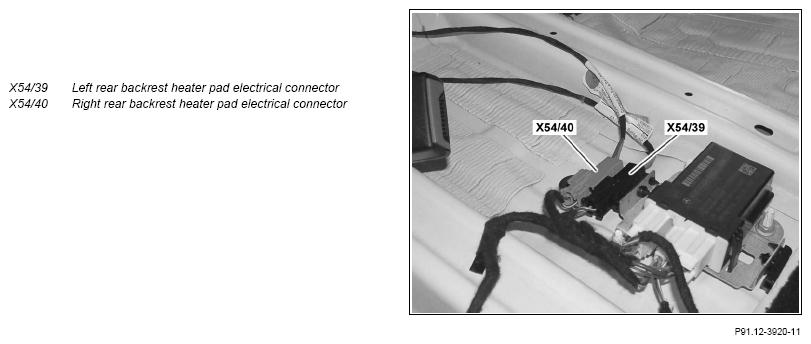

3	Disconnect and unclip electrical connector of rear passenger compartment seat backrest heater pad (X54/39, X54/40).	Model 205.1, 213.0 with code 287 (Through-loading feature) with code 872 (Left and right rear seat heating) Model 213.2, 253 (except 253.992/993), 293 with code 872 (Left and right rear seat heating)
4	Release right seat backrest (1), center seat backrest (2) and left seat backrest (3) and fold forward.
5	Disconnect electrical connector at right rear passenger compartment seat backrest inclination switch (S54/6) and take electrical wiring harness out of working area.
6	Disconnect electrical connector for rear passenger compartment seat backrest release actuator (X77/2, X77/1).	Model 205.2, 253 (except 253.992/993), 293
7	Fold back left seat backrest (3).
8	Unscrew bolt (7).	Bolt, outer pivot bearing to body	*BA91.12-P-1003-03M
9	Remove lock washer (14).	Model 205.2/3, 213.2 Model 253 (except 253.992/993), 293 Replace lock washer (14).
10	Pull right seat backrest (1) off center seat backrest (2) and remove.	Do not tilt right backrest (1). Otherwise, the spacer ring in the right seat backrest (1) may be damaged.
11	Remove screws (9) at pivot bearing (10) of center seat backrest (2).	Model 253.953/954 The pivot bearing (10) is only connected with one screw/bolt (9) at the crossbar.
		Bolt, center pivot bearing to body	*BA91.12-P-1004-03M
12	Guide pivot bearing (10) out of crossbar and from center seat backrest (2) at same time.	Model 253.953/954 Do not tilt pivot bearing (10). Otherwise, the spacer ring (11) in the pivot bearing (10) may be damaged.
13	Detach center seat backrest (2) from left seat backrest (3) and remove.	Do not tilt center seat backrest (2). Otherwise the spacer ring in the center seat backrest (2) could be damaged.
14	Remove screw (6), place left seat belt buckle (5) to one side and guide seat belt end fitting (4) upward.	Model 205.0/1, 213.0 with code 287 (Through-loading feature) Model 205.2, 213.2, 253 (except 253.992/993), 293
		Ensure correct installation position.
		Bolt/nut for rear belt buckle	*BA91.40-P-1009-01U
15	Release left seat backrest (3) and fold forwards.	When removing the left seat backrest (3), always start with the right seat backrest (1) and then remove the center seat backrest (2). Otherwise, the spacer ring (11) in the pivot bearing (10) of the left seat backrest (3) may be damaged.
16	Remove screws (9) from pivot bearing (10) of left seat backrest (3).	Bolt, center pivot bearing to body	*BA91.12-P-1004-03M
17	Remove bolt (13).	Bolt, outer pivot bearing to body	*BA91.12-P-1003-03M
18	Remove lock washer (15).	Model 205.2/3, 213.2 Model 253 (except 253.992/993), 293 Replace lock washer (15).
19	Disconnect electrical connector at left rear passenger compartment seat backrest inclination switch (S54/5) and take electrical wiring harness out of working area.
20	Remove left seat backrest (3).	Do not tilt the pivot bearings (10, 12). Otherwise, the spacer ring in the left seat backrest (3) and the spacer ring (11) in the pivot bearing (10) may be damaged.
21	Install in the reverse order
