Remove/Install Front Seat - AR91.10-P-1000LWR

Model 205.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Switch on ignition.
2	Completely open soft top.
3	Move steering column to foremost and topmost position.	When removing driver seat.
4	Adjust front seat (1) forward.

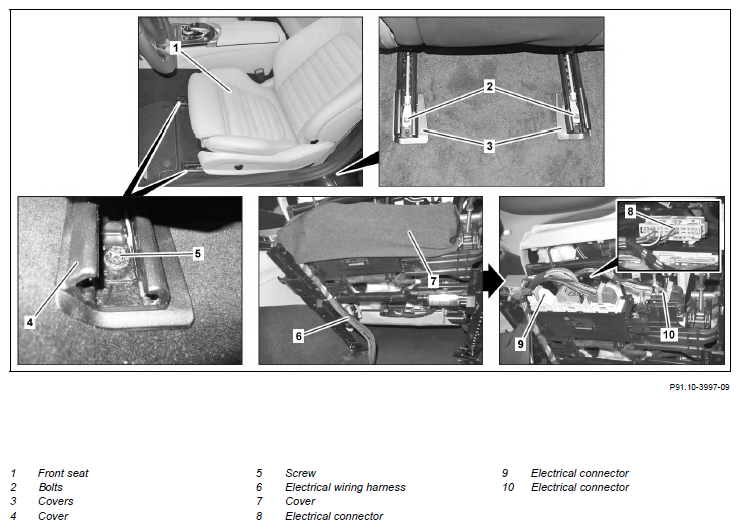

5	Unscrew bolts (2).	Bolt, front seat to vehicle floor	*BA91.10-P-1001-01T
6	Move front seat (1) to the rear and all the way down.
7	Remove bolts (5).	Bolt, front seat to vehicle floor	*BA91.10-P-1001-01T
8	Disconnect ground line from battery.		AR54.10-P-0003LW
9	Tilt back front seat (1).
10	Remove cover (7).
11	Unclip electrical wiring harness (6) at seat frame.
12	Disconnect electrical connectors (8, 9, 1)	The quantity depends on the vehicle equipment.
13	Cover center console, steering wheel, door entry sill and door sill.
14	Remove front seat (1) from vehicle, put down and secure to prevent it from tipping over.	Carefully remove front seat (1) from vehicle. Otherwise vehicle components may be damaged. Helper required. Ensure that lock pins of guide rails in vehicle floor are seated correctly. Ensure that covers (3, 4) are seated correctly.
15	Remove covers (3, 4).	When carrying out other work on the front seat (1).
16	Install in the reverse order

FRONT SEATS

Number	Designation		Model 205
BA91.10-P-1001-01T	Bolt, front seat to vehicle floor	Nm	50
