Remove/Install Side Supplemental Restraint System (SRS) Pressure Sensor - AR91.60-P-0760LW
Model 205
Model 213
Model 238
Model 253
Model 293
Shown on left front door on model 205.0

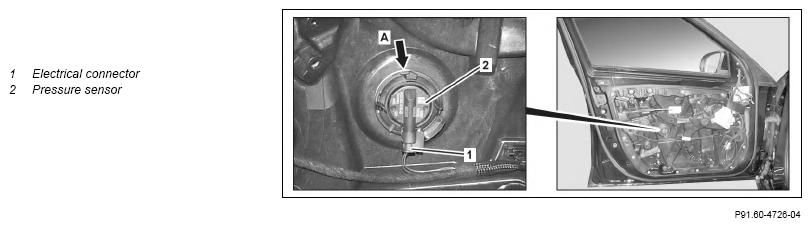

Fig 1: Supplemental Restraint System (SRS) Pressure Sensor Component Location - Model 205 (Shown On Model 205.0)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect ground line from on-board electrical system battery. | Model 205, 213, 253 | AR54.10-P-0003LW |
| Model 238 | AR54.10-P-0003LWO | ||
| Model 293 | AR54.10-P-0003EQ | ||
| 2.1 | Remove door lining from the front door. | When removing pressure sensor (2) from front door. | |
| Model 205, 213, 253, 293 | AR72.10-P-1000LW | ||
| Model 238 | AR72.10-P-1000LWO | ||
| 2.2 | Remove door lining from the rear door. | Model 205.0/1/2, 253 with code 298 (Rear sidebag with belt force limiter) Model 213 with code 293 (Sidebag in rear left and right) When removing pressure sensor (2) from rear door. |
|
| AR72.12-P-1010LW | |||
| 3 | Disconnect electrical connector (1). | ||
| 4 | Lift tab (arrow A), rotate respective pressure sensor (2) counterclockwise through 90° and remove. | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | When replacing the pressure sensor (2). | |
| Model 205, 213, 253 | AD00.00-P-2000-04B | ||
| Model 238 | AD00.00-P-2000-06LWO | ||
| Model 293 | AD00.00-P-2000-06FR |
