Remove/Install Rear Door Lining - AR72.12-P-1010LW

Model 205.0/1/2

Model 213

Model 253

Model 293

G14805617

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0 except code 810 (Sound-System)

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Completely open rear door.
2	Unscrew bolts (2).

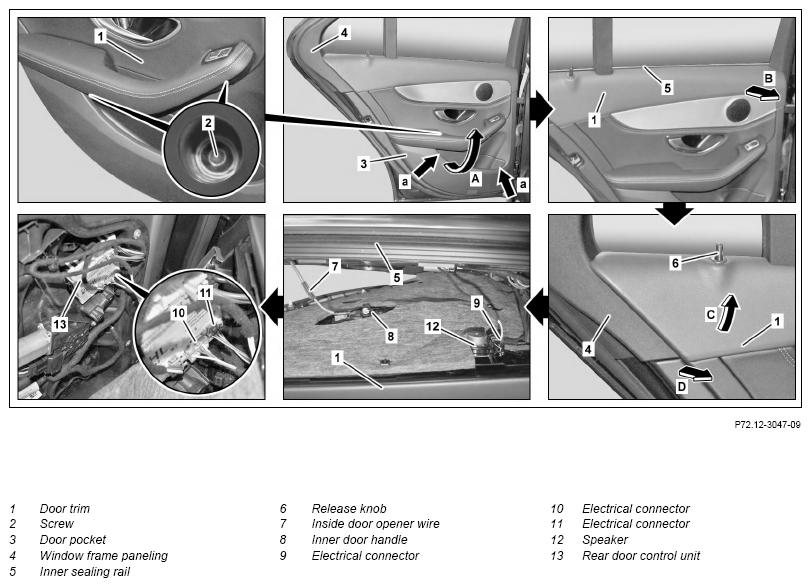

3	At front and rear, reach into outermost area (arrows a) of door stowage compartment (3) and release door trim (1) from rear door by pulling with a jerk.	Detach door trim (1) by hand. Door trim (1) can be damaged if a tool is used. Hold rear door in position when pulling door trim. Aid of helper required.
4	Unclip remaining retaining clips of door trim (1) up to inner sealing rail (5) (arrow A).
5.1	Remove roller sunblind at drive.	Model 213.1 with code 297 (Roller sun blinds in rear doors)	AR72.12-P-1010-01LWV
5.2	Move side window to lowest position.	Model 205.0/1/2, 213 (except 213.1), 253, 293 Model 213.1 except code 297 (Roller sun blinds in rear doors)
6	Switch off ignition.
7	Remove door trim (1) starting at front up to height of release knob (6) from inner sealing rail (5) (arrow B).	Carefully pull out door trim (1). Otherwise the door trim (1) or the inner sealing rail (5) can be damaged.
8	Move out door trim (1) upwards (arrow C) and remove from rear door until electrical connectors (10, 11) at rear door control unit (13) and inside door opener wire (7) can be accessed.	Lift off door trim (1) in area of door lock from rear door (arrow D) until it can be removed upwards over window frame lining (4).
9	Detach inside door opener wire (7) at inside door handle (8).
10	Release and disconnect electrical connector (9) at speaker (12).
11	Release and disconnect electrical connector at tweeter.	Model 205.0/1/2, 213, 253, 293 with code 810 (Sound system) Model 213 with code 811 (Advanced sound system)
12	Release and disconnect electrical connectors (10, 11) at rear door control unit (13).	Model 213.1 with code 297 (Roller sun blinds in rear doors) Do not yet connect electrical connector of roller sun blind motor. The number of electrical connectors varies depending on equipment installed.
13	Remove door trim (1).
14	Install in the reverse order.
