Replace Spare Tire Well - Ar64.20-P-1245LW
Model 205.0/1/2/3
SPARE TIRE WELL MODIFICATION NOTES (Model 205.0/1/2/3)
| 26.05.2021 | Repair materials reference BR00.45-Z-1049-02A replaced by BR00.45-Z-1104-02A and BR00.45-Z-1180-02A. | Operation steps 3, 4 |

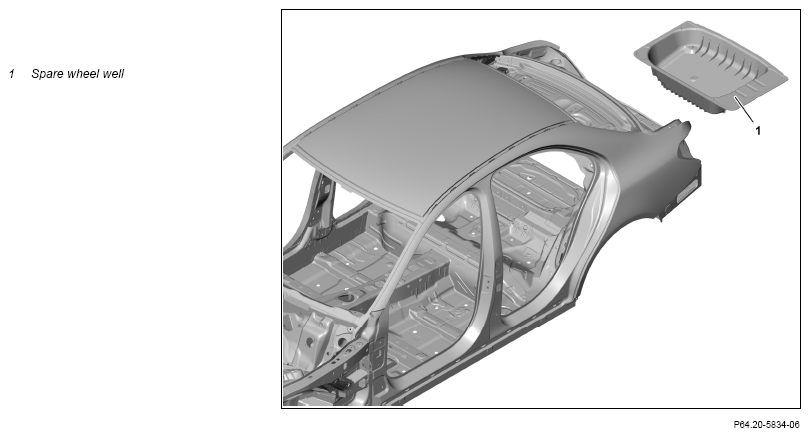

Shown on model 205.0
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A . | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A . | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A . | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A . | |
| Notice | Notes on battery | AH54.10-P-0001-01A . | |
| Notice | General information on body repair | AH60.00-N-0001-01A . | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX . | |
| General information on MB materials | AH98.00-P-9409-03A . | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Remove spare wheel well (1). | Fine cutter Wet/dry vacuum cleaner |
AR64.20-P-1245-01LW . |
| Primer stick | *BR00.45-Z-1012-07A . | ||
| 3 | Prepare spare wheel well (1). | AR64.20-P-1245-02LW . | |
| Repair kit for installing windshields, 1-component adhesive | *BR00.45-Z-1180-02A . | ||
| SIKA primer 209, 250 ml | *BR00.45-Z-1104-02A . | ||
| Install | |||
| 4 | Install spare wheel well (1). | AR64.20-P-1245-03LW . | |
| Repair kit for installing windshields, 1-component adhesive | *BR00.45-Z-1180-02A . | ||
| SIKA primer 209, 250 ml | *BR00.45-Z-1104-02A . | ||
| 5 | Clean repair area. | Wet/dry vacuum cleaner |
|
| 6 | Install all detachable parts in area of repair point. |
SPARE WHEEL WELL REPAIR MATERIALS (Model 205.0/1/2/3)
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-07A | Primer stick | A 000 986 27 50 |
| BR00.45-Z-1104-02A | SIKA primer 209, 250 ml | A 009 989 75 71 09 |
| BR00.45-Z-1180-02A | Repair kit for installing windshields, 1-component adhesive | A 000 989 49 05 |
