Prepare Spare Tire Well - Ar64.20-P-1245-02LW

Model 205.0/1/2/3, 212.0/1, 218, 238.3

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

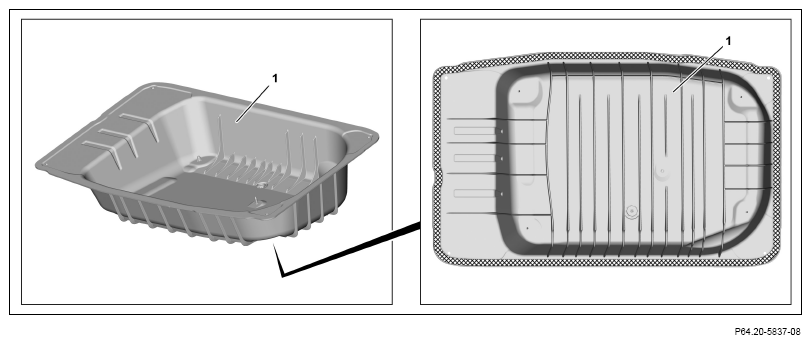

Shown on model 205.0

1. Clean bonding surface on spare wheel well (1) in cross hatched area and prime.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
