Install Spare Tire Well - Ar64.20-P-1245-03LW
Model 205.0/1/2/3, 238.3
The higher-level service document as well as the safety information in the service document must be observed.
 Courtesy of MERCEDES-BENZ USA
|
Shown on model 205.0

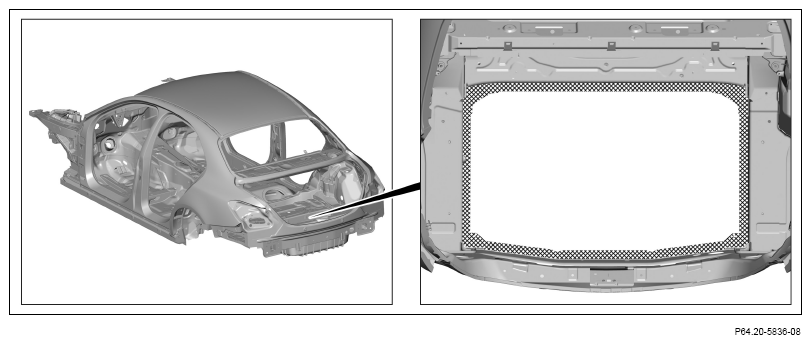

- Apply 2-component adhesive to crosshatched area of body.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
 Courtesy of MERCEDES-BENZ USA
|
Shown on model 205.0

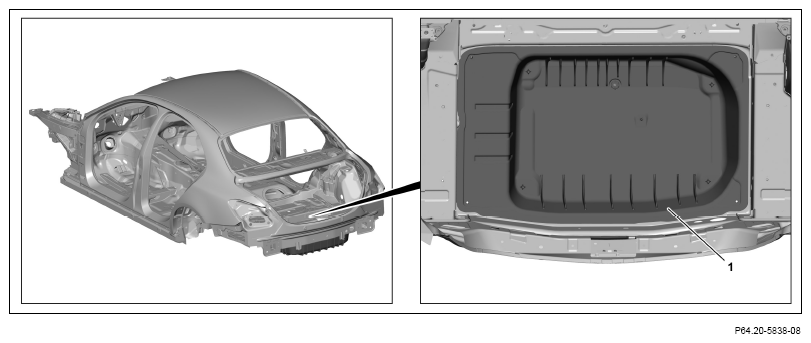

- Install spare wheel well (1) and align.
