Retrofit CA Module Card Reader - AZ82.60-P-0032LWR
Model 205.4
with Code 197 (DVB-T2 conversion with ext. card reader/HD-TV Korea)
with Code 865 (Digital TV)
except Code 835 (South Korea Version)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Remove rear center assembly paneling | ||
| AR68.30-P-4785LW | |||
| 2 | Remove trunk recess cover | ||
| Install | |||

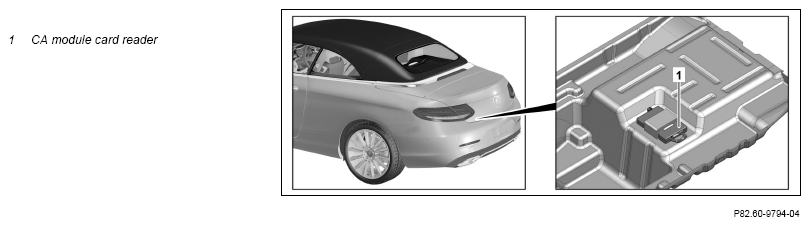

| 3 | Install electrical wiring harness for CA Module Card reader (1) | AZ82.60-P-0032-01LWR | |
| 4 | Retrofit bracket for CA Module Card reader (1) | AZ82.60-P-0032-02LWR | |
| 5 | Position trunk recess trim in trunk, while guiding electrical wiring harness for CA Module Card reader (1) through previously drilled hole | ||
| 6 | Install luggage compartment well cover | ||
| 7 | Connect electrical wiring harness to CA Module Card reader (1) for TV Tuner | ||
| 8 | Fasten CA Module Card reader (1) on bracket | ||
| 9 | Install rear center section paneling | ||
| AR68.30-P-4785LW | |||
| Update Vehicle Documentation (VeDoc) | |||
| 10 | Enter special equipment in on-line vehicle data card | Code 381 (CI+BOX card reader for DVB-T2 standard) |
|
| 11 | Attach note "CA Module Card reader retrofitted as per AZ82.60-P-0032LWR" under field organization texts to design group 82 | ||
| 12 | Connect diagnostic system and select vehicle via the vehicle identification number (VIN) | ||
| AD00.00-P-2000-04B | |||
| 13 | Carry out variant coding using software calibration number (SCN) | TV Tuner CA Module Card reader (1) can only be operated in temperature range from 0 to 50 °C. Outside of this temperature range, the CA Module Card reader (1) shuts off automatically. |
|
| 14 | Disconnect diagnostic system | ||
| AD00.00-P-2000-04B | |||
| Check | |||
| 15 | Perform function test |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (refer to EPC) | CA Module Card reader parts kit | 1 |
