Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600WA
Transmission 725.0 in model 172 with engine 276.8

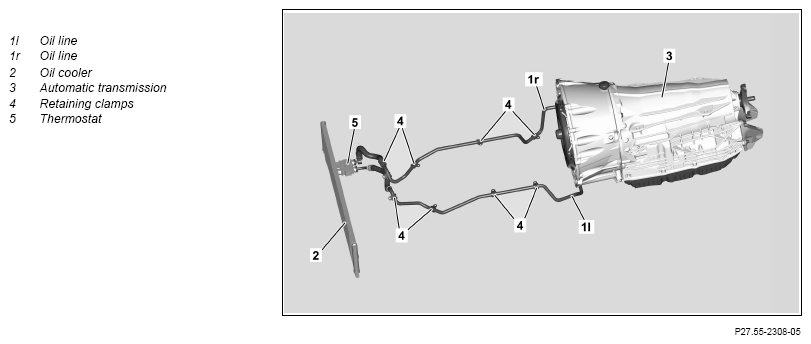

Fig 1: Oil Lines Of Oil Cooling For Automatic Transmission Components Location - Transmission 725.0 In Model 172 With Engine 276.8
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Set selector lever to position N | ||
| 2 | Secure vehicle on vehicle lift | AR00.60-P-0100T | |
| 3 | Remove bottom engine compartment paneling | AR61.20-P-1105W | |
| 4 | Remove right catalytic converter | AR49.10-P-5503WA | |
| 5 | Remove right-side oxygen sensors wiring harness bracket | ||
| 6 | Thoroughly clean area around oil lines (1l, 1r) at oil cooler (2) | ||
| 7 | Detach retaining clamps (4) from oil lines (1l, 1r) | *BA27.55-P-1004-01D | |
| 8 | Unfasten oil lines (1l, 1r) from thermostat (5) | AR27.10-P-0501-03CW | |
| 9 | Detach oil lines (1l, 1r) from automatic transmission (3) and seal using suitable stop plugs | AR27.10-P-0501-03CW | |
| *BA27.55-P-1002-01D | |||
| Fig 2 | |||
| 10 | Pull oil lines (1l, 1r) out of thermostat (5) and seal openings with suitable plugs | AR27.10-P-0501-03CW | |
| Fig 2 | |||
| 11 | Remove oil lines (1l, 1r) toward rear | ||
| 12 | Install in the reverse order | ||
| 13 | Check oil level in automatic transmission (3) and correct | AR27.00-P-0270EWN | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 14 | Perform engine test run and check automatic transmission (3) for proper operation and leaktightness |
OIL COOLING
| Number | Designation | Transmission 725.0 | |||
|---|---|---|---|---|---|
| BA27.55-P-1002-01D | Bolt, oil line to transmission housing | Banjo bolt | Stage 1 | Nm | - |
| Stage 2 | ∠° | - | |||
| Hexalobular bolt | Nm | 12 | |||
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1004-01D | Bolt, clamp to oil line | Nm | 8 |
