(Remove/Install And Set Shift Rod - AR27.60-P-0990VA)

TRANSMISSION 722.6/9 in MODEL 171

TRANSMISSION 722.9 in MODEL 172

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Move selector lever to position "D".
2	Raise vehicle with vehicle lift	The vehicle must be horizontal.	AR00.60-P-1000V
3	Remove rear diagonal struts	Only tighten bolts of diagonal struts when the vehicle is on its wheels in the curb condition.
			*BA61.10-P-1005-01A
4	Lower exhaust system as far as possible until the heat shield can be shoved to the rear	Transmission jack 0.5 t	AR49.10-P-7140-04VA
		Lubricant paste	*BR00.45-Z-1002-06A
		Assembly tool (for engine 271 in model 172)	Fig 1
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A

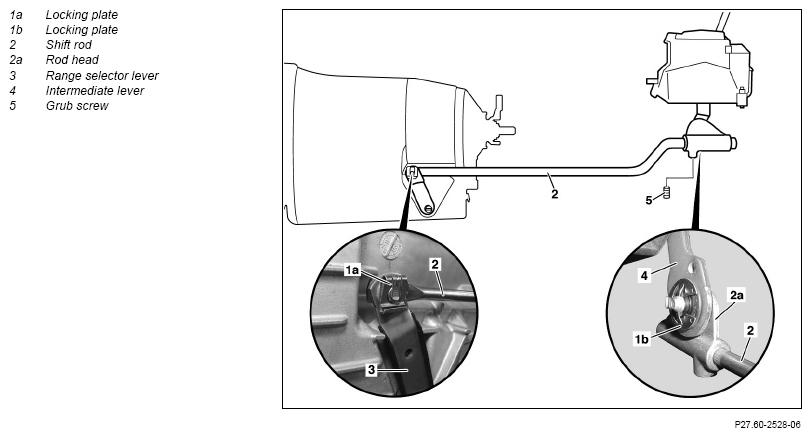

5	Release heat shield and slide to rear until the locking plate (1b) is accessible	The shift rod (2) must be adjusted before installing the heat shield.
		Model 171 Model 172	AR49.00-P-1000-02VA
6	Unclip locking plate (1a) using a screwdriver and unhook shift rod (2) from range selector lever (3)	Replace locking plate (1a).
7	Detach shift rod (2) from below at intermediate lever (4)	Model 171 Note locking plate variants.
	Gearshift rod locking plate on intermediate lever changed		BT27.60-P-0021-01A
8	Take out shift rod (2)
9	Install in the reverse order
	Adjust
10	Remove grub screw (5) from gearshift head (2a)
11	Check that range selector lever (3) and intermediate lever (4) are in correct position.	Range selector lever (3) and intermediate lever (4) must be in position "D".
12	Screw new grub screw (5) into gearshift head (2a)	Counterhold the head (2a) when tightening the grub screw (5). Do not move range selector lever (3) and intermediate lever (4) from position "D".
			*BA27.60-P-1001-04A
13	Perform function test

TIGHTENING TORQUES FOR SHIFT ROD

Number	Designation			Transmission 722.6	Transmission 722.9
BA27.60-P-1001-04A	Bolt in rod head	M8X10	Nm	12	12

FRAME FLOOR ASSEMBLY

Number	Designation		Model 171	Model 172
BA61.10-P-1005-01A	Self-locking bolt, rear diagonal strut to frame floor	Nm	60	60

Fig 1: Identifying Assembly Tool (651 589 06 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
