Remove/Install Radiator - AR20.20-P-3865WA
Engine 276.8 in model 172
Shown on right-hand side
| Remove/install | |||
| 1 | Remove fan unit | AR20.40-P-5050WA | |
| 2 | Drain coolant from low-temperature circuit | AR09.41-P-6834RKA | |
| 3 | Remove left cover | ||

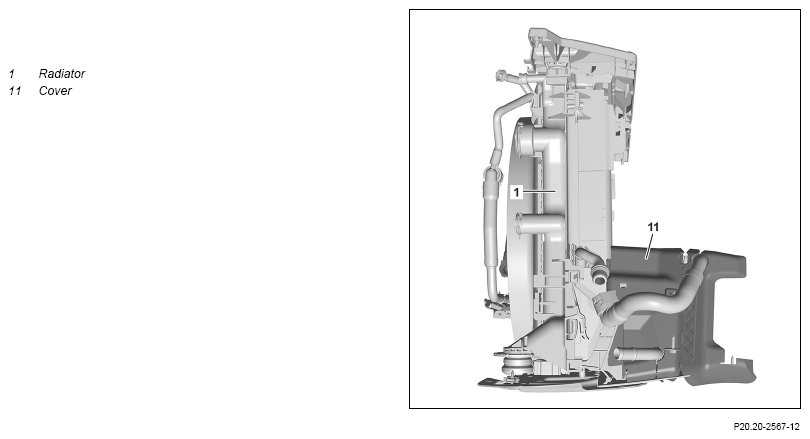

| 4 | Remove right cover (11) | ||

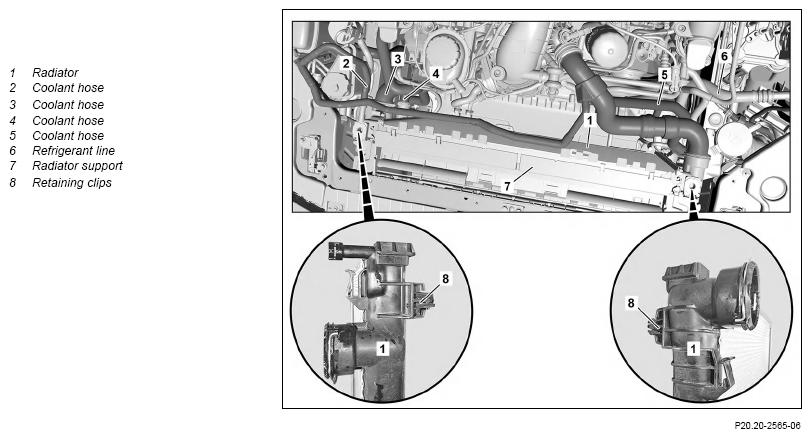

| 5 | Detach coolant hoses (2, 3, 4) from radiator (1) | AR20.20-P-7441-01RQ | |
| 6 | Detach coolant hose (5) from low-temperature circuit cooler | Fig 2 | |
| 7 | Detach power steering expansion reservoir and place to one side with attached lines | Engine 276.8 in model 172 up to model year 2016 | AR46.25-P-1000W |
| Engine 276.8 in model 172 as of model year 2016 | AR46.25-P-1000RD | ||
| 8 | Unclip refrigerant line (6) on carrier on A/C compressor | ||
| 9 | To do this press together retaining clamps (8) and unclip radiator (1) above on radiator support (7) in direction of engine | ||
| 10 | Take out radiator (1) with a helper in an upward direction | ||
| Check | |||

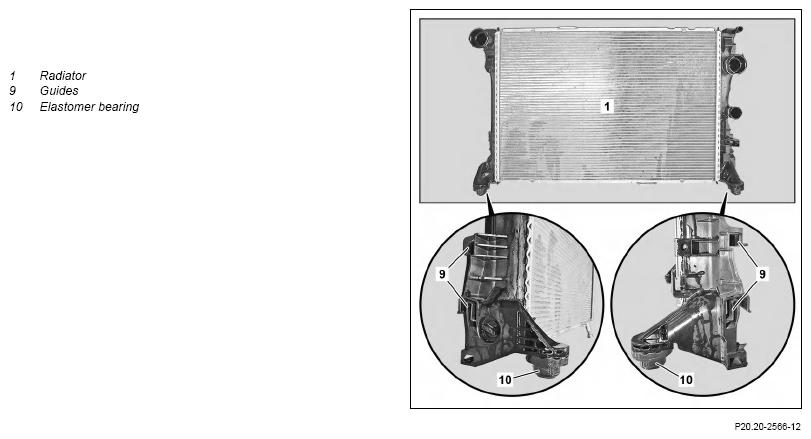

| 11 | Check elastomer bearings (10) for damage | If damage is present ↓ Replace elastomer bearing (10). |
|
| 12 | Check cooler (1) for damage | If damage is present ↓ Replace the cooler (1). |
|
| 13 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 14 | Carry out engine test run and check the engine cooling system for proper function and leak tightness |
