Remove/Install Fan Unit - AR20.40-P-5050WA
Engine 276.8 in model 172
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove left and right engine air intake duct upstream of air filter | ||
| 3 | Drain coolant at radiator | AR20.00-P-1142W | |

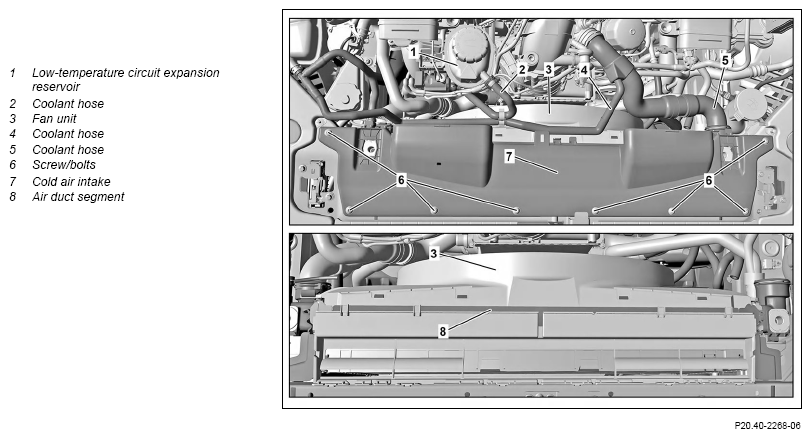

| 4 | Detach coolant hose (2) on low-temperature circuit expansion reservoir (1) and place to one side | AR20.20-P-7441-01RQ | |
| 5 | Detach coolant hose (5) on radiator | AR20.20-P-7441-01RQ | |
| 6 | Unclip cable for engine hood opening on cold air intake (7) and place to one side | ||
| 7 | Remove screw/bolts (6) and remove cold air intake (7) | ||
| 8 | Unclip coolant hose (4) and place to one side | ||
| 9 | Release and disconnect electrical connection at fan unit (3) | ||
| 10 | Unclip electrical line for fan motor at fan unit (3) |
||
| 11 | Unclip air duct segment (8) on fan unit (3) | ||
| 12 | Remove fan unit (3) upwards | ||
| 13 | Install in the reverse order | ||
| Check | |||
| 14 | Check coolant level in low-temperature circuit; correct if necessary | *BF20.00-P-1001-02BA | |
| 15 | Check low-temperature circuit engine cooling system for leak tightness | AR09.41-P-1010RKA | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 16 | Carry out engine test run and check the engine cooling system for proper function and leak tightness |
COOLING SYSTEM
| Number | Designation | Engine 276.8 in model 172 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02BA | Cooling system | Workshop replacement amount |
Main circuit | L | ≈ 10, 4 |
| Low-temperature circuit | L | ≈ 3, 4 | |||
| Antifreeze/water | Up to -37°C | % | 50/50 | ||
| As of-38°C | % | 55/45 | |||
| Specifications for Operating Fluids | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids | BB00.40-P-0326-06A | ||||
