Remove/Install Headlamp Unit - AR82.10-P-4733W
Model 172.4
with code 640 (High-performance LED)
Model 172.4
with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 172.4
with code 642 (Dynamic LED headlamps, right-hand traffic)
| Remove | |||
| 1 | Remove front fender | AR88.20-P-2000W | |

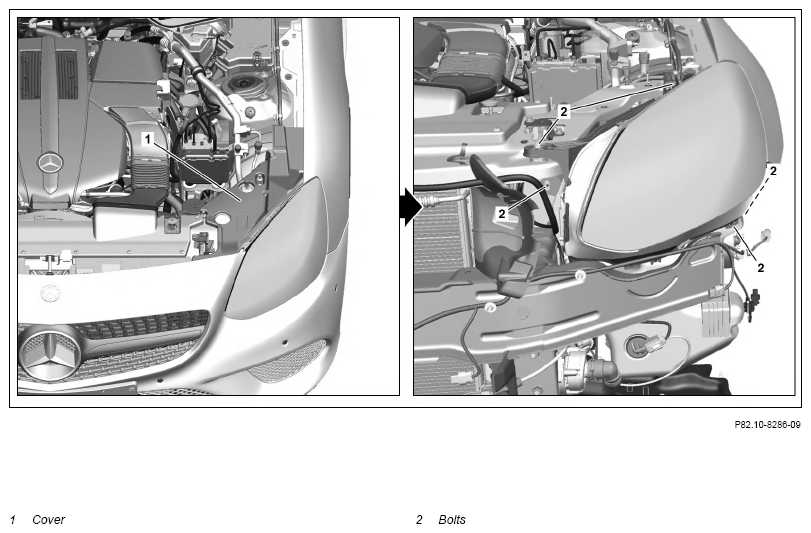

| 2 | Remove cover (1) | ||
| 3 | Remove bolts (2) | ||
| 4 | Detach left front Headlamp unit or right front Headlamp unit, until electrical connector is accessible | ||
| 5 | Release and disconnect electrical connector of left front Headlamp unit or right front Headlamp unit | ||
| 6 | Remove left front Headlamp unit or right front Headlamp unit | ||
| Install | |||
| 7 | Connect electrical connector of left front Headlamp unit or right front Headlamp unit | ||
| 8 | Insert left front Headlamp unit or right front Headlamp unit and tighten screws (2) slightly by hand | Check gaps. In case of a complaint ↓ Adjust gap dimensions. |
AR60.00-P-0700-01V |
| Gap dimension | *BE60.00-P-1001-01Y | ||
| Fig 2 | |||
| 9 | Tighten bolts (2) | ||
| 10 | Install cover (1) | ||
| 11 | Install front bumper | AR88.20-P-2000W |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 172 | ||||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01Y | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4, 0 (+1/-0, 5) | |
| Engine hood to headlamp | Dimension "R" | mm | 4, 0 (± 1) | |||
| Radiator grille to headlamp | Dimension "N" | mm | - | |||
| Engine hood to bumper | Dimension "B" | mm | 4, 0 (± 1) | |||
| Fender to headlamp | Dimension "C" | mm | 4, 0 (+1/-1, 5) | |||
| Bumper to headlamp (circumferential) | Dimension "D" | mm | 3, 5 (± 1, 5) | |||
| Mounting rail, bumper to engine hood | Dimension "I" | Outside | mm | 39, 5 (-1, 0) | ||
| Center | mm | 58, 5 (-1, 0) | ||||
| Picture | AR60.00-P-0700-01V | |||||
