Check Wiper Arms And Adjust - AR82.30-P-6000GC

MODEL 140, 170, 171.4, 172.4,

203 up to 31.5.03

Shown on model 203, wiper system in reverse position

G13848234Courtesy of MERCEDES-BENZ USA
INSPECT Check
  Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.  Always remove ignition key when working on windshield wiper mechanism. AS82.30-Z-0001-01A
    NOTES When working on raised driver-side wiper arm (1) or front passenger side wiper arm (2) it has to be observed that they do not fall onto the windshield to prevent it from being damaged.
1 Switch on ignition (circuit 15 or circuit 15R) and turn wiper switch to position "Two". After the wiper system has left the park position, switch off the ignition and remove the transmitter key
2 Manually position wiper system into reversing position IMPORTANT

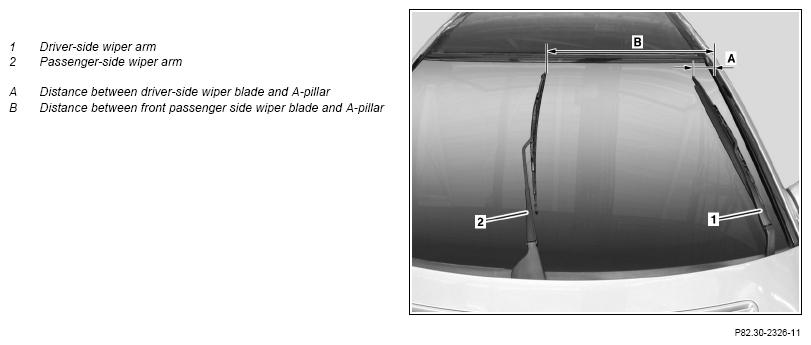

The reverse position of the driver-side wiper arm (1) corresponds to the distance from driver-side wiper blade to A-pillar (A):
Model 140 approx. 60 mm,

Model 170 approx. 50 mm,

Model 171 approx. 50 mm,

Model 172 approx. 50 mm,

Model 203 approx. 35 mm.

The reverse position of the passenger-side wiper arm (2) corresponds to the distance from passenger-side wiper blade to A-pillar (B):
Model 170 approx. 330 mm,

Model 203 approx. 350 mm, in model 140, model 171, model 172, the distance from passenger-side wiper blade to A-pillar (B) results from the distance from driver-side wiper blade to A-pillar (A).
Measured from the upper wiper blade end of the driver-side wiper blade (1) and the passenger-side wiper blade (2) to the inside of the driver-side A-pillar.
3 Remove wiper blades
4 Clean wiper blade fixtures on driver-side wiper arm (1) and passenger-side wiper arm (2) using a clean cloth
5 Check angle of incidence of driver-side wiper arm (1) and passenger-side wiper arm (2) to windshield NOTES When changing from reversing position to park position it has to be observed that the driver-side wiper arm (1) and the front passenger-side wiper arm (2) do not have any direct contact to the windshield to prevent it from being scratched.
IMPORTANT Cover driver-side wiper arm (1) and passenger-side wiper arm (2) with appropriate means (scratch protection).		 AR82.30-P-6000-01GC
    SPECIAL TOOL Adjustment tool set Fig 2
    SPECIAL TOOL Adapter (model 171.4, 172.4) Fig 5
6 Compare test values with adjustment values and select correct adjustment measure Angle of incidence of wiper arm on driver-side (1) in reversing position *BE82.30-P-1001-01E
    Angle of incidence of wiper arm on passenger-side (2) in reversing position *BE82.30-P-1002-01E
    Angle of incidence of wiper arm on driver-side (1) in park position *BE82.30-P-1003-01E
    Angle of incidence of wiper arm on front-passenger side (2) in park position *BE82.30-P-1004-01E
IMPORTANT Notes on wiper arm adjustment   AH82.30-P-0001-01A
7 Adjust angle of incidence of driver-side wiper arm (1) or passenger-side wiper arm (2) in park position In the event that the test values deviate from the tolerance range in reversing position or in park position and reversing position:
IMPORTANT Distort driver-side wiper arm (1) or front passenger side wiper arm (2) by at least the value of the tolerance deviation in reversing position.		 AR82.30-P-6100-01T
    Angle of incidence of wiper arm on driver-side (1) in park position *BE82.30-P-1003-01E
    Angle of incidence of wiper arm on front-passenger side (2) in park position *BE82.30-P-1004-01E
    SPECIAL TOOL Adjustment tool set Fig 2
8 Adjusting wiper system In the event that the test values of the driver-side wiper arm (1) and front passenger side wiper arm (2) deviate from the tolerance range in park position.
Model 140		 AR82.30-P-6400-01X
    Angle of incidence of wiper arm on front-passenger side (2) in park position *BE82.30-P-1004-01E
    SPECIAL TOOL Adjustment tool set Fig 2
    Model 170 AR82.30-P-6400-01GA
    Angle of incidence of wiper arm on driver-side (1) in park position *BE82.30-P-1003-01E
    SPECIAL TOOL Adjustment tool set Fig 2
    Model 171.4,

Model 172.4		 AR82.30-P-6400-01V
    Angle of incidence of wiper arm on driver-side (1) in park position *BE82.30-P-1003-01E
    TORQUE SPECIFICATION *BA82.30-P-1007-01A
    SPECIAL TOOL Adjustment tool set Fig 2
    Model 203 AR82.30-P-6400-01P
    Angle of incidence of wiper arm on driver-side (1) in park position *BE82.30-P-1003-01E
    TORQUE SPECIFICATION *BA82.30-P-1007-01A
    SPECIAL TOOL Pulling hook Fig 1
    SPECIAL TOOL Adjustment tool set Fig 2
9 Install wiper blades
WIPER ARM TEST AND ADJUSTMENT VALUES

Number Designation Model 140 Model 170
BE82.30-P-1001-01E Angle of incidence of wiper arm on driver-side in reversing position Left-hand drive vehicle ∠° +3.0 to +7.0 -2.0 to -6.0
Right-hand drive vehicle ∠° -3.0 to -7.0 +2.0 to +6.0
BE82.30-P-1002-01E Angle of incidence of wiper arm on front passenger side in reversing position Left-hand drive vehicle ∠° +2.0 to +6.0 -5.0 to -9.0
Right-hand drive vehicle ∠° -2.0 to -6.0 +5.0 to +9.0
BE82.30-P-1003-01E Angle of incidence of wiper arm on driver-side in parked position Left-hand drive vehicle ∠° -3.0 to -7.0 +2.0 to +6.0
Right-hand drive vehicle ∠° +3.0 to +7.0 -2.0 to -6.0
BE82.30-P-1004-01E Angle of incidence of wiper arm on front passenger side in parked position Left-hand drive vehicle ∠° -3.0 to -7.0 +2.0 to +6.0
Right-hand drive vehicle ∠° +3.0 to +7.0 -2.0 to -6.0
WIPER ARM TEST AND ADJUSTMENT VALUES

Number Designation Model 171 Model 172
BE82.30-P-1001-01E Angle of incidence of wiper arm on driver-side in reversing position Left-hand drive vehicle ∠° -1.0 to -5.0 -1.0 to -5.0
Right-hand drive vehicle ∠° +1.0 to +5.0 +1.0 to +5.0
BE82.30-P-1002-01E Angle of incidence of wiper arm on front passenger side in reversing position Left-hand drive vehicle ∠° -4.0 to -8.0 -4.0 to -8.0
Right-hand drive vehicle ∠° +4.0 to +8.0 +4.0 to +8.0
BE82.30-P-1003-01E Angle of incidence of wiper arm on driver-side in parked position Left-hand drive vehicle ∠° +2.0 to +6.0 +2.0 to +6.0
Right-hand drive vehicle ∠° -2.0 to -6.0 -2.0 to -6.0
BE82.30-P-1004-01E Angle of incidence of wiper arm on front passenger side in parked position Left-hand drive vehicle ∠° +4.0 to 8.0 +4.0 to +8.0
Right-hand drive vehicle ∠° -4.0 to -8.0 -4.0 to -8.0
WIPER ARM TEST AND ADJUSTMENT VALUES

Number Designation Model 203
BE82.30-P-1001-01E Angle of incidence of wiper arm on driver-side in reversing position Left-hand drive vehicle ∠° -1.0 to -5.0
Right-hand drive vehicle ∠° +1.0 to +5.0
BE82.30-P-1002-01E Angle of incidence of wiper arm on front passenger side in reversing position Left-hand drive vehicle ∠° -2.0 to -6.0
Right-hand drive vehicle ∠° +2.0 to +6.0
BE82.30-P-1003-01E Angle of incidence of wiper arm on driver-side in parked position Left-hand drive vehicle ∠° +1.5 to +5.5
Right-hand drive vehicle ∠° -1.5 to -5.5
BE82.30-P-1004-01E Angle of incidence of wiper arm on front passenger side in parked position Left-hand drive vehicle ∠° +2.5 to +6.5
Right-hand drive vehicle ∠° -2.5 to -6.5
WINDSHIELD WIPER

Number Designation Model 171 Model 172 Model 203
BA82.30-P-1007-01A Nut/screw, wiper system to partition wall Nm 12 12 8
