Adjusting Wiper System - AR82.30-P-6400-01V
WIPER ARM TEST AND ADJUSTMENT VALUES
| Number | Designation | Model 171 | Model 172 | ||
|---|---|---|---|---|---|
| BE82.30-P-1003-01E | Angle of incidence of wiper arm on driver-side in parked position | Left-hand drive vehicle | ∠° | +2.0 to +6.0 | +2.0 to +6.0 |
| Right-hand drive vehicle | ∠° | -2.0 to -6.0 | -2.0 to -6.0 | ||
WINDSHIELD WIPER
| Number | Designation | Model 171 | Model 172 | |
|---|---|---|---|---|
| BA82.30-P-1004-01A | Nut on wiper arm | Nm | 19 | 20 |
The wiper system may only be adjusted if the test values of wiper arms deviate from the tolerance range in park position.
- Open hood.

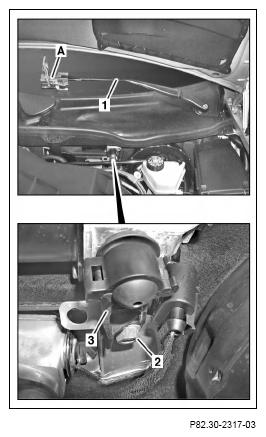

Install angle gauge (A) to driver-side wiper arm (1).
- Remove nut (2) on wiper system bracket (3).
- Move wiper system at bracket (3) horizontally until the correct adjustment value is shown on the dial of the
- Tighten nut (2).
Observe specified tightening torque.
- Close hood.
