Windshield Wipers, Windshield Washer System And Headlamp Cleaning System - Function Check - AP82.30-P-8252V
Model 171, 172, 230
Model 171
Model 172
Model 230
Model 171 shown
| Check | |||
| Risk of fire
and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. |
Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leak free in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| 1 | Close engine hood | ||
| Model 230 | AR88.40-P-1000R | ||
| MODEL 171, 172 | AR88.40-P-1000V | ||
| 2 | Close Vario roof, trunk lid, doors and side windows | ||
| 3 | Switch on ignition | ||

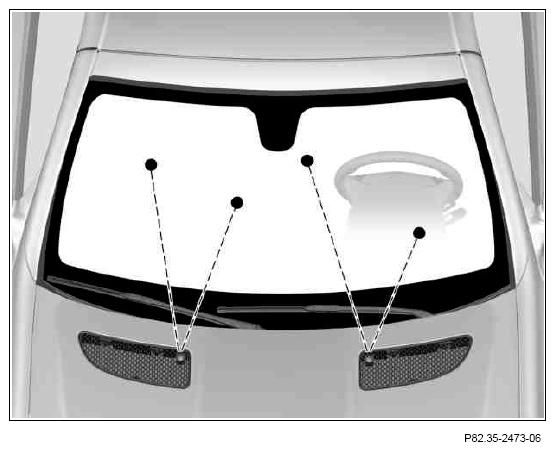

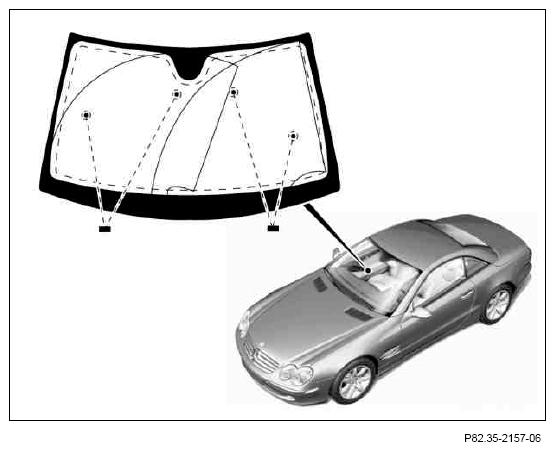

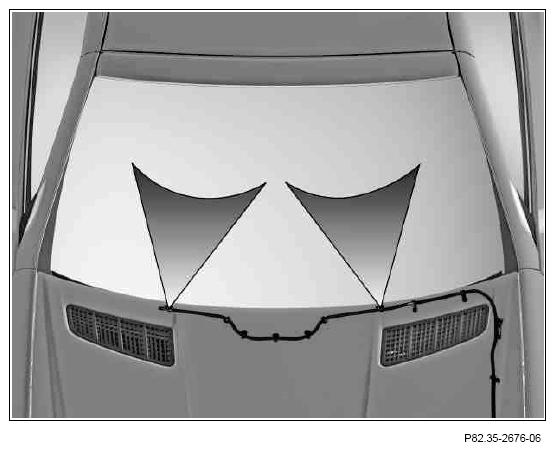

| 4 | Check function of spray nozzles for windshield washer system on windshield and the setting | Model 171, 172 | AP82.35-P-8252-01V |
| Model 230 MODEL 171, 230: If necessary correct setting using MODEL 172: If necessary, correct setting using suitable flat tip screwdriver 3 X 0.5 mm. |
AP82.35-P-8252-01R | ||
Model 171 with code 600 (Headlamp cleaning system) with code 612 (Xenon headlamp unit) with code 614 (Bi-xenon headlamps) Model 230 with code 600 (Headlamp cleaning system) with code 612 (Xenon headlamp unit) with code 614 (Bi-xenon headlamps) Adjusting tool For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. |
Fig 1 | ||
| 5 | Check park position of wiper blades | Otherwise the body or wiper mechanism will be damaged. In the event of any deviation to the park position: ↓ Check and adjust wiper arms subject to separate repair order. |
|
| 6 | Check setting of wiper arms on windshield | The body or wiper mechanism will otherwise be damaged. If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 7 | Switch on low beam | MODEL 171, 230 with CODE 600 (Headlamp cleaning system) or with CODE 612 (Xenon headlamp unit) or with CODE 614 (Bi-xenon headlamp unit) MODEL 172 with CODE 600 (Headlamp cleaning system) or with CODE 622 (Intelligent Light System) |
|

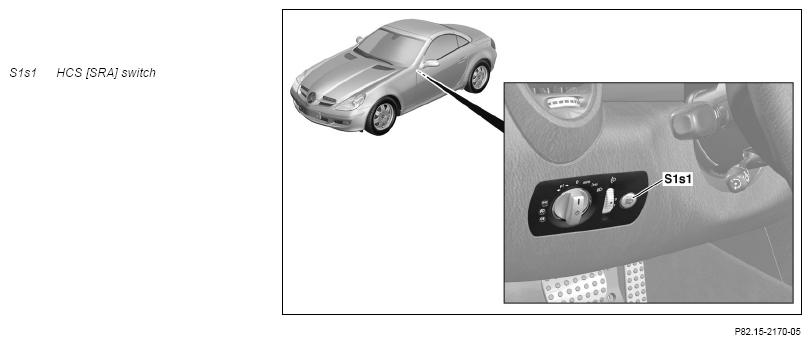

| 8.1 | Press HCS [SRA] switch (S1s1) | MODEL 171, 230 with CODE 600 (Headlamp cleaning system) or with CODE 612 (Xenon headlamp unit) or with CODE 614 (Bi-xenon headlamp unit) Vehicles with HCS [SRA] switch (S1s1) |
|
Model 171 with code 600 (Headlamp cleaning system) with code 612 (Xenon headlamp unit) with code 614 (Bi-xenon headlamps) Model 230 with code 600 (Headlamp cleaning system) with code 612 (Xenon headlamp unit) with code 614 (Bi-xenon headlamps) Adjusting tool For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. For spray nozzles that cannot be adjusted and with a deviating spray pattern: ↓ Replace spray nozzle subject to separate repair order. |
Fig 1 | ||
| 8.2 | Repeatedly operate windshield washer system of windshield | MODEL 171, 230 with CODE 600 (Headlamp cleaning system) or with CODE 612 (Xenon headlamp unit) or with CODE 614 (Bi-xenon headlamp unit) MODEL 172 with CODE 600 (Headlamp cleaning system) or with CODE 622 (Intelligent Light System) Vehicles without HCS [SRA] switch (S1s1) |
|
Model 171, 230 Adjusting tool For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. For spray nozzles that cannot be adjusted and with a deviating spray pattern: ↓ Replace spray nozzle subject to separate repair order. |
Fig 1 | ||
| 9 | Switch off low beam | MODEL 171, 230 with CODE 600 (Headlamp cleaning system) or with CODE 612 (Xenon headlamp unit) or with CODE 614 (Bi-xenon headlamp unit) MODEL 172 with CODE 600 (Headlamp cleaning system) or with CODE 622 (Intelligent Light System) |
|
| 10 | Switch off ignition | ||
| 11 | Correct fluid level in washer fluid reservoir | Model 171, 230 | AP82.35-P-8210N |
| Model 172 |
AP82.35-P-8210EW |
