Check Setting Of Windshield Washer System Spray Nozzles - AP82.35-P-8252-01V
MODEL 166, 171, 172
| Risk of fire and explosion
caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. |
Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leak free in safely closed original containers and out of children's reach only. | AS82.35-Z-0001-01A |
- Adjustment of spray nozzles of windshield washer system, correct if necessary.
Model 171: Use adjusting drift.
Model 166, 172: Use suitable flat tip screwdriver 3 x 0.5 mm.

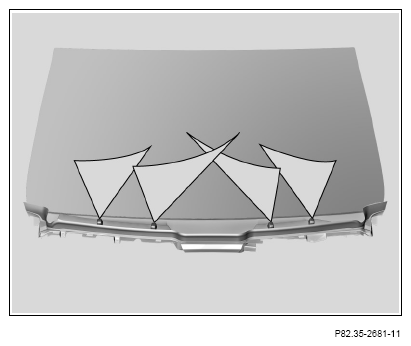

The spray jets must strike the windshield in the marked area.
Model 166: The rear window spray nozzle cannot be adjusted.
Model 166
Model 171
Model 172
