Windshield Washer System - Inspect Fluid Level, Adjust To Correct Level - AP82.35-P-8210EW

MODEL 172, 207, 212, 218, 231

Shown on model 212

Courtesy of MERCEDES-BENZ USA

	Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leak free in safely closed original containers and out of the reach of children.	AS82.35-Z-0001-01A
	Preparatory activity
1	Open engine hood and raise to vertical position	MODEL 172, 207, 212, 218, 231
		MODEL 207, 212 with CODE U60 (Active Bonnet (Pedestrian protection)) MODEL 207, 212 with CODE U60 (Active Bonnet (Pedestrian protection)) To move engine hood to upright position:  Detach left and right clamping levers at the upper left and right hinges.	AR88.40-P-1000EW
	Check/correct

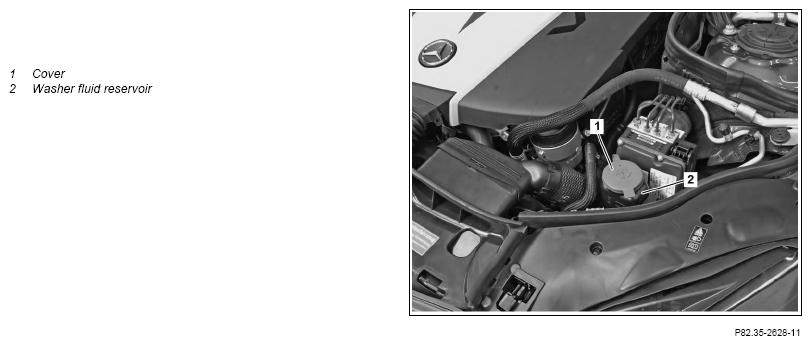

2	Remove cap (1) and check fluid level in washer fluid reservoir (2); correct if necessary
	Windshield washer fluid concentrate	Use summer/winter cleaner depending on season. Observe mixing ratio as per the table on the packaging of the windshield washer fluid and antifreeze.	BB00.40-P-0371-00A
			*BF82.35-P-1001-01D
		MODEL 172 Model 207, 212, 218, 231	*BF82.35-P-1001-01G
	Finishing activity
3	Close washer fluid reservoir (2) with cover (1)
4	Close engine hood	MODEL 172, 207, 212, 218, 231
		MODEL 207, 212 with CODE U60 (Active Bonnet (Pedestrian protection)) MODEL 207, 212 with CODE U60 (Active Bonnet (Pedestrian protection)) Before closing the engine hood:  Mount left and right clamping levers at the upper left and right hinges. Otherwise, correct operation of the pedestrian protection function can no longer be guaranteed.	AR88.40-P-1000EW

FILLING CAPACITY OF WINDSHIELD WASHER SYSTEM

Number	Designation			MODEL 172
BF82.35-P-1001-01D	Windshield washer fluid	Filling capacity	Liter	3, 5

FILLING CAPACITY - WINDSHIELD WASHER SYSTEM

Number	Designation			MODEL 207 except CODE 600/615/616/875	MODEL 207 with CODE 600/615/616/875
BF82.35-P-1001-01G	Windshield washer fluid	Filling capacity	Liter	4, 0	6, 0

FILLING CAPACITY - WINDSHIELD WASHER SYSTEM

Number	Designation			MODEL 212.0 except CODE 600/875	MODEL 212.0 with CODE 600/875, MODEL 212.1/2
BF82.35-P-1001-01G	Windshield washer fluid	Filling capacity	Liter	4, 0	6, 0

FILLING CAPACITY - WINDSHIELD WASHER SYSTEM

Number	Designation			MODEL 218	MODEL 231
BF82.35-P-1001-01G	Windshield washer fluid	Filling capacity	Liter	6, 0	5, 3
