Remove/Install Radiator Grille - AR88.40-P-4001WM
Model 172.4
as of model year 2016
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front bumper (1) | AR88.20-P-2000W | |
| 2 | Unlock and disconnect electrical connector from pedestrian protection sensor | Model 172.4 as of model year 2016 with code U60 (Active Bonnet (Pedestrian protection)) |
|
| 3 | Remove impact absorber | ||
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| 4 | Unclip electrical wiring harness (4) from radiator trim frame (2) | ||

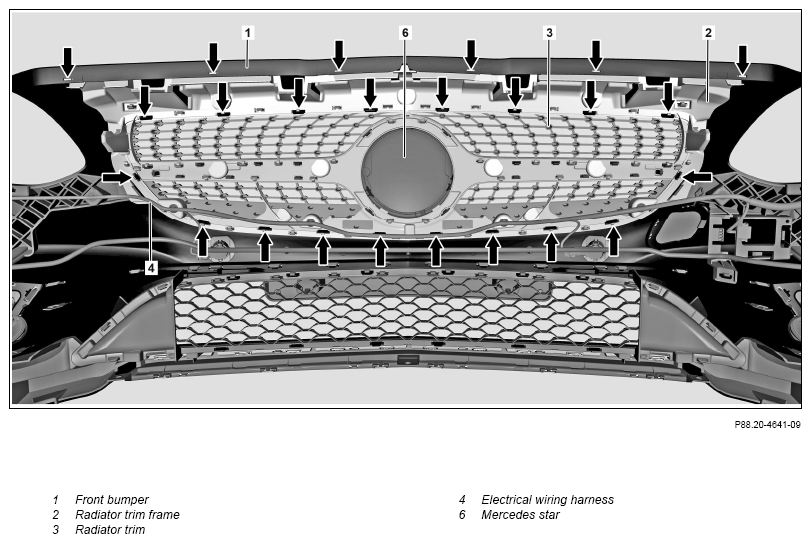

| 5 | Unlock catch hook (arrows) and remove radiator trim frame (2) from front bumper (1) | Fig 3 | |

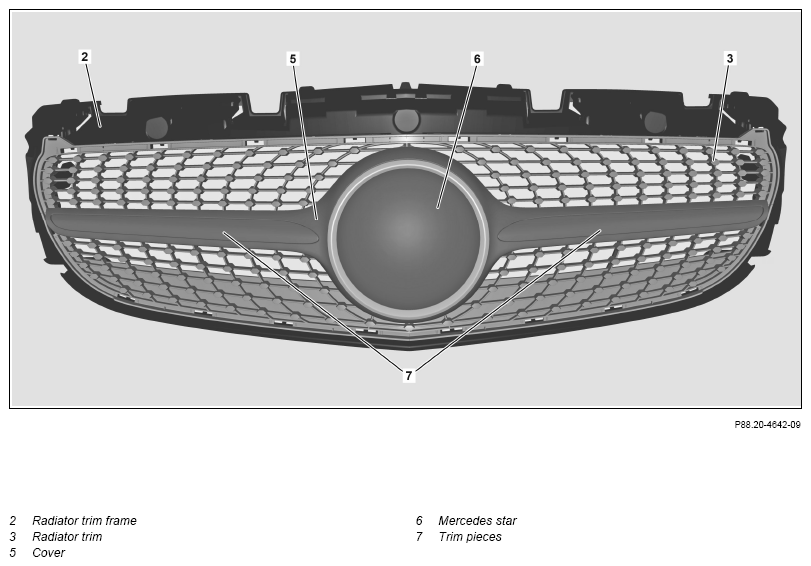

| 6 | Unclip cover (5) from radiator trim (3) | When replacing radiator trim (3). | |
| 7 | Unclip radiator trim (3) from radiator trim frame (2) | When replacing radiator trim (3). | |
| 8 | Remove Mercedes star (6) | When replacing cover (5). | |
| 9 | Unclip trim pieces (7) from cover (5) | When replacing cover (5). | |
| 10 | Remove model badge from cover (5) | Model 172.466 as of model year 2016 When replacing cover (5). |
AR88.40-P-4001-01W |
| 11 | Install in the reverse order |
