Remove/Install Model Badge On Radiator Trim - AR88.40-P-4001-01W

Model 172.466

as of model year 2016

Remove

1. Remove model badge "AMG" from cover.

   Install

   Courtesy of MERCEDES-BENZ USA

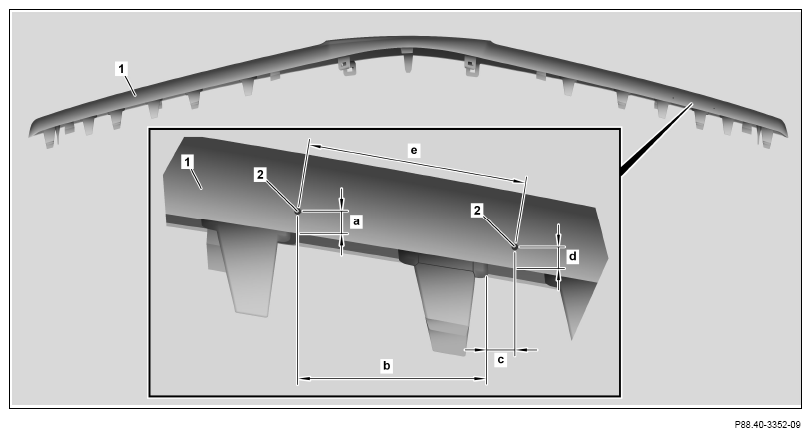

2. Measure position of holes (2) according to dimensions (a, b, c, d, e) on cover (1) and mark.

   Only if cover (1) is replaced.

   Dimensions:

   1. 6.1 mm
   2. 46.3 mm
   3. 6.5 mm
   4. 4.9 mm
   5. 53, 9 mm
3. Drill holes (2) with 0 1.5 mm in cover (1).

   Only if cover (1) is replaced.

4. Remove drilling chips.

   Only if cover (1) is replaced.

5. Install model badge "AMG" on cover (1).
