Retrofit Illuminated Door Sill Molding - AN82.20-P-0001W
MODEL 172.4## (except 172.475) 1#
| Removing | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Move back driver seat and front passenger seat | ||
| 2 | Disconnect battery ground line | AR54.10-P-0003W | |
| 3 | Detach front SAM control unit with fuse and relay module | AR54.21-P-1260CW | |

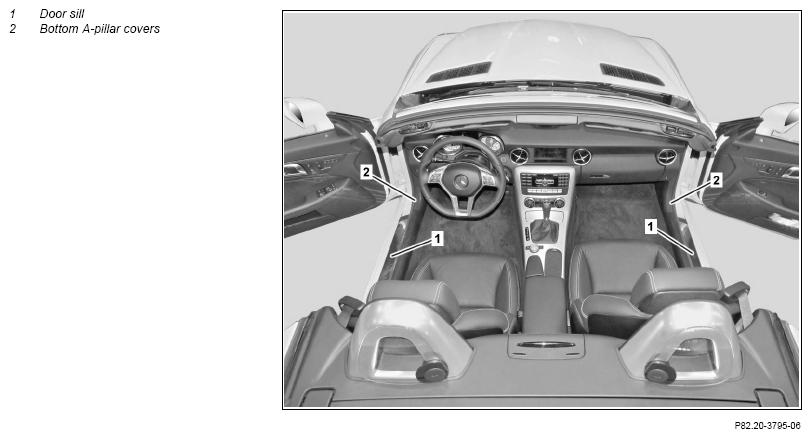

| 4 | Remove left and right door sill (1) | ||
| 5 | Remove lower A-pillar paneling (2) at left and right | ||
| 6 | Release door seal in area of left and right entrance | ||
| 7 | Remove cover below left and right instrument panel | ||
| Install | |||
| 8 | Mount left illuminated door sill molding and right illuminated door sill molding | AN82.20-P-0001-04W | |
| Fig 2 | |||
| 9 | Retrofit illuminated door sill molding wiring harness | AN82.20-P-0001-03W | |
| Fig 1 | |||
| Fig 2 | |||
| 10 | Install remaining parts | ||
| 11 | Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc) |
|
|
| 12 | Document retrofitted equipment through VeDoc | ||
| 13 | Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN) | ||
| 14 | Perform variant coding with XENTRY using the software calibration number (SCN) | ||
| 15 | Disconnect Star Diagnosis | ||
| 16 | Perform function check on illuminated door sill moldings | ||
| 17 | Remove protective foil from illuminated door sill moldings |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| DG 99 (see EPC) | Illuminated door sill moldings | 1 |
| A 169 543 03 31 | Yellow line (YE) 0.75 mm2 (delivery size 100 m) | 1000 mm |
