Retrofit Illuminated Door Sill Molding Wiring Harness - AN82.20-P-0001-03W

MODEL 172.4##

(except 172.475) 1#

Fig 1: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

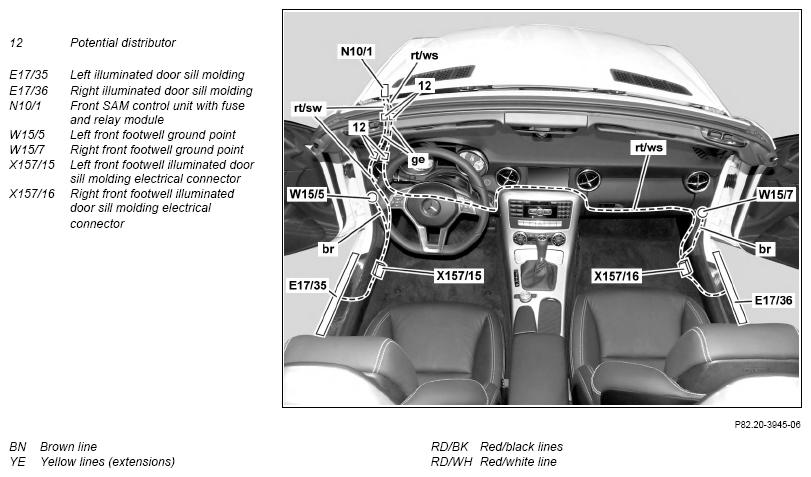

Routing diagram

Courtesy of MERCEDES-BENZ USA

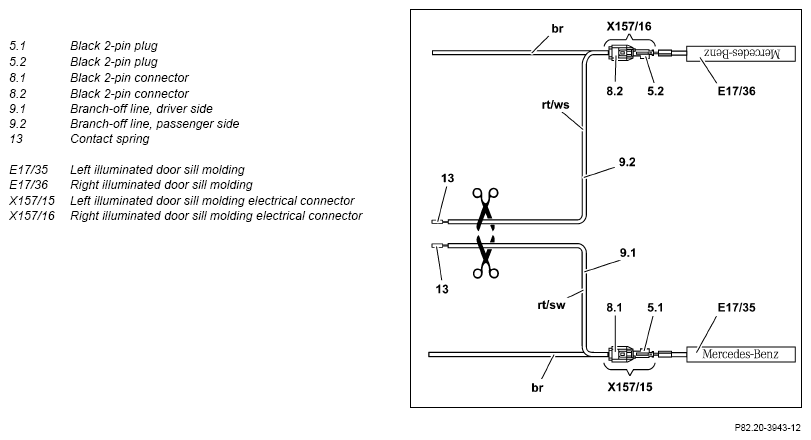

Wiring harness in original condition

Courtesy of MERCEDES-BENZ USA

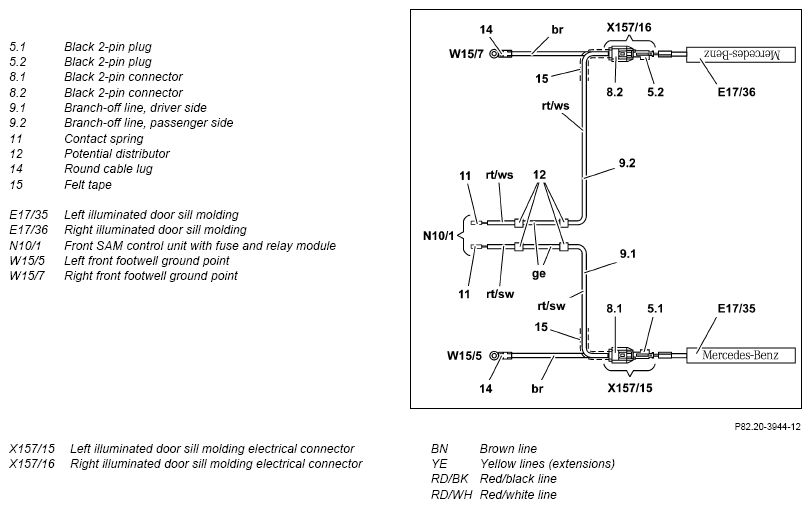

Connection scheme/wiring harness in original condition

Courtesy of MERCEDES-BENZ USA

Modify branch-off line, driver side (9.1) and branch-off line, passenger side (9.2) as follows, outside of vehicle.

1. Fit round cable lugs (14) with 6 mm diameter to brown lines (BN).
2. Remove contact springs (13).

   Contact springs (13) are no longer required.

3. Shorten red/black line (RD/BK) and red/white line (RD/WH) by 100 mm each.
4. Extend red/black line (RD/BK) on branch-off line, driver side (9.1) and red/white line (RD/WH) on branch-off line, passenger side (9.2) using one 500 mm long yellow line (YE) each.

   Connect using potential distributors (12); they must be taken from the wiring harness repair kit.

5. Connect 100 mm long red/black (RD/BK) and red/white (RD/WH) lines to yellow lines (YE).

   Connect using potential distributors (12); they must be taken from the wiring harness repair kit. The line colors must be the same at the beginning and at the end of the yellow line (YE).

6. Wrap felt tap (15) around branch-off line, driver side (9.1) and branch-off line, passenger side (9.2), starting from the black 2-pin connectors (8.1 and 8.2) over a length of 800 mm.
7. Wrap felt tape around all potential distributors (12).

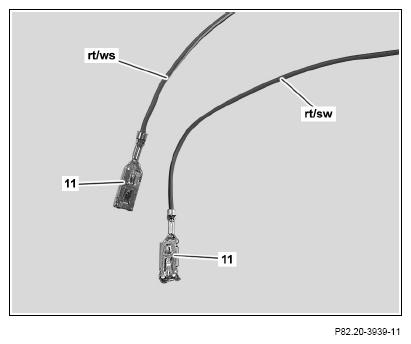

8. Install one contact spring (11) each at the 100 mm long red/black (RD/BK) and red/white (RD/WH) lines.

   Use contact spring (11) "SLK 2.8" from the wiring harness repair kit.

   Courtesy of MERCEDES-BENZ USA

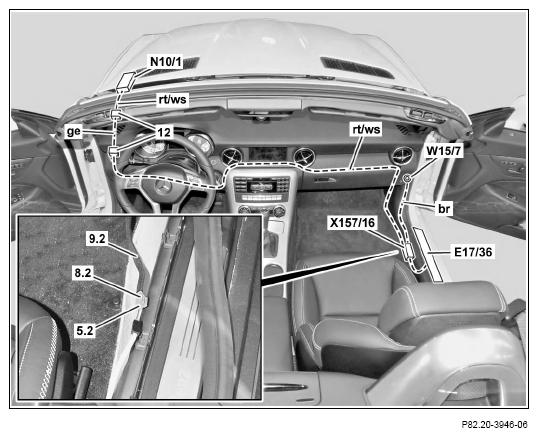

9. Connect black 2-pin plug (5.2) of right illuminated door sill molding (E17/36) and black 2-pin connector (8.2) of branch-off line, passenger side (9.2).

   This creates the right illuminated door sill molding (X157/16) electrical connection.

10. Bond felt tape onto electrical connector for right illuminated door sill molding (X157/16) and voltage converter.

    Courtesy of MERCEDES-BENZ USA

11. Route brown line (BN) in cable ducts and below floor covering to ground point (right front footwell) (W15/7) and connect.
12. Route red/white line (RD/WH) along existing lines below instrument panel to front SAM control unit with fuse and relay module (N10/1) and fix in place on vehicle wiring harness using cable ties.

    Use a pull-through device.

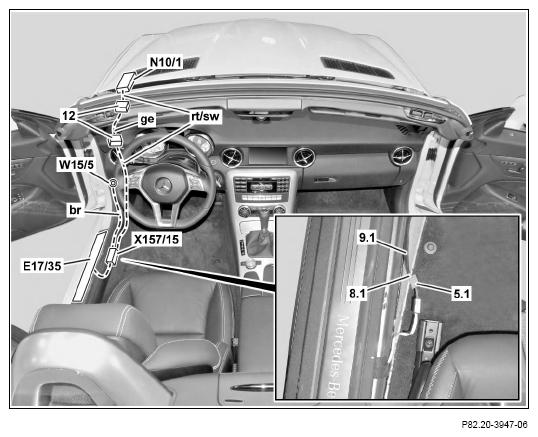

13. Connect black 2-pin plug (5.1) of left illuminated door sill molding (E17/35) and black 2-pin connector (8.1) of branch-off line, driver side (9.1).

    This creates the left illuminated door sill molding (X157/15) electrical connection.

14. Bond felt tape onto electrical connector for left illuminated door sill molding (X157/15) and voltage converter.

    Courtesy of MERCEDES-BENZ USA

15. Route brown line (BN) in cable ducts and beneath floor covering to ground point (left front footwell) (W15/5) and connect.
16. Route red/black line (RD/BK) along existing lines below instrument panel to front SAM control unit with fuse and relay module (N10/1) and fix in place on vehicle wiring harness using cable ties.

    Use a pull-through device.

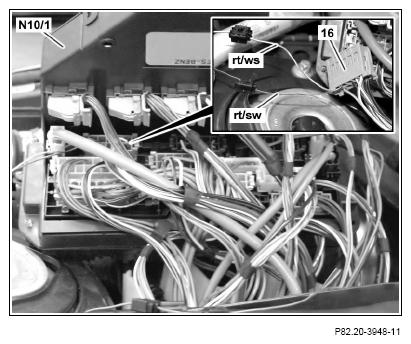

17. Remove green 10-pin connector (16) from front SAM control unit with fuse and relay module (N10/1).
18. Install red/white line (RD/WH) and red/black line (RD/BK) into green 10-pin connector (16).

    Contact cavity assignment:

    Socket 2 red/black line (RD/BK)

    Socket 4 red/white line (RD/WH)

    The contact cavities of the green 10-pin connector (16) are labeled.

Courtesy of MERCEDES-BENZ USA
