Overview Of Exterior Lights System Components - GF82.10-P-9998RD
Model 172.4
up to model year 2017

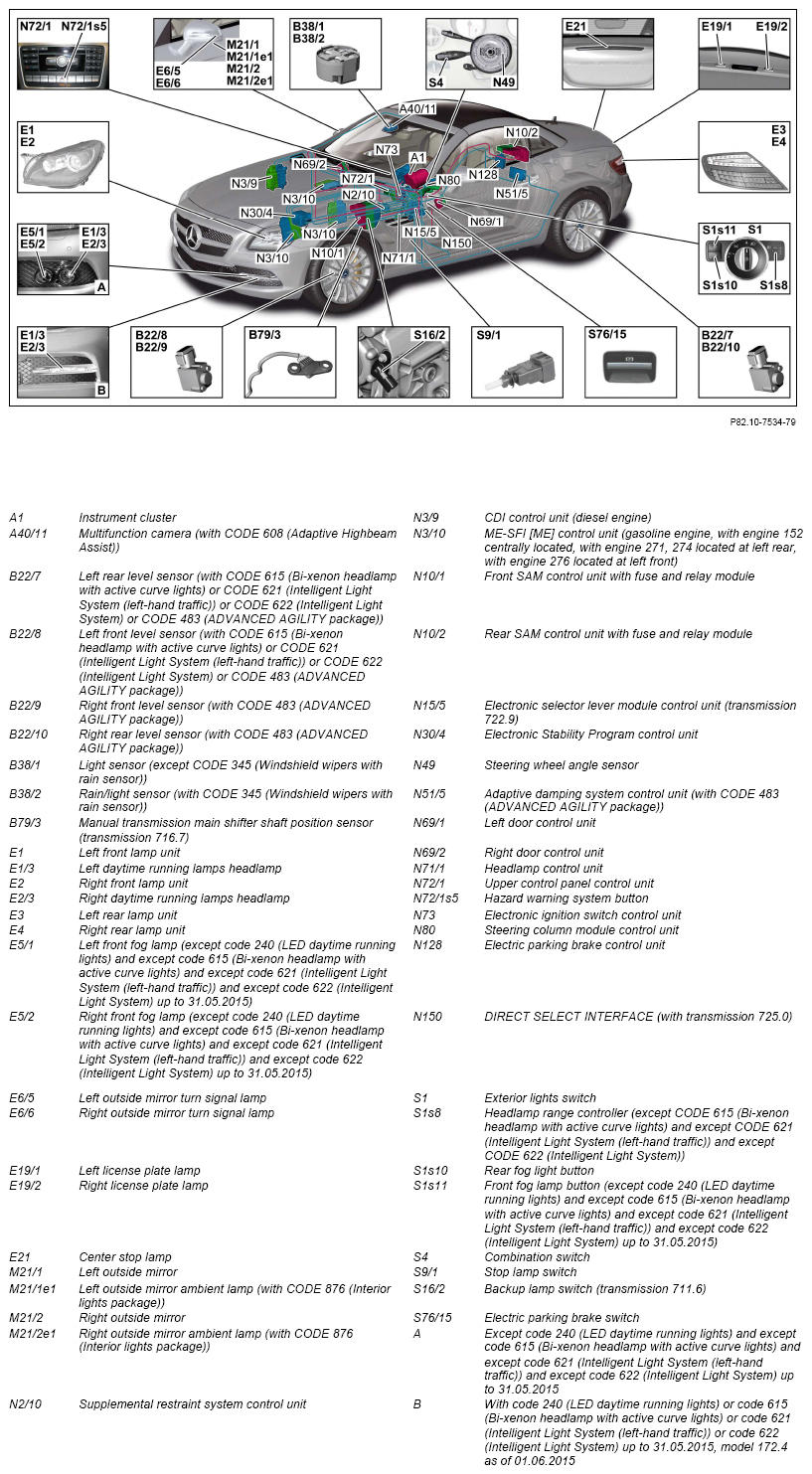

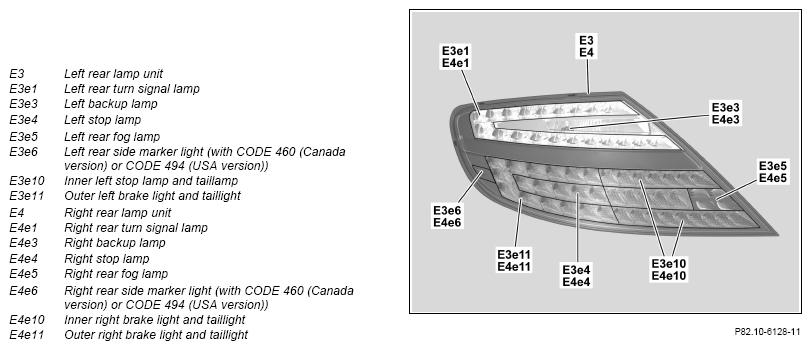

Illustration shows model 172.4

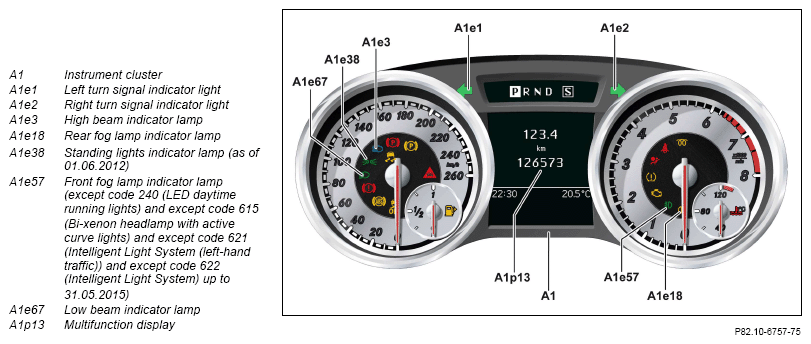

Displays in the instrument cluster (A1)
The following components in the instrument cluster transmitting functional feedback are not shown here:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

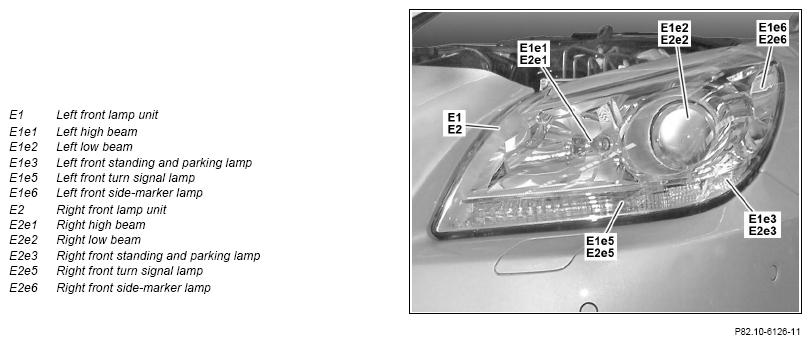

Halogen lamp unit (except CODE 615 (Bi-xenon headlamp with active curve lights) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
The following components in the front lamp units are not shown here:
- Left headlamp range adjustment actuator motor (E1m1)
- Right headlamp range adjustment actuator motor (E2m1)

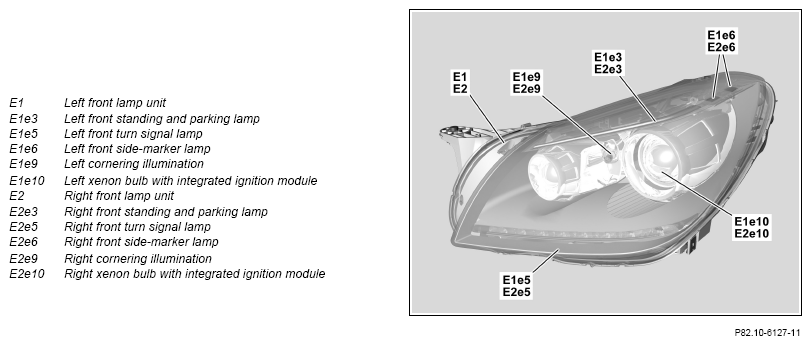

Xenon lamp unit (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
The following components in the front lamp units are not shown here:
- Left high beam solenoid (E1l1) (up to 31.05.2012)
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3) (as of 01.06.2012)
- Right high beam solenoid (E2l1) (up to 31.05.2012)
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3) (as of 01.06.2012)
- Left xenon light power supply module (E1n4)
- Right xenon light power supply module (E2n4)
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for multifunction camera | Model 172.4 up to model year 2017 with code 608 (Adaptive High Beam Assist) A40/11 | GF54.21-P-3300RD | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RD | |
| Component description for CDI control unit | Model 172.4 with engine 651.9 up to model year 2017 N3/9 | GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | Model 172.4 with engine 152.9 up to model year 2017 N3/10 | GF07.61-P-6000MMI | |
| Model 172.4 with engine 271.861 up to model year 2017 N3/10 | GF07.61-P-6000MGA | ||
| Model 172.4 with engine 274.9 up to model year 2017 N3/10 | GF07.61-P-6000MRE | ||
| Model 172.4 with engine 276.9 up to model year 2017 N3/10 | GF07.61-P-6000MMD | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for electronic selector lever module control unit | Model 172 with transmission 722.9 up to model year 2017 N15/5 | GF27.60-P-5163AHN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RD | |
| Component description for adaptive damping system control unit | Model 172.4 up to model year 2017 with code 483 (ADVANCED AGILITY package) N51/5 | GF32.32-P-1010RD | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD | |
| Headlamp control unit, component description | Model 172.4 up to model year 2017 with code 615 (Bi-xenon headlamps with active light function) with code 621 (Intelligent Light System (left-hand traffic)) with code 622 (Intelligent Light System) N71/1 |
GF82.10-P-2020RD | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RD | |
| DIRECT SELECT interface, component description | Model 172.4 with transmission 725.0 up to model year 2017 N150 | GF27.19-P-1300ANH | |
| Table of contents for function description of exterior lights | GF82.10-P-0999RD |
