TV-Mode, Function - GF82.85-P-2011LFM
Model 217, 222 as of model year 2018 with code 865 (digital TV)

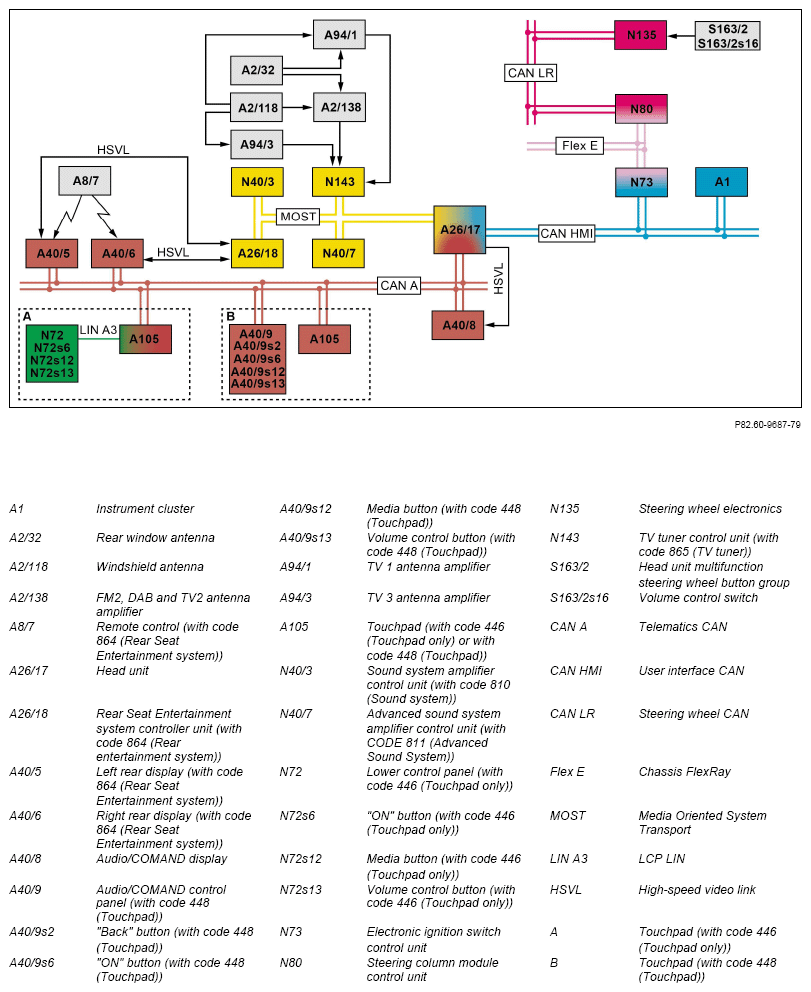

Shown on model 217, 222
Information on touchpad
The touchpad is installed in two variants.
Variant 1 (with code 448 (Touchpad)): The touchpad is installed together with the Audio/COMAND control panel. The touchpad is connected only to the telematics CAN.
Variant 2 (with code 446 (Touchpad only)): The touchpad is installed instead of the Audio/COMAND control panel. In this case, the lower control panel is connected via the LCP LIN to the touchpad. The touchpad is also connected to the telematics CAN.
Function requirement TV mode, general
- Circuit 30t ON
- Transport mode not active
- No smartphone is connected via the Android Auto or CarPlay standard.
TV mode, general
The TV tuner control unit makes it possible to receive digital TV channels in the vehicle and show them on the Audio/COMAND display. To control the TV functions, the head unit communicates via MOST with the TV tuner control unit. If the head unit is not switched on, it can be activated using the "ON" button of the Audio/COMAND control panel (with code 448 (Touchpad)) or the lower control panel (with code 446 (Touchpad only)). The TV functions can be activated using the media button.
The Audio/COMAND control panel (with code 448 (Touchpad)) transmits the signals to the head unit via the telematics CAN. The lower control panel (with code 446 (Touchpad only)) transmits the signals to the head unit via the LCP-LIN, touchpad and telematics CAN.
For safety reasons the TV picture is switched off when the vehicle starts to move. When the vehicle is moving, only acoustic playback remains active and a warning appears on the Audio/COMAND display. The head unit receives the speed signal from the instrument cluster over the user-interface CAN.
Emergency warnings are also shown while driving on the Audio/COMAND display.
Model 222
as of model year 2018
with code 864 (Rear compartment entertainment package)
with code 865 (digital TV)
The TV functions can also be used in the rear.
The TV functions can be activated and regulated with the following head unit multifunction steering wheel button group controls. The volume can be changed using the head unit multifunction steering wheel button group's volume adjustment switch. The control signals are transmitted as follows:
The head unit multifunction steering wheel button group signals are forwarded via the following route:
Steering wheel electronics →
Steering wheel CAN →
Steering column tube module control unit →
Chassis FlexRay →
Electronic ignition lock control unit →
User interface CAN →
Instrument cluster →
User interface CAN →
Head unit
The TV functions can be selected, activated and regulated using the following Audio/COMAND control panel controls (with code 448 (Touchpad)). The "Back" button supports navigation in the menus. The control signal are transmitted to the head unit by the Audio/COMAND control panel (with code 448 (Touchpad)) via the telematics CAN.
In vehicles with code 448 (Touchpad) or with code 446 (Touchpad only), TV functions can be operated with the touchpad. The touchpad transfers the signals to the head unit via the telematics CAN. In vehicles with code 864 (Rear Seat Entertainment System), TV functions can be selected, activated and adjusted using the remote control. The remote control's control signals are received by the Kleer® radio interface of the left rear display and the right rear display. The Rear Seat Entertainment system controller unit forwards the control signals via MOST to the TV tuner control unit.
The TV tuner control unit separates the video and audio signals that are contained in the TV signals. The TV mode is therefore comprised as follows:
- Function sequence for reception of TV signals
- Function sequence for output of video signals
- Function sequence for output of audio signals
- Function sequence for transferring TV signals (with code 864 (Rear Seat Entertainment System))
- Additional information (with CODE 498 (Japan version))
- Additional information (except CODE 498 (Japan version))
Function sequence for reception of TV signals
Model 222 and model 217.3:
TV 1 and TV 2 signals are received via the following route:
Rear window antenna →
TV 1 antenna amplifier or FM2, DAB and TV2 antenna amplifier →
TV tuner control unit
TV 3 signals are received as follows:
Windshield antenna →
TV 3 antenna amplifier →
TV tuner control unit
Model 217.4:
TV 1, TV 2 and TV 3 signals are received via:
Windshield antenna →
TV 1 antenna amplifier, FM2, DAB and TV2 antenna amplifier or TV 3
antenna amplifier →
TV tuner control unit
The TV tuner control unit processes the TV signals and separates the video signals from the audio signals.
Function sequence for output of video signals
Video signals are transmitted via:
TV tuner control unit →
MOST →
Head unit →
HSVL →
Audio/COMAND display
Function sequence for output of audio signals
In vehicles except code 810 (Sound system), code 811 (Advanced sound system), the TV tuner control unit transfers the audio signals via MOST to the head unit. The head unit amplifies the audio signals and outputs them over the speaker system.
In vehicles with code 810 (Sound system), the TV tuner control unit forwards the audio signals via the MOST to the sound system amplifier control unit, which amplifies the audio signals and outputs them over the speaker system.
In vehicles with code 811 (Advanced sound system), the TV tuner control unit forwards the audio signals via the MOST to the advanced sound system amplifier control unit, which amplifies the audio signals and outputs them over the speaker system.
Function sequence for transferring TV signals (with code 864 (Rear Seat Entertainment System))
In vehicles with code 864 (Rear Seat Entertainment System), TV signals can be requested for display in the rear passenger compartment by the Rear Seat Entertainment System controller unit. The Rear Seat Entertainment system controller unit transmits the control signals from the rear via the MOST to the head unit.
The Rear Seat Entertainment system controller unit receives the audio and video signals via the MOST from the head unit.
Additional information (with CODE 498 (Japan version))
The supplemental information is subdivided into the following categories:
- TV reception
- Additional functions
TV reception
With digital TV reception the "one-segment" substandard (TV standard for mobile telephony) is also supported in addition to the "full-segment" substandard.
Additional functions
The TV tuner control unit has the following functionalities:
- Digital image storage
- Last settings
- "BML" (Broadcast Markup Language) function: The TV tuner control supports video text for all available Japanese TV stations. This enables information to be shown similar to a small website on weather, news, etc. By selecting a region in the setting list you can obtain region-specific information.
- "EPG" (Electronic Program Guide) function: The Electronic Program Guide shows information such as start and end of broadcasts and detailed information on the television programs for each TV station.
- Bilingual function: Two languages are supported depending on station availability, e.g. Japanese on the main-sound track and English on the sub-sound track.
Additional information (except CODE 498 (Japan version))
The supplemental information is subdivided into the following categories:
- TV reception
- Additional functions
TV reception
In accordance with the "Digital Video Broadcasting-Terrestrial" (DVB-T) standard, digital television is received exclusively in a range of 470 to 710 MHz. Along with the video compression standard Mpeg 2, Mpeg 4 is also supported. Encrypted programs can be received with a CI+ (Common Interface Plus) module.
Additional functions
New services that can be supported by the TV tuner control unit will be available in the future in the frequency ranges 90 to 108 MHz and 170 to 222 MHz.
The TV tuner control unit currently has the following functionalities:
- Video text (pages: 100 to 899)
- Station list of channels currently receivable
- Last settings
- National settings
- Info (information on currently selected stations)
Video text function: Some stations, primarily in central Europe, offer video text in addition to their television program. To this end, the TV tuner control unit is equipped with a separate video text decoder.
Only video text broadcast with Latin ASCII characters are supported, i.e. Greek or Cyrillic characters are not supported.
| Electrical function diagram for TV mode, function | Model 217 as of model year 2018 with code 865 (digital TV) | PE82.85-P-2065-97SEN | |
| Model 222 as of model year 2018 with code 865 (digital TV) | PE82.85-P-2065-97SEM | ||
| Overview of system components, telematics | GF82.85-P-9999LFM |
