Overview Of System Components, Telematics - GF82.85-P-9999LFM
Model 217, 222 as of model year 2018

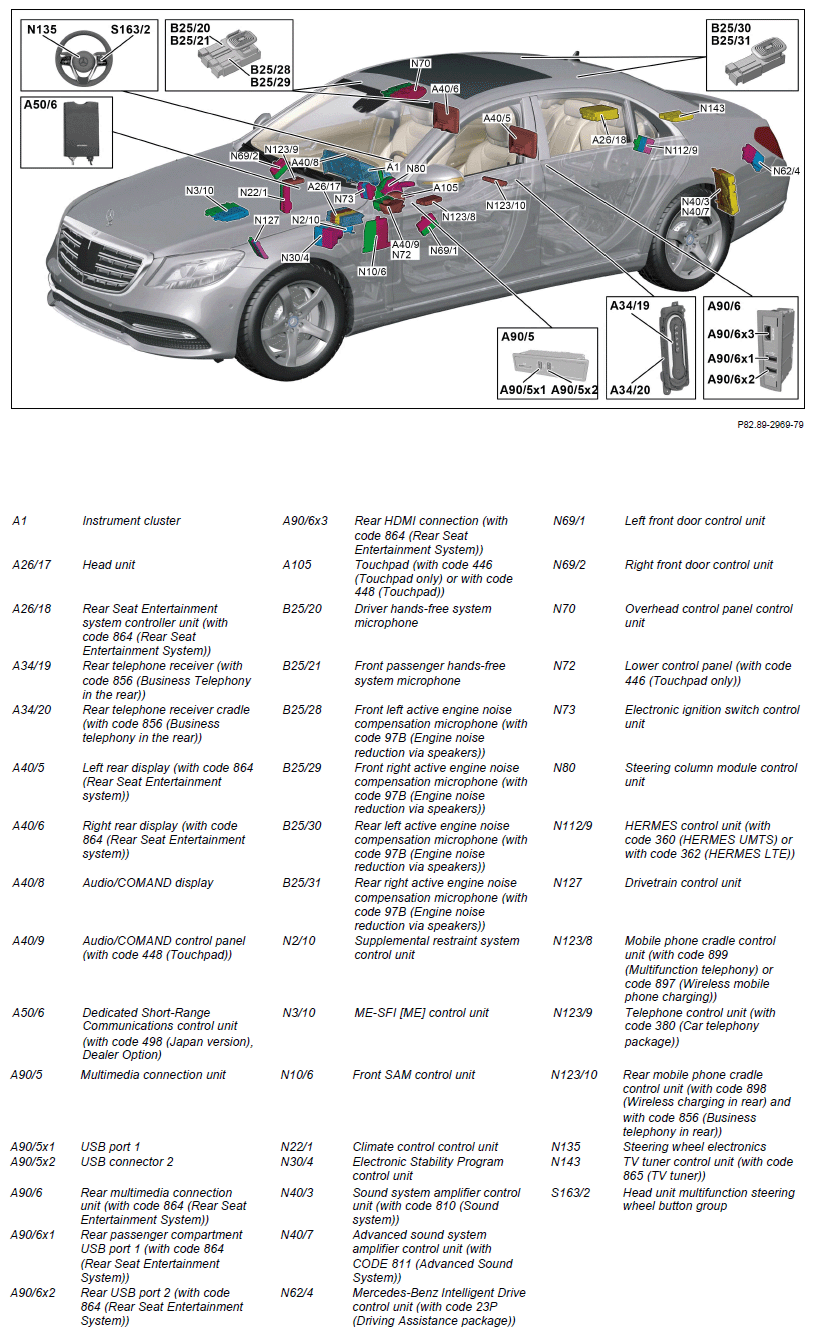

Components except telematics antenna system and except speaker system, shown on model 222.0

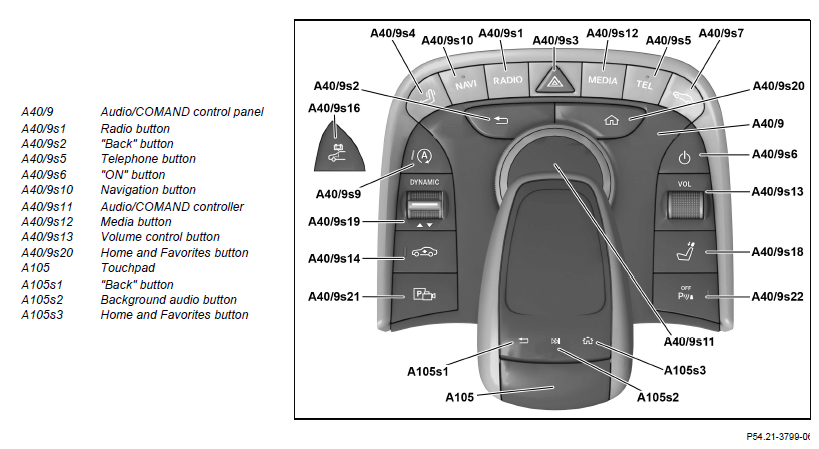

Detailed view of Audio/COMAND control panel and touchpad (with code 448 (Touchpad))

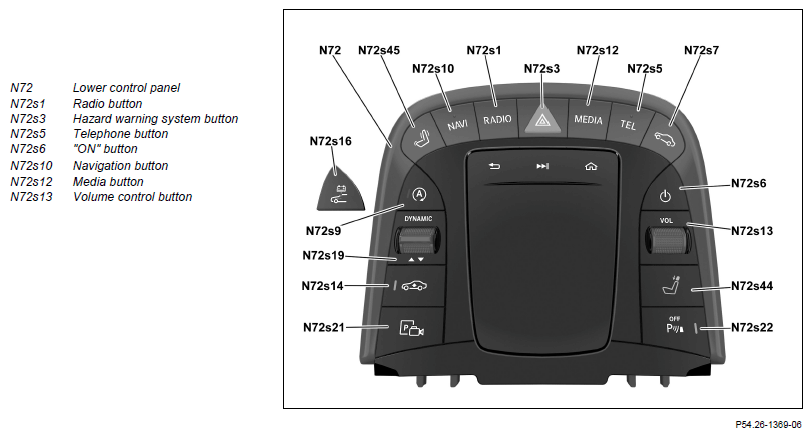

Detailed view of lower control panel (with code 446 (Touchpad only))

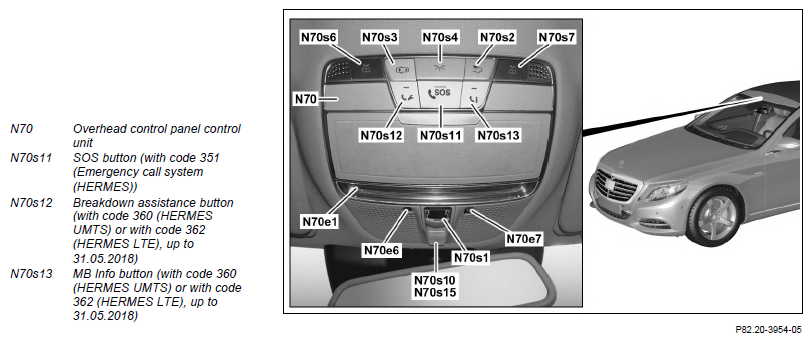

Detailed view of overhead control panel control unit, shown on model 222.0 with code 351 (Emergency call system (HERMES)), valid for model 222 and model 217.3

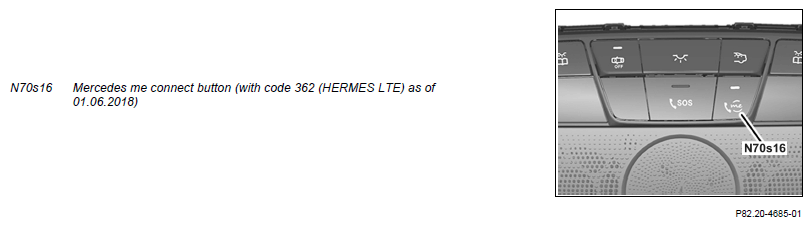

Detailed view of Mercedes me connect button (N70s16), model 217.3, 222, as of 01.06.2018 with code 351 (Emergency call system (HERMES))

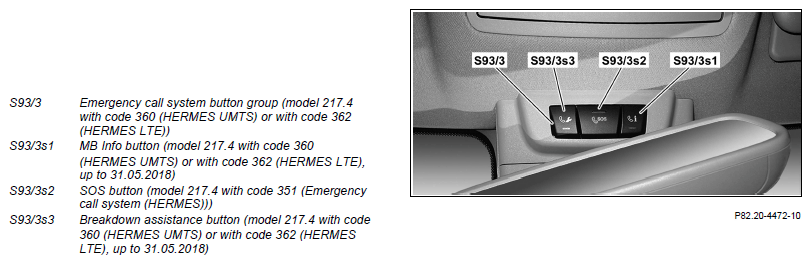

Emergency call system button group (S93/3) for model 217.4 with code 351 (Emergency call system (HERMES)), shown on model 217.4 up to 31.05.2018

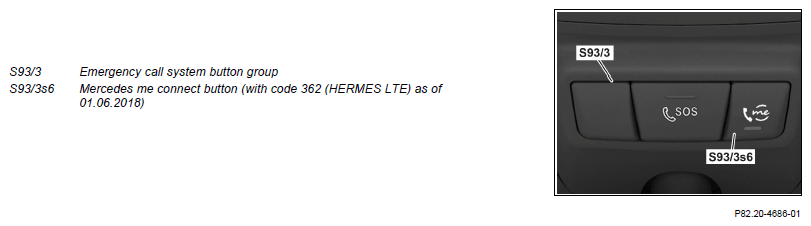

Model 217.4 as of 01.06.2018 with code 351 (Emergency call system (HERMES))

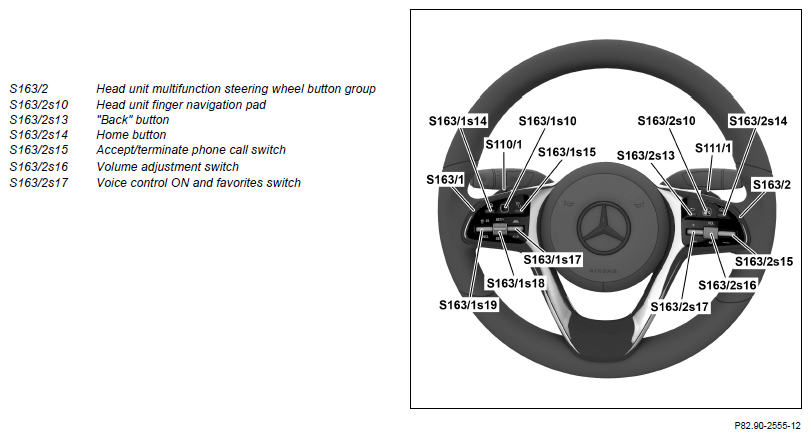

Detailed representation of head unit multifunction steering wheel button group, shown on model 222.0

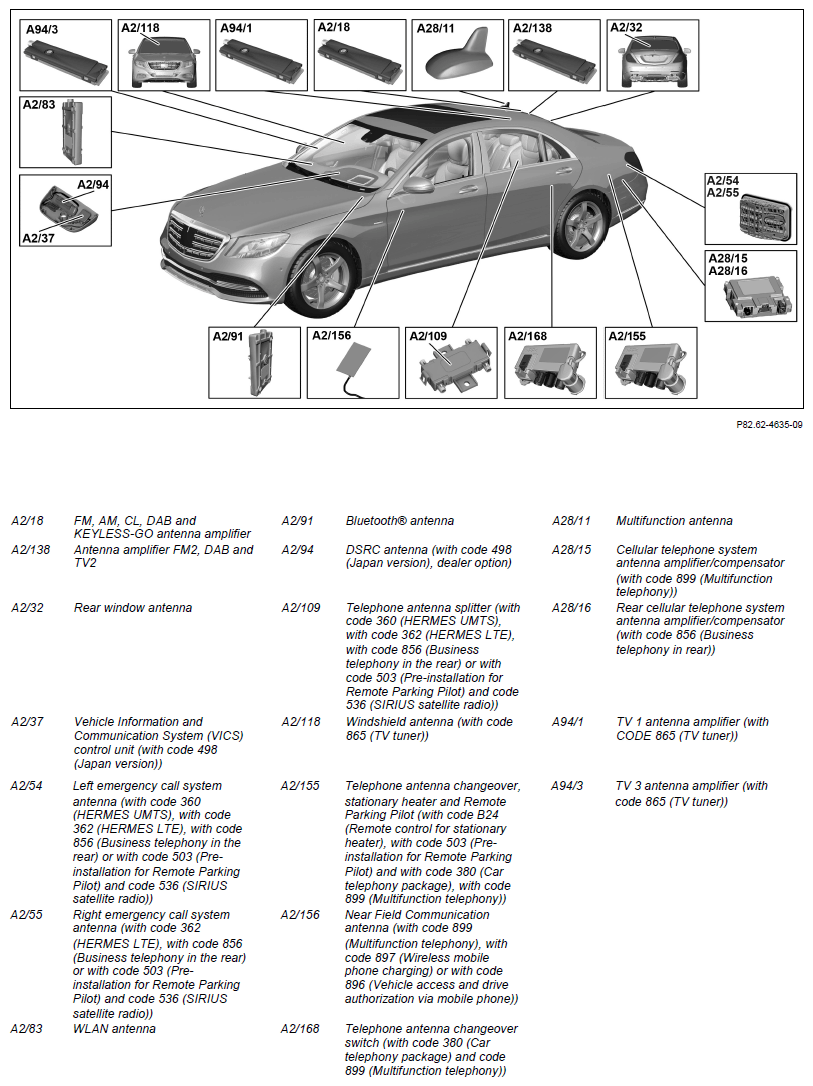

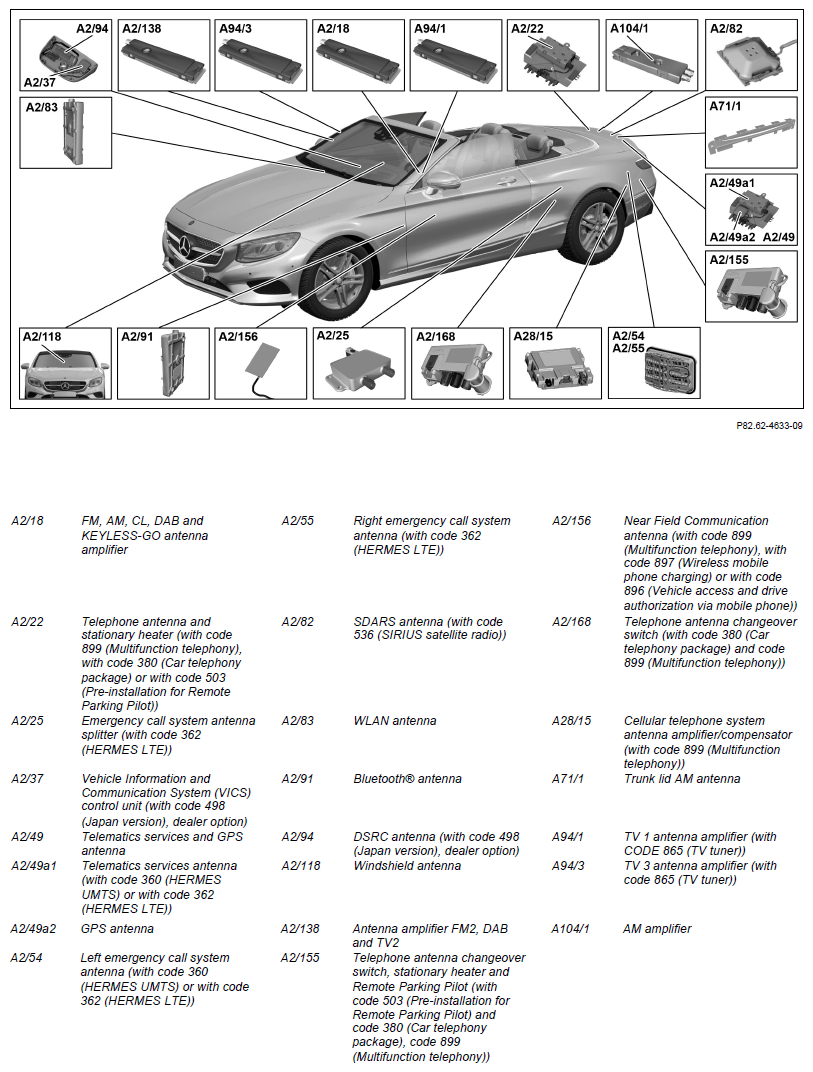

Telematics antenna system, shown on model 222.0

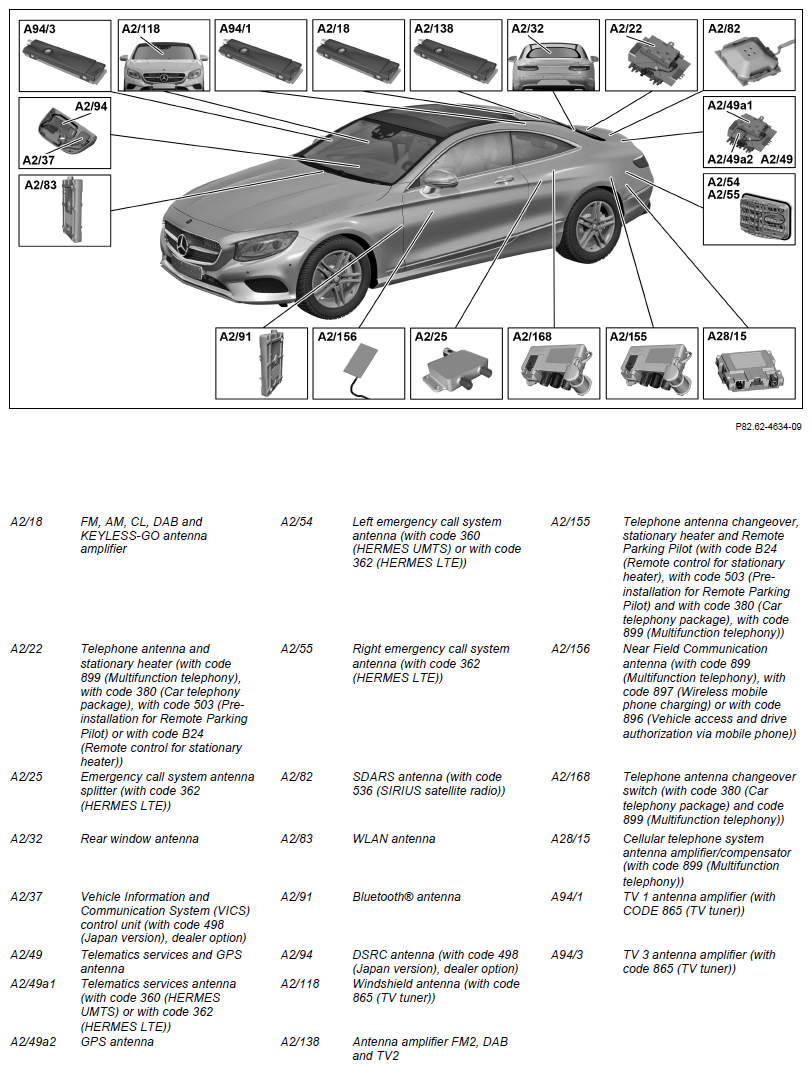

Telematics antenna system, shown on model 217.3
Telematics antenna system, shown on model 217.4

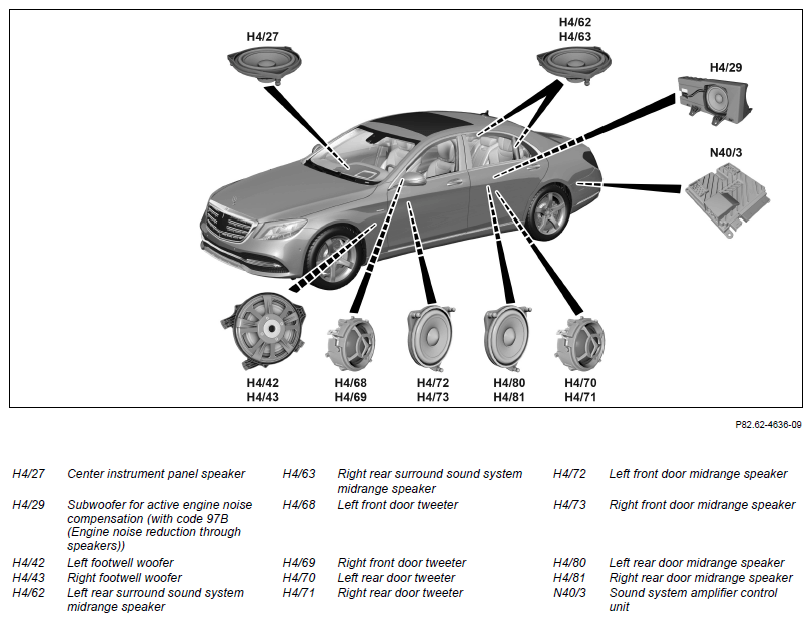

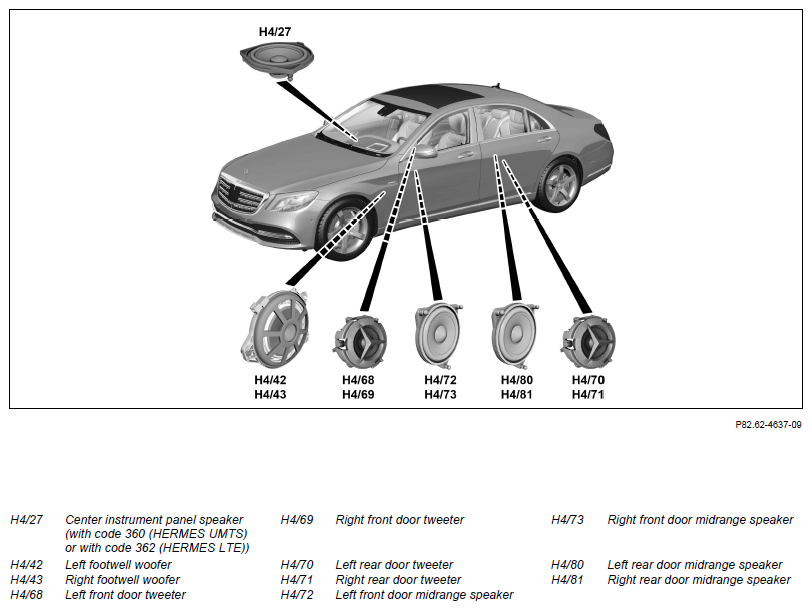

Speaker system except code 810 (Sound system) and except code 811 (Advanced sound system), shown on model 222.0

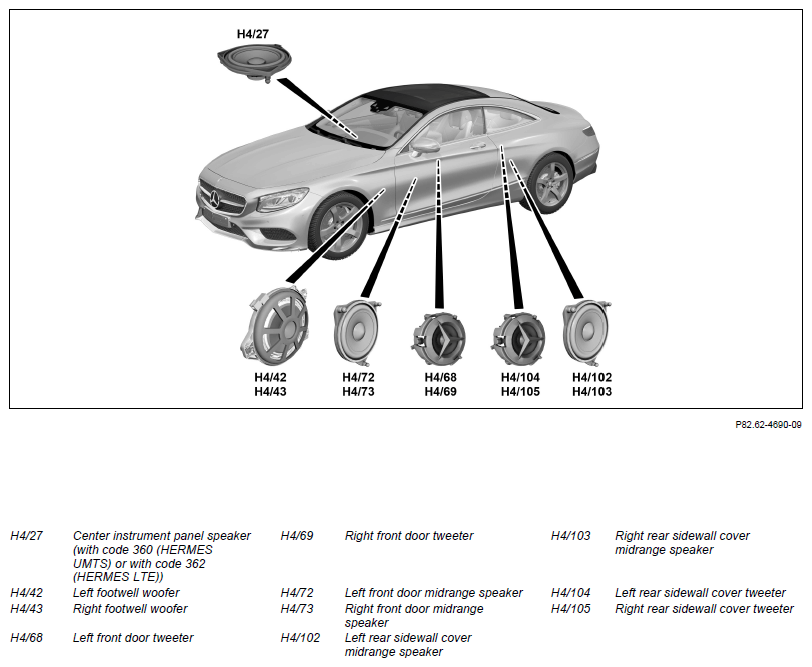

Speaker system, except code 810 (Sound system) and except code 811 (Advanced sound system), shown on model 217.3, also valid for model 217.4

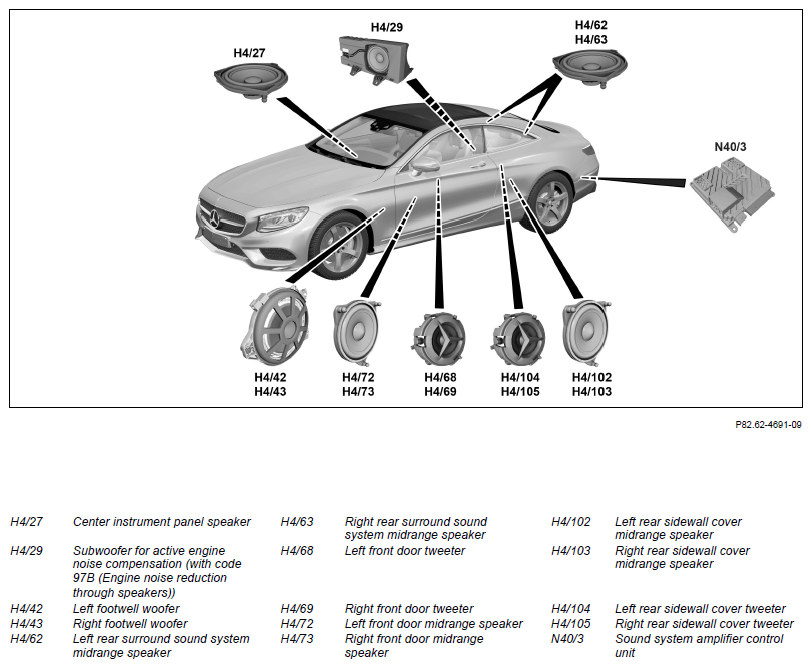

Speaker system with code 810 (Sound system), shown on model 222.0
Speaker system with code 810 (Sound system), shown on model 217.3, also valid for model 217.4

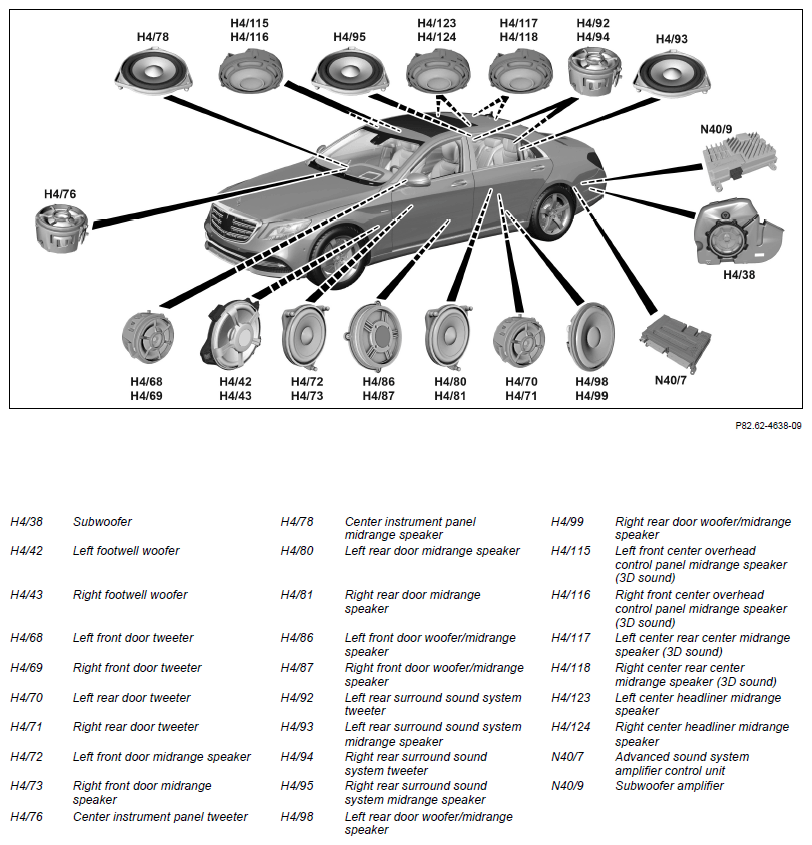

Speaker system with code 811 (Advanced sound system), shown on model 222.0

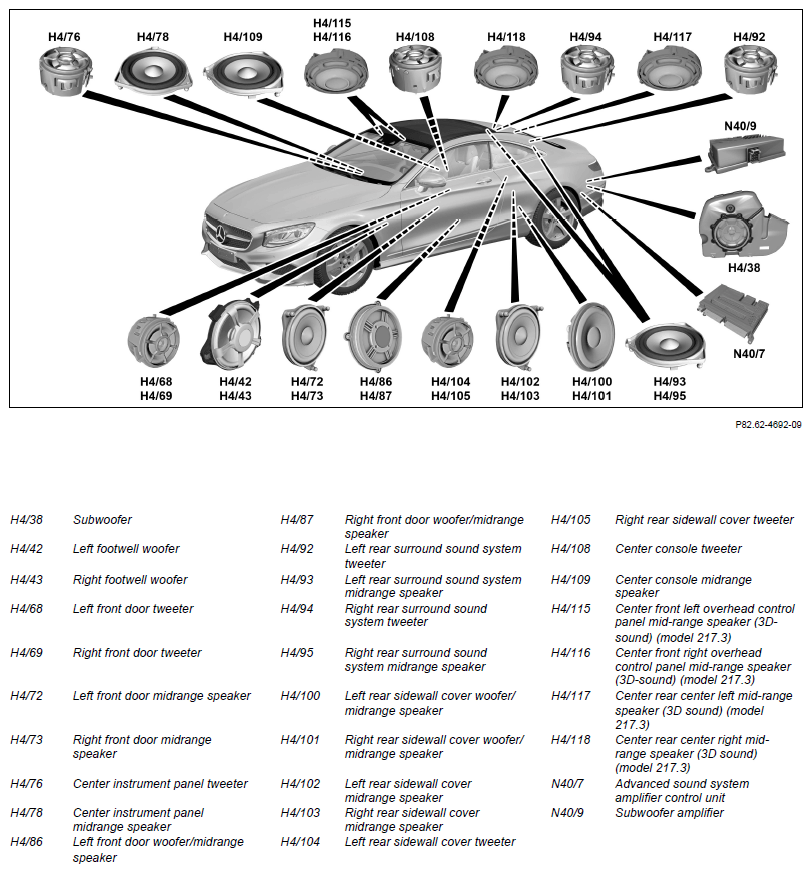

Speaker system with code 811 (Advanced sound system), shown on model 217.3, also valid for model 217.4
| Component description for instrument cluster | A1 | GF54.30-P-6000LFM | |
| Head unit, component description | A26/17 | GF82.85-P-3140LFM | |
| Rear entertainment system controller unit, component description | Model 222 as of model year 2018 with code 864 (Rear compartment entertainment package) A26/18 | GF82.90-P-4021LFM | |
| Component description for rear display left/right | Model 222 as of model year 2018 with code 864 (Rear compartment entertainment package) A40/5, A40/6 | GF82.90-P-4020LF | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150LFM | |
| Component description for Audio/COMAND control panel | Model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 | GF54.21-P-4501LFM | |
| Touchpad, component description | Model 217, 222 as of model year 2018 with code 446 (Touchpad only) Model 217, 222 as of model year 2018 with code 448 (Touchpad) A105 |
GF54.21-P-4511LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for ME-SFI (ME) control unit | Model 217, 222 with engine 176.9, 177.9 as of model year 2018 N3/10 | GF07.61-P-6000MNL | |
| Component description for ME-SFI (ME) control unit | Model 217 with engine 279 as of model year 2018 Model 222 with engine 277, 279 as of model year 2018 N3/10 |
GF07.61-P-6000MUB | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.173) as of model year 2018 N30/4 | GF42.45-P-5119LFM | |
| Model 222.173 as of model year 2018 N30/4 | GF42.45-P-5119LFA | ||
| Component description for sound system amplifier control unit | Model 217, 222 as of model year 2018 with code 810 (Sound system) except code 811 (Advanced sound system) N40/3 | GF82.62-P-5010LF | |
| Component description for sound system amplifier control unit | Model 217, 222 as of model year 2018 with code 811 (Advanced sound system) N40/7 | GF82.62-P-5010LFM | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) N62/4 | GF30.30-P-3312LFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for overhead control panel control unit | N70, S93/3 | GF82.20-P-5216LF | |
| Lower control panel, component description | Model 217, 222 as of model year 2018 with code 446 (Touchpad only) N72 | GF54.25-P-4270LFM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LFM | |
| HERMES control unit, component description | Model 217, 222 as of model year 2018 with code 360 (HERMES UMTS) Model 217, 222 as of model year 2018 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221LF | |
| Mobile phone cradle control unit component description | Model 217, 222 as of model year 2018 with code 896 (Vehicle access and drive authorization via mobile phone) Model 217, 222 as of model year 2018 with code 897 (Wireless mobile phone charging) Model 217, 222 as of model year 2018 with code 899 (Multifunction telephony) N123/8 |
GF82.70-P-0201LFM | |
| Telephone control unit, component description | Model 217, 222 as of model year 2018 with code 380 (Car telephony package) N123/9 | GF82.70-P-4153LFM | |
| Rear mobile phone cradle control unit, component description | Model 222 as of model year 2018 with code 856 (Business telephony in rear passenger compartment) with code 898 (Wireless charging in rear) N123/10 | GF82.70-P-0202LFM | |
| Drivetrain control unit, component description | Model 222.173 with engine 276.8 as of model year 2018 N127 | GF54.21-P-2141MMK | |
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006LFM | |
| Digital TV tuner, component description | Model 217, 222 as of model year 2018 with code 865 (TV tuner) N143 | GF82.60-P-3118LFM | |
| Table of contents for function description, telematics | GF82.85-P-0993LF |
