Remove/Install Upper Part Of Center Console - AR68.20-P-2012LF

Model 217, 222

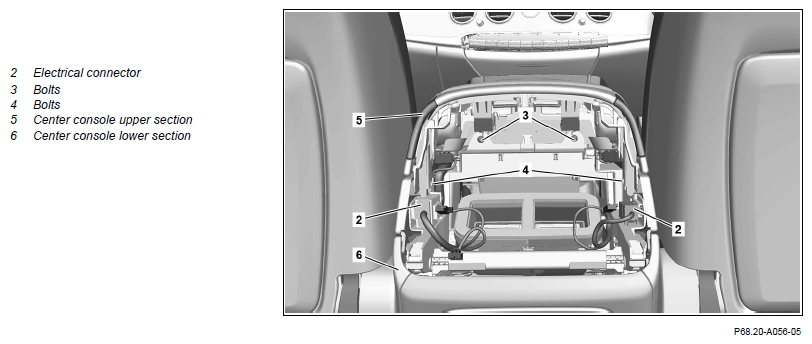

Shown on model 222 from model year 2018

Courtesy of MERCEDES-BENZ USA

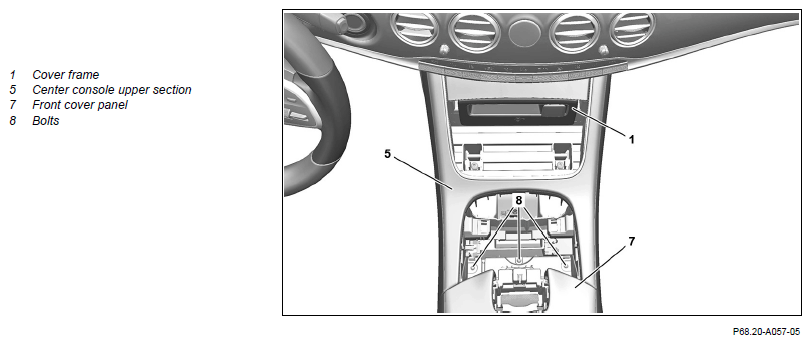

Shown on model 222 from model year 2018

Courtesy of MERCEDES-BENZ USA

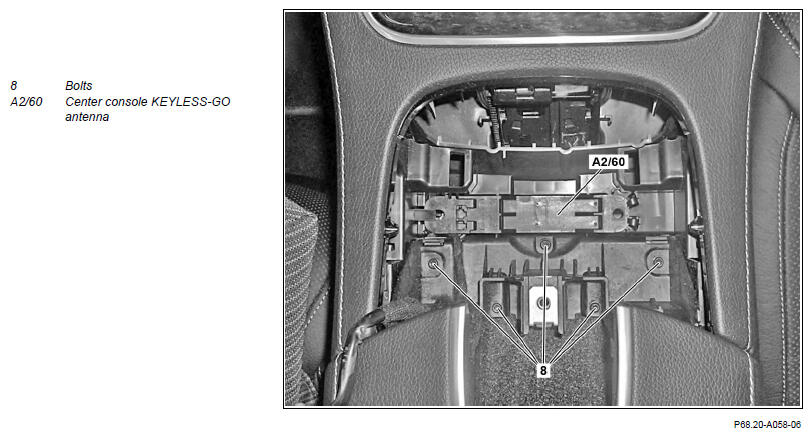

Shown on model 222 up to model year 2018 with code 889 (KEYLESS-GO)

Courtesy of MERCEDES-BENZ USA

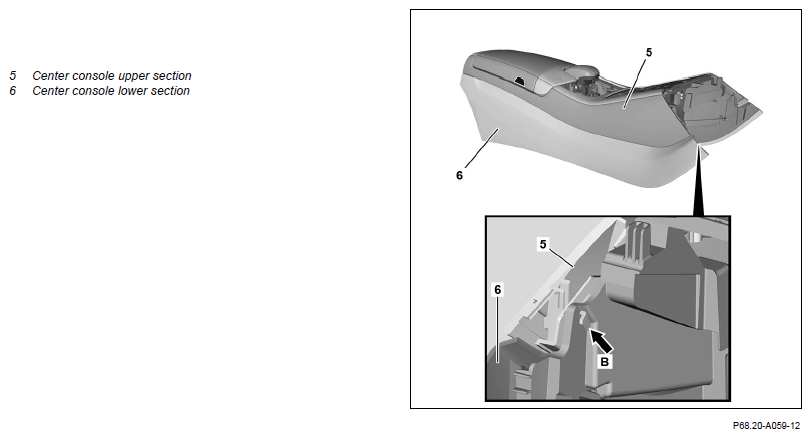

Shown in removed state

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front central operating unit control unit.		AR54.21-P-0500LF
2	Unclip cover frame (1) at front using suitable tool.
3	Release, disconnect electrical connector at 12 V socket and remove cover frame (1).
4	Remove rear cover from center console.		AR68.20-P-2358LF
5	Remove, release and disconnect electrical connectors (2) from center console lower section (6).
6	Remove screws (3).
7	Loosen screws (4).
8	Unclip front cover panel (7) on left and right.
9	Release and disconnect electrical connector a front cover panel (7).	Model 217, 222 with code 906 (Front armrest heater)
10	Remove front cover panel (7).
11	Remove screws (8).
12	Close cover of armrest at center console upper section (5).
13	Lift center console upper section (5) at rear and remove toward rear from center console lower section (6).	: Insert guides (arrow B) into center console lower section (6).
14	Remove center console KEYLESS-GO antenna (A2/60).	Model 217, 222 with code 889 (KEYLESS-GO) When replacing from center console upper section (5).
		Model 222 up to model year 2018 with code 889 (KEYLESS-GO)	AR80.61-P-0041LF
		Model 217, 222 as of model year 2018 with code 889 (KEYLESS-GO)	AR80.61-P-0041LFM
15	Install in the reverse order.
