Remove/Install Center Console Keyless-Go Antenna - AR80.61-P-0041LFM
Model 217, 222
as of model year 2018
with code 889 (KEYLESS-GO)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove upper part of center section | AR68.20-P-2012LF | |

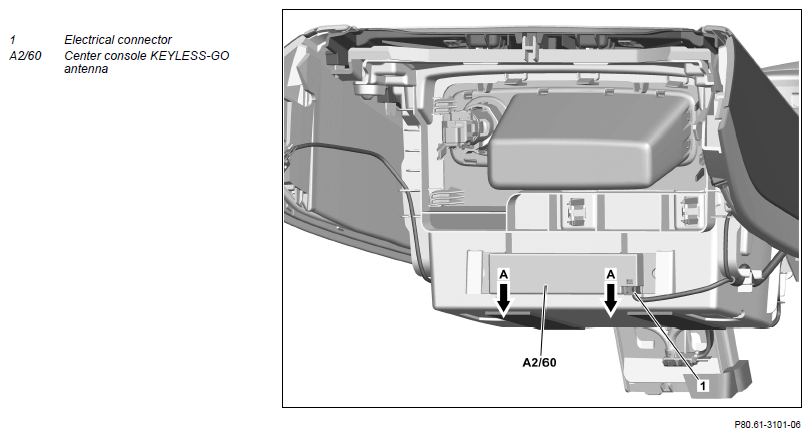

| 2 | Disconnect electrical connector (1) | ||
| 3 | Unclip center console KEYLESS-GO antenna (A2/60) in downward direction (arrows A) | ||
| 4 | Install in the reverse order |
