Remove/Install Center Console - AR68.20-P-2000LFM
Model 217, 222
as of model year 2018

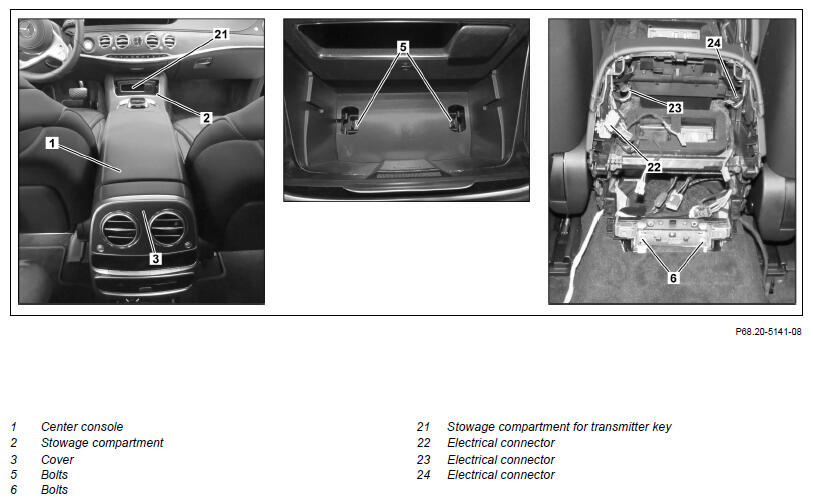

Shown on model 222.1 as of model year 2018 with code 582 (Air conditioning system in rear) and P46 (Rear seat entertainment package)
Shown on model 222.1 as of model year 2018 with code 582 (Air conditioning system in rear) and P46 (Rear seat entertainment package)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Remove/install | |||
| 1 | Open stowage compartment (2) | ||
| 2 | Remove stowage compartment for transmitter key (21) | AR68.10-P-1512LFM | |
| 3 | Remove rubber insert from stowage compartment (2) | ||
| 4 | Remove bolts (5) | ||
| 5 | Remove cover (3) on center console (1) | AR68.20-P-2350LF | |
| 6 | Remove cup holder in rear | Model 222.1/9 as of model year 2018 with code 224 (Rear individual seat design) |
|
| AR68.00-P-5204LF | |||
| 7 | Remove rear entertainment unit (A26/18) | Model 222 as of model year 2018 with code P46 (Rear-Seat Entertainment Package) except code 224 (Rear individual seat design) |
|
| AR82.60-P-7697LF | |||

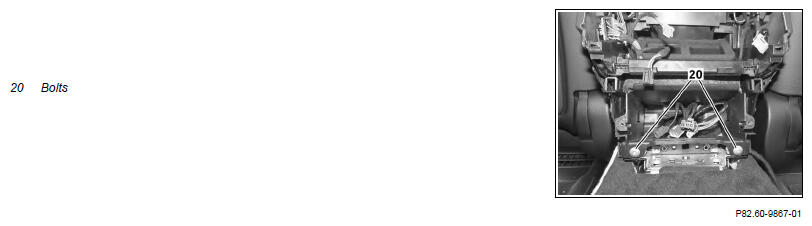

| 8 | Remove screws (20) and remove bracket of rear seat entertainment system control unit (A26/18) | Model 222 as of model year 2018 with code P46 (Rear-Seat Entertainment Package) except code 224 (Rear individual seat design) |
|
| 9 | Disconnect electrical connector (22) | ||
| 10 | Disconnect electrical connection (23) | ||
| 11 | Disconnect electrical connector (24) | ||
| 12 | Open cover of center console (1) armrest | ||
| 13 | Remove rear center console | Model 217 as of model year 2018 Model 222.1/9 as of model year 2018 with code 224 (Rear individual seat design) |
|
| Model 217 as of model year 2018 |
AR68.20-P-2020LC | ||
| Model 222.1/9 as of model year 2018 with code 224 (Rear individual seat design) |
AR68.20-P-2020LF | ||
| 14 | Remove center stowage compartment | Model 217.3, 222 as of model year 2018 |
AR68.10-P-1620LFM |
| Model 217.4 as of model year 2018 |
AR68.10-P-1620LFA | ||
| 15 | Remove bolts (6) | ||
| 16 | Close cover of center console (1) armrest | ||
| 17 | Lift center console (1) and remove from vehicle | ||
| 18 | Install in the reverse order |
