Remove/Install Rear Center Console - AR68.20-P-2020LF

Model 222.1/9

with code 224 (Individual rear seats)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Remove/install
1	Move driver and passenger seat toward front
2	Remove trim piece behind rear seat		AR68.30-P-1460LF

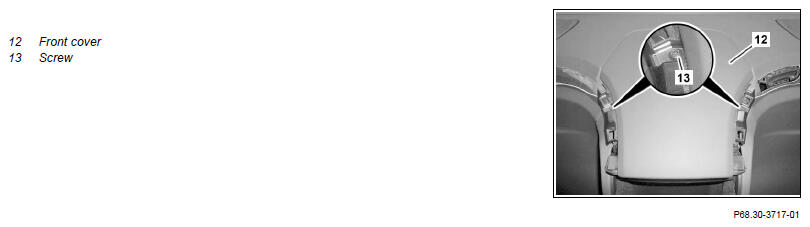

3	Unscrew bolts (13) and remove front cover (12) from rear shelf	Pull front cover (12) toward front and lift. : Ensure that front cover (12) is positively locked on rear shelf.
4	Unclip stowage tray	Model 222.1 with code 224 (Individual rear seats) except code 864 (Rear compartment entertainment package) The stowage tray has the same fastenings points as the trim plate (14).

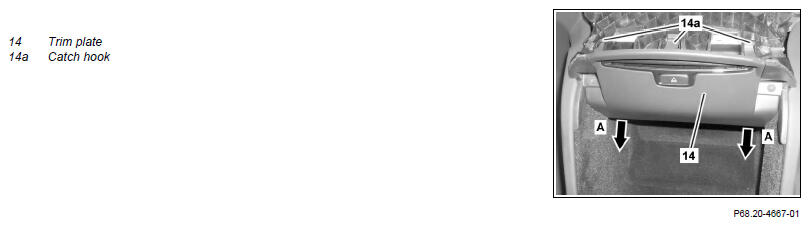

5	Unclip trim plate (14)	Model 222.1/9 with code 224 (Individual rear seats) with code 864 (Rear compartment entertainment package) Unclip trim plate (14) first at bottom (arrows) and then from catch hooks (14a) at top.

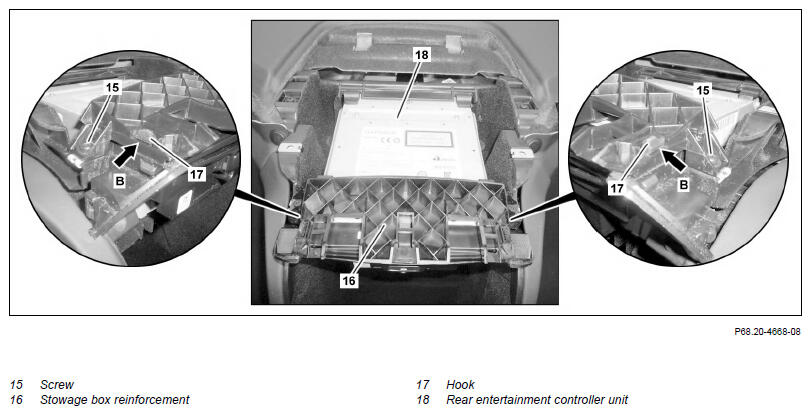

6	Remove screws (15)	Model 222.1/9 with code 224 (Individual rear seats) with code 864 (Rear compartment entertainment package)
7	Press hook (17) in direction of arrow (B) and remove stowage box reinforcement (16)	Model 222.1/9 with code 224 (Individual rear seats) with code 864 (Rear compartment entertainment package)
8	Lift rear entertainment (18) control unit and disconnect electrical connectors from rear entertainment control unit (18)	Model 222.1/9 with code 224 (Individual rear seats) with code 864 (Rear compartment entertainment package)

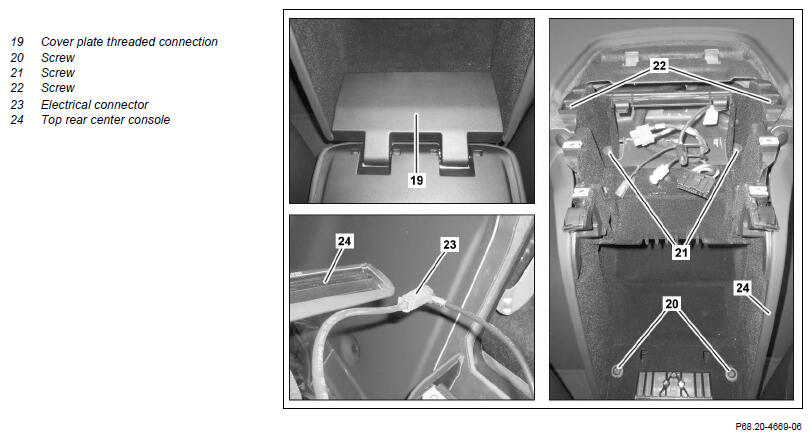

9	Unclip cover plate threaded connection (19)
10	Unscrew bolts (22) from rear shelf
11	Unscrew screws/bolts (20)	: Lay top rear center console (24) down on bottom rear center console (25).
12	Remove screw/bolt (21)	: Press top rear center console (24) downward and toward rear when screwing in.
13	Remove top rear center section (24) and disconnect electrical connector (23)	: On vehicles with CODE 864 (Rear entertainment system) route electrical line for DVD.
14	Remove cover (31) on center console		AR68.20-P-2350LF
15	Remove left and right backrest	Model 222.1/9 with code 224 (Individual rear seats)	AR91.12-P-1620LFA
16	Disconnect battery ground line	Model 222.1/9 with code 224 (Individual rear seats) with code U67 (230 V socket in rear passenger compartment) Model 222.1 with code 224 (Individual rear seats) with code U80 (115 V socket)
			AR54.10-P-0003LF
17	Remove socket 115V/230V	Model 222.1/9 with code 224 (Individual rear seats) with code U67 (230 V socket in rear passenger compartment) Model 222.1 with code 224 (Individual rear seats) with code U80 (115 V socket)
			AR54.10-P-1002LFA

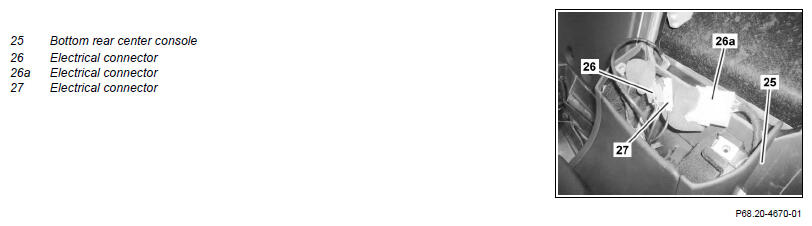

18	Disconnect electrical connectors (26, 26a, 27)	The number of electrical connectors depends on the vehicle equipment.

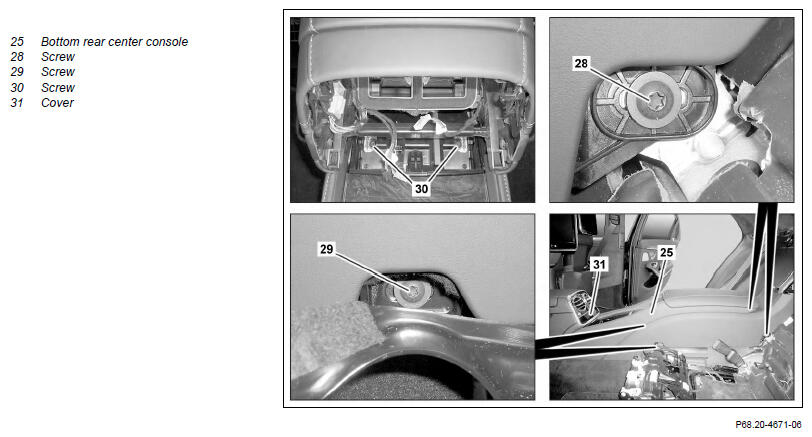

19	Remove screw/bolts (28)
20	Remove screw/bolts (29)
21	Remove screws (30)
22	Remove bottom rear center console (25) from vehicle	Use aid of helper.
23	Install in the reverse order
