Remove/Install Cup Holder In Rear - AR68.00-P-5204LF

Model 222.1/9

with code 224 (Individual rear seats)

Shown on vehicle with CODE 449 (Folding table in rear)

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with CODE 449 (Folding table in rear) and except CODE 856 (Business telephone in rear)

Courtesy of MERCEDES-BENZ USA

Shown on vehicles except CODE 449 (Folding table in rear)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove folding tables	Model 222.1/9 with code 224 (Individual rear seats) with code 449 (Folding table in the rear, left and right)	AR68.20-P-8305LF

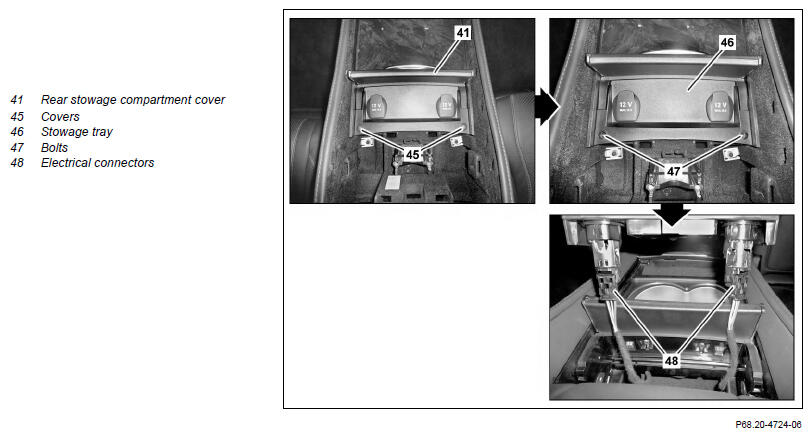

2	Open rear stowage compartment cover (41)

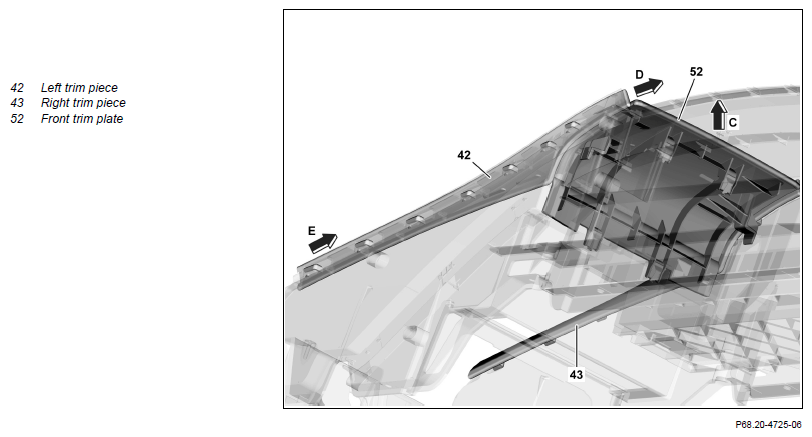

3	Unclip front trim plate (52)	Model 222.1/9 with code 224 (Individual rear seats) Unclip front trim plate (52) upward (arrow C).
4	Remove covers (45)
5	Remove screws (47)
6.1	Lift stowage tray (46) and disconnect electrical connectors (48)	Model 222.1/9 with code 224 (Individual rear seats)
6.2	Lift mount and disconnect electrical connectors	Model 222.1/9 with code 224 (Individual rear seats)
7	Close rear stowage compartment cover (41)

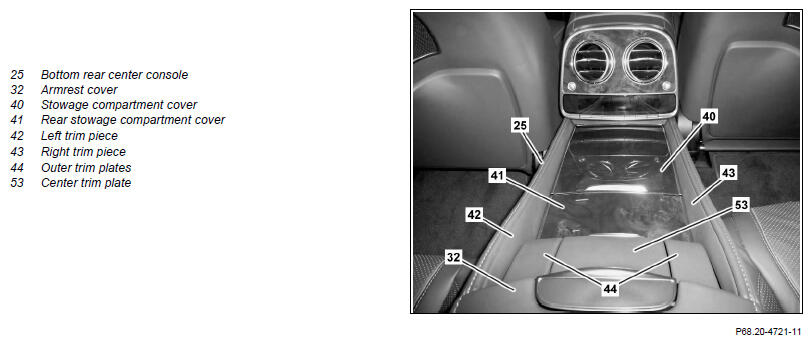

8	Remove cover on center console		AR68.20-P-2350LF
9	Remove left trim piece (42) and right trim piece (43)	Removal:  Slightly pull left trim piece (42) and right trim piece (43) in rear area toward inside (arrow D) and then press from front toward rear (arrow E).

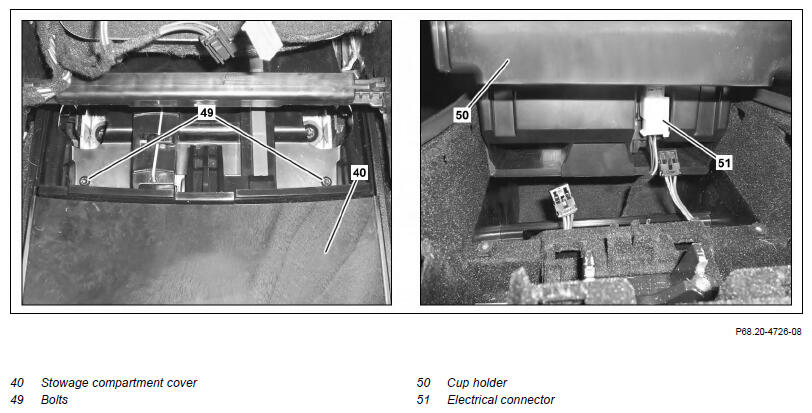

10	Remove bolts (49)
11	Lift cup holder (50) and disconnect electrical connector (51)
12	Remove cup holder (50)
13	Install in the reverse order
