Overview Of System Components For Theft Protection And Locking - GF80.00-P-9999LF
Model 217, 222
Central locking system (CL) without locking system, shown on model 222 as of 01.06.2017
Locking system of central locking system (CL), shown on model 222 as of 01.06.2017
Model 217.4
A glove box central locking actuating motor (M14/18) is installed in addition.

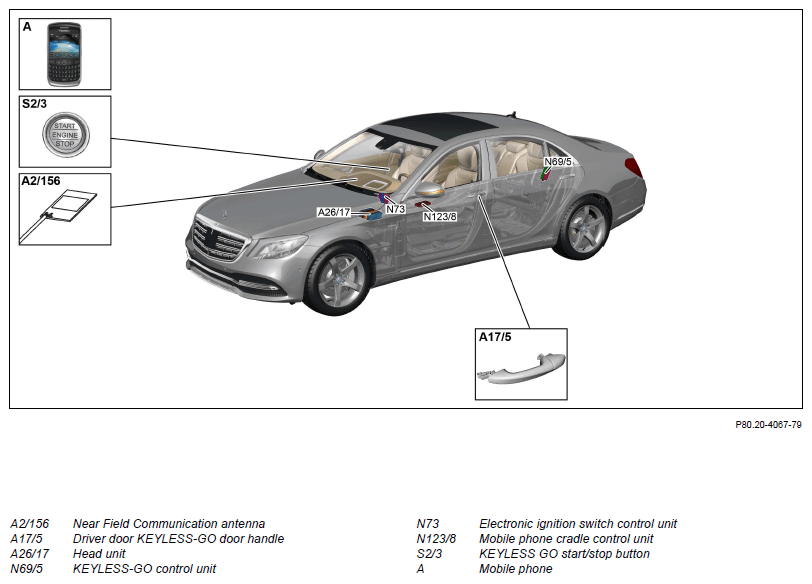

Digital key in smartphone (with code 896 (Vehicle access and drive authorization via mobile phone)), shown on model 222 as of 01.06.2017

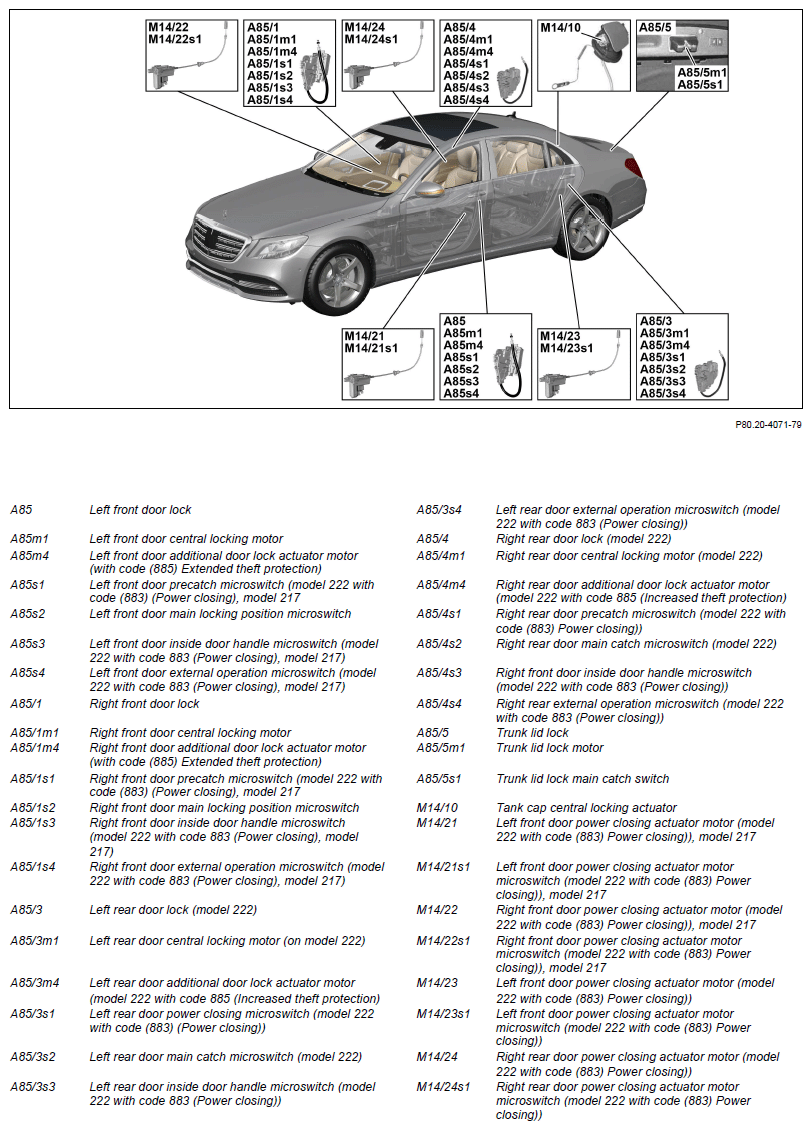

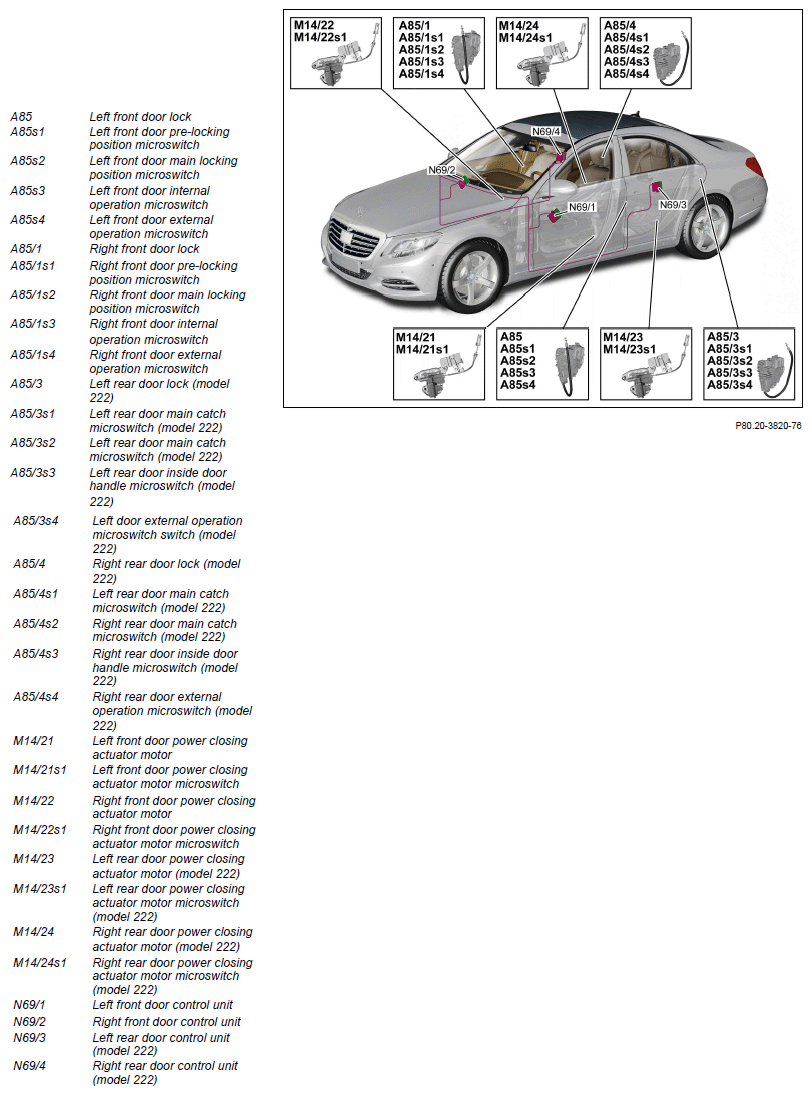

Power closing function (model 222 with code 883 (Power closing function), model 217), shown on model 222.0 up to 31.05.2017

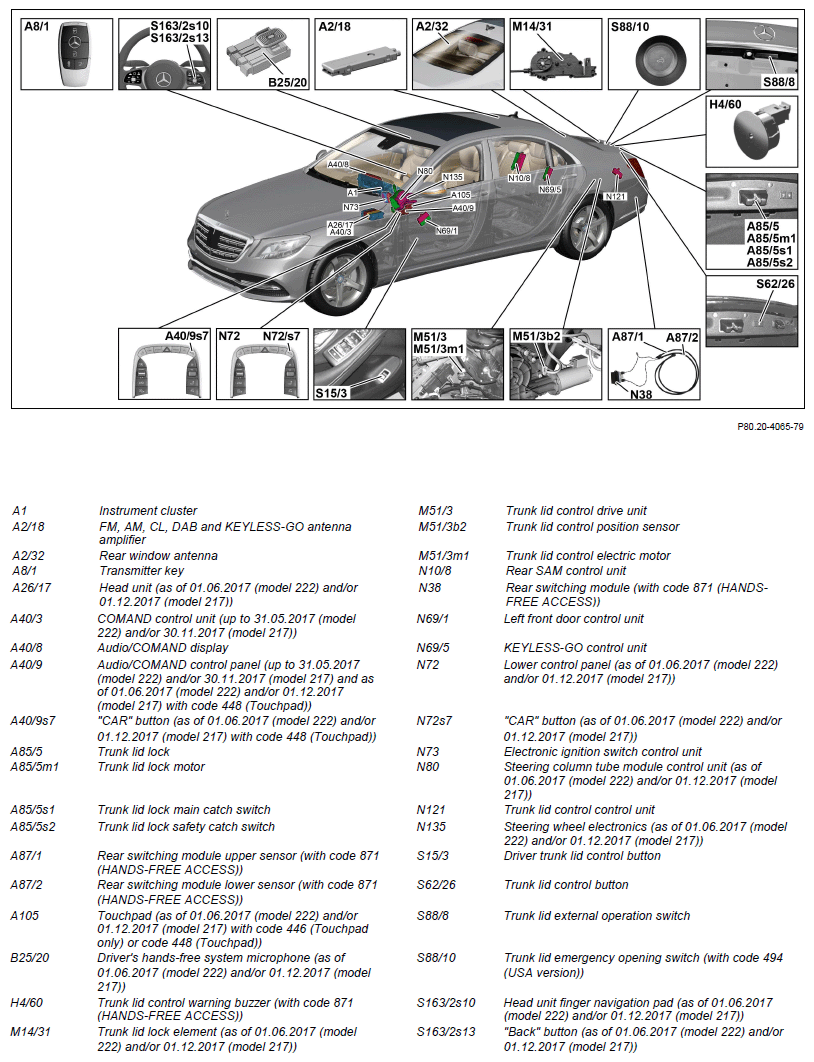

Trunk lid control (model 222 with code 881 (Remote trunk closing), model 217.3), shown on model 222 as of 01.06.2017

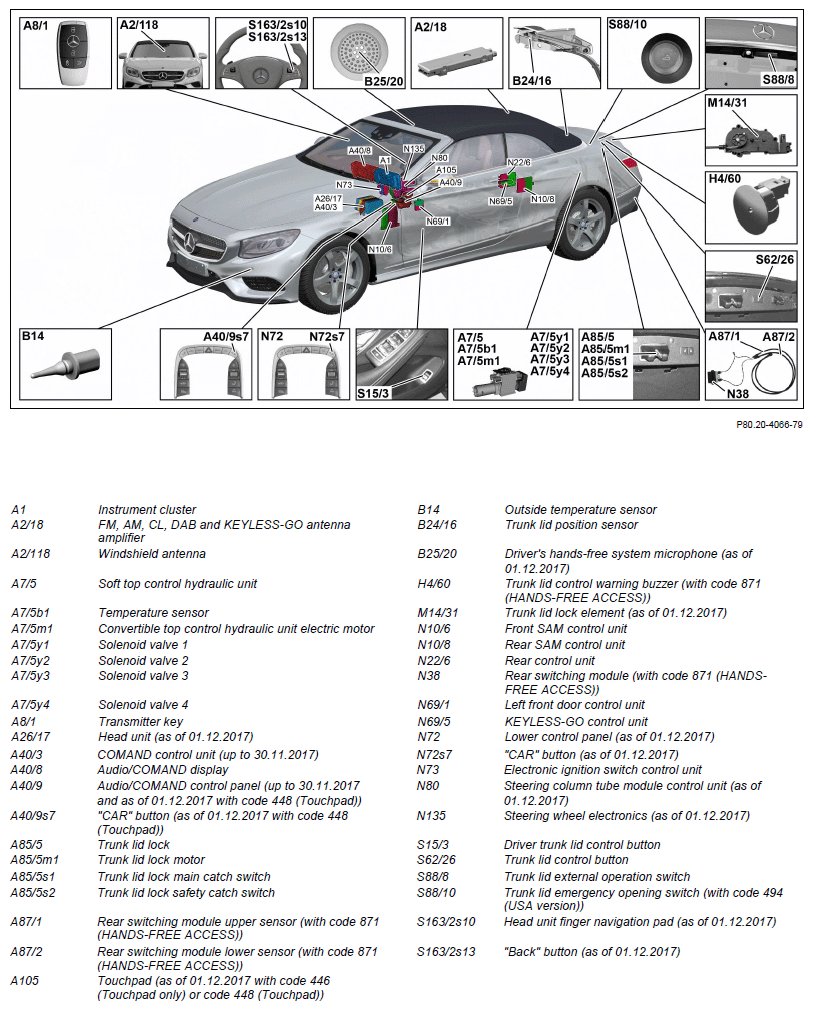

Trunk lid control (model 217.4), shown on model 217.4 as of 01.12.2017

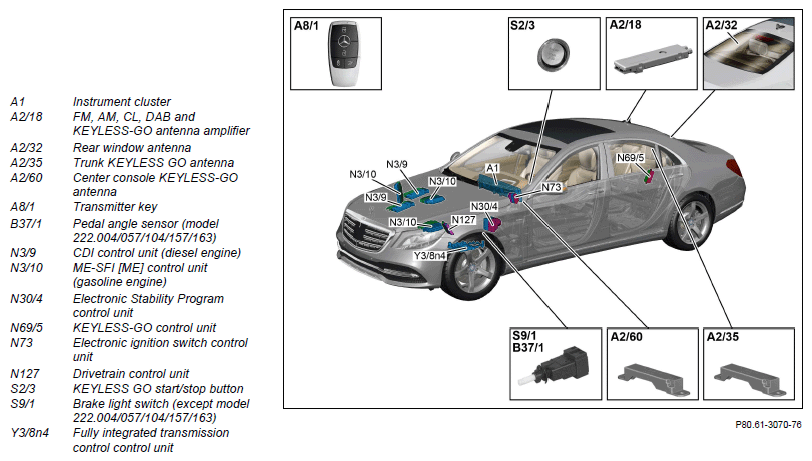

KEYLESS-GO start function (except code 889 (KEYLESS-GO)), shown on model 222 as of 01.06.2017

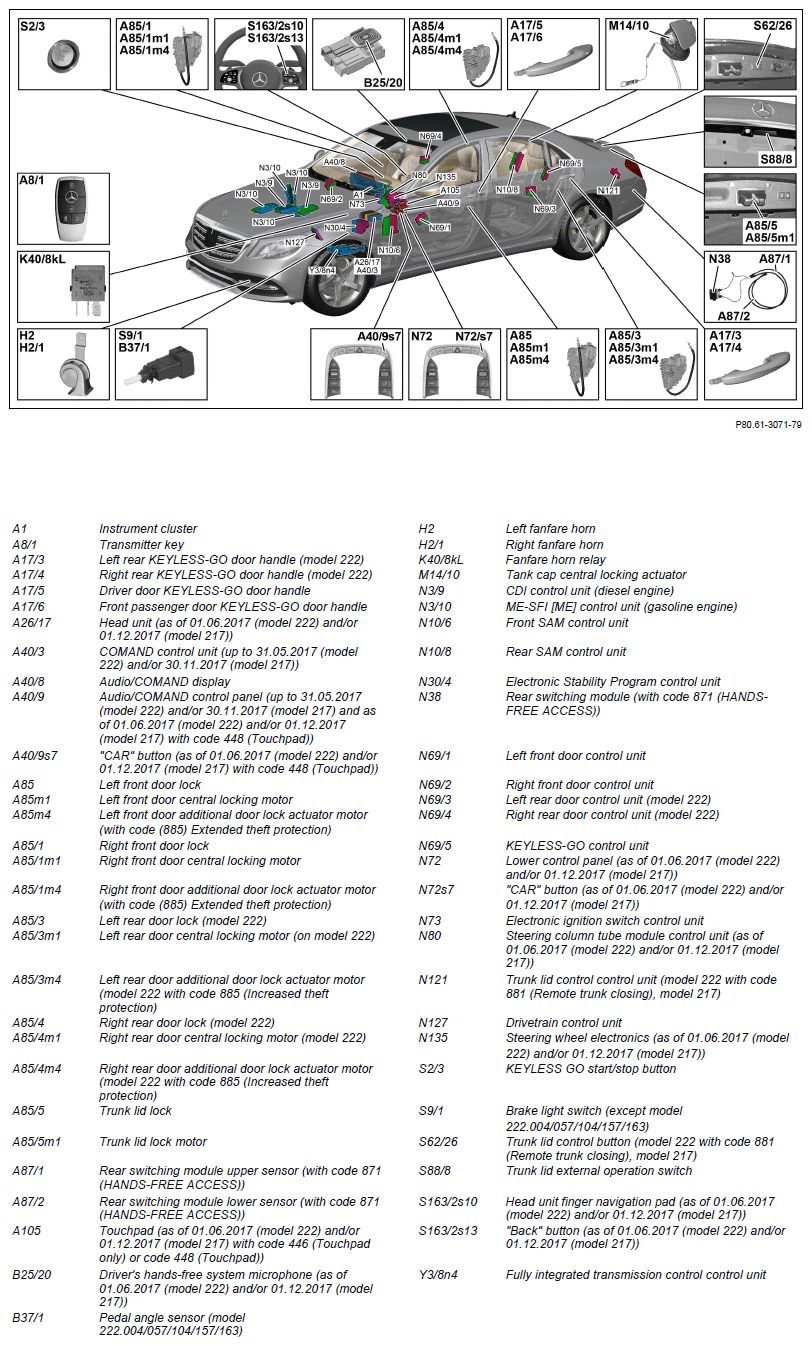

KEYLESS-GO without antenna system (with code 889 (KEYLESS-GO)), shown on model 222 as of 01.06.2017
Model 217.4
A glove box central locking actuating motor (M14/18) is installed in addition.

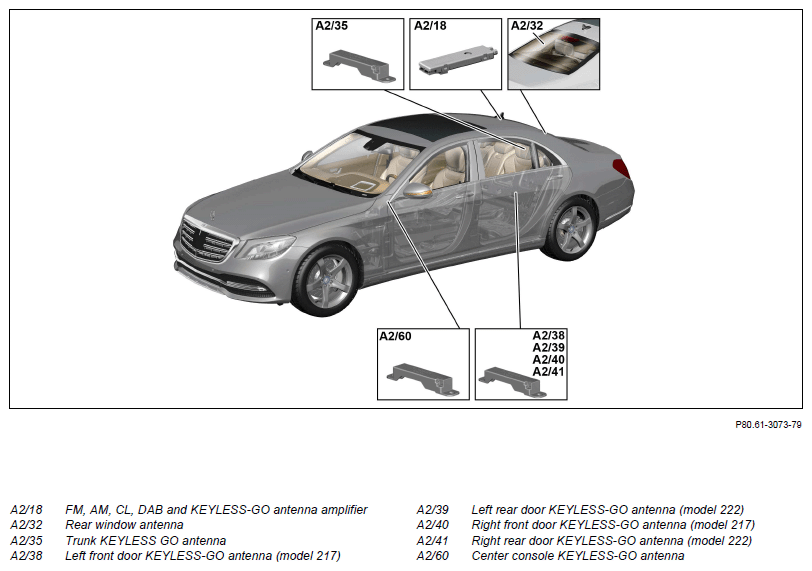

KEYLESS-GO antenna system (with code 889 (KEYLESS-GO)), shown on model 222 as of 01.06.2017
Model 217.4
Windshield antenna (A2/118) is installed instead of rear window antenna.

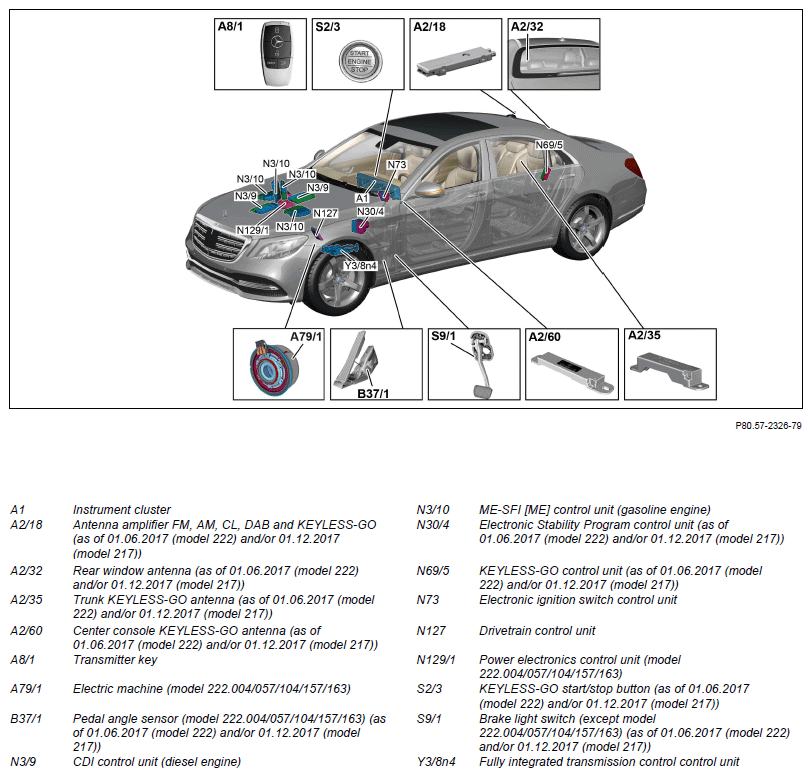

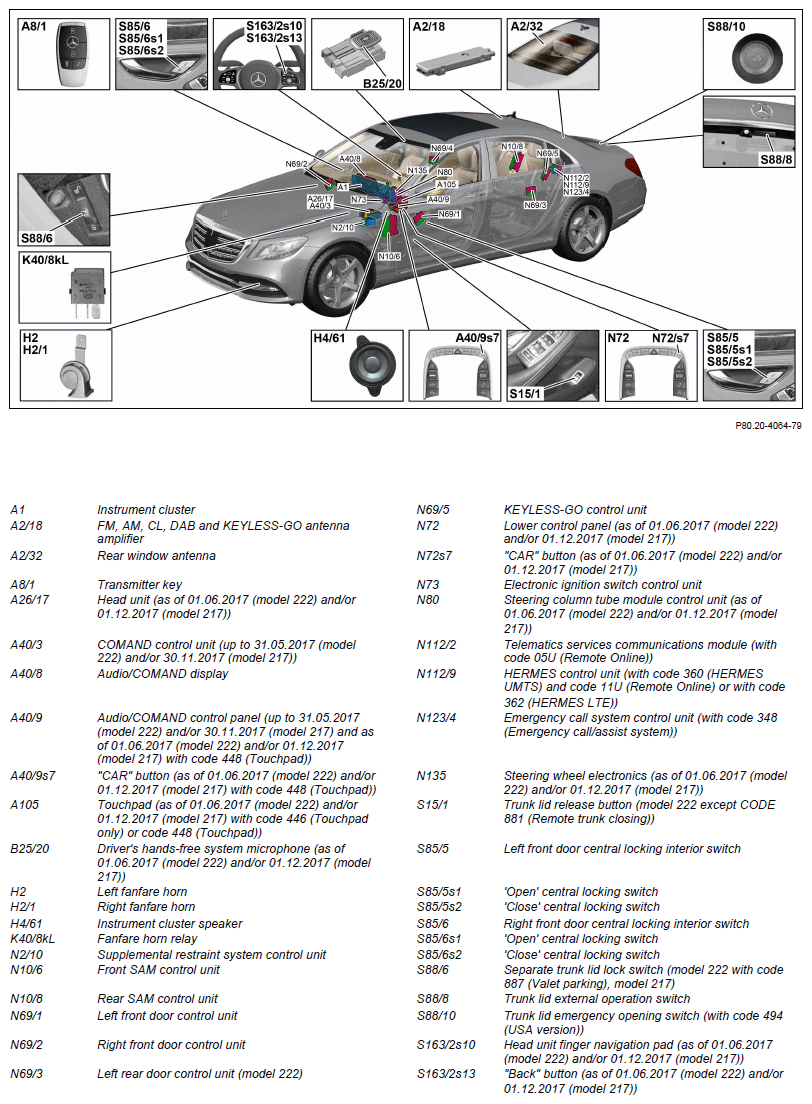

Drive authorization system stage 4 (DAS 4), shown on model 222 as of 01.06.2017
Model 217.4
Windshield antenna (A2/118) is installed instead of rear window antenna.

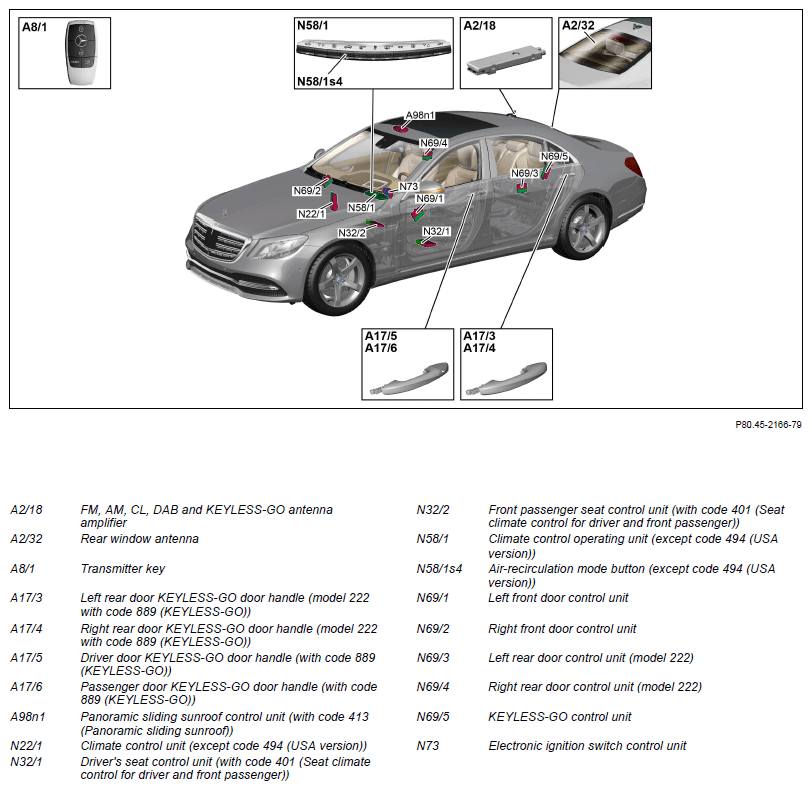

Convenience feature (CF), shown on model 222 as of 01.06.2017
Model 217.4
The rear control unit (N22/6) is also installed.

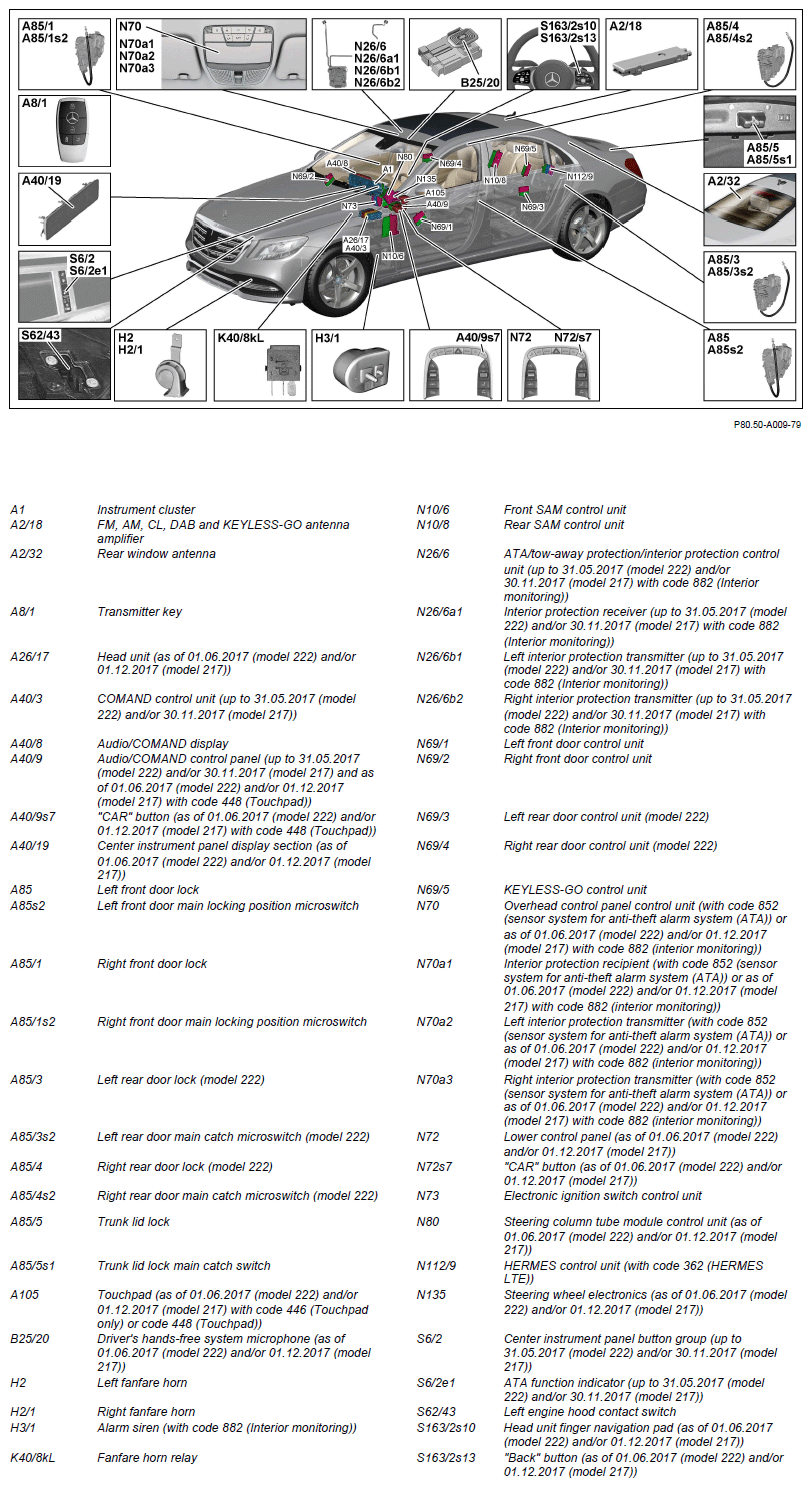

Anti-theft alarm system (ATA) (model 222, 217.3 with code 551 (Anti-theft alarm system (ATA))), shown on model 222 as of 01.06.2017

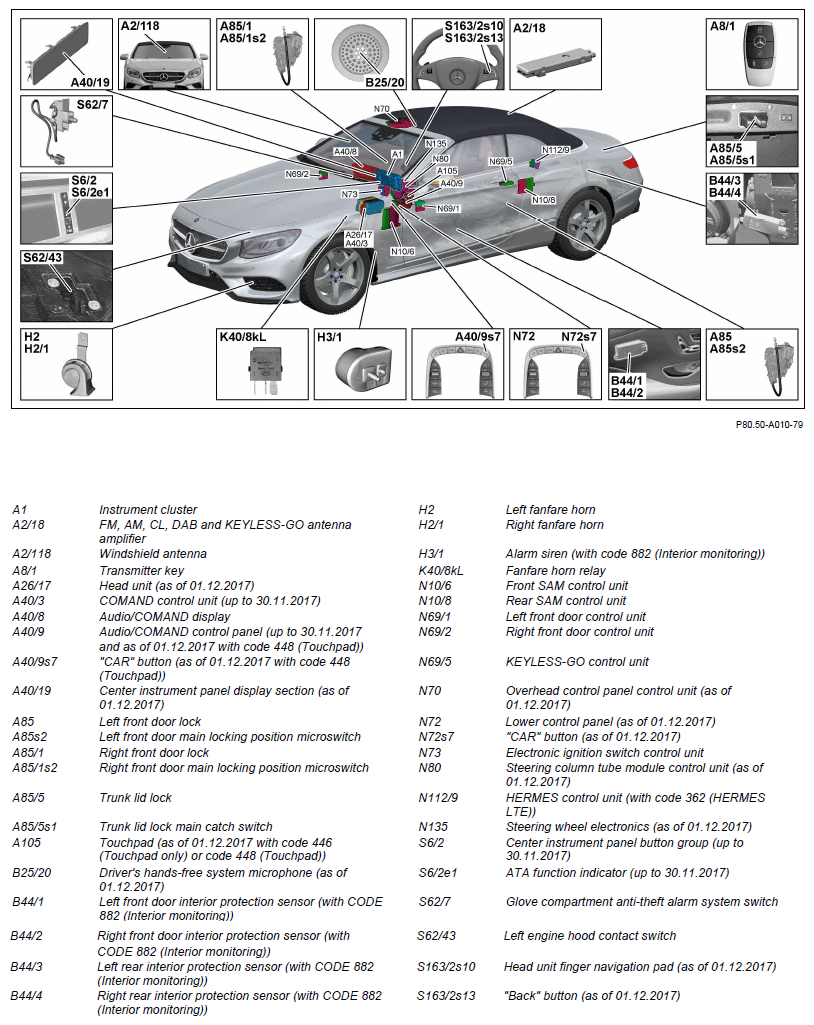

Anti-theft alarm system (ATA) (model 217.4 with code 551 (Anti-theft alarm system (ATA))), shown on model 217.4 as of 01.12.2017

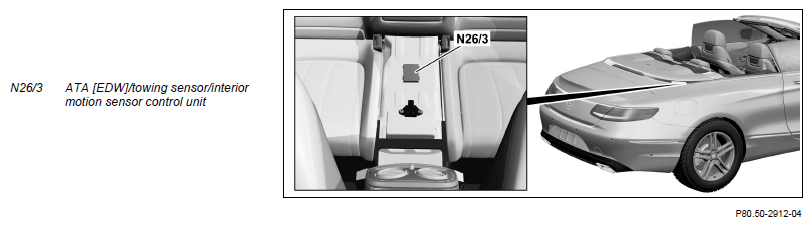

Model 217.4 with code 551 (Anti-theft warning system) with code 882 (Interior motion sensor)
The anti-theft alarm system/tow-away protection/interior protection control unit (N26/3) are installed up to 30.11.2017.
Model 217.4 with code 551 (Anti-theft alarm system (ATA)) up to 30.11.2017
| Component description for instrument cluster | Model 217, 222 up to model year 2018 A1 | GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 A1 | GF54.30-P-6000LFM | ||
| Head unit, component description | Model 217, 222 as of model year 2018 A26/17 | GF82.85-P-3140LFM | |
| Component description for COMAND controller unit | Model 217, 222 up to model year 2018 A40/3 | GF82.85-P-3136LF | |
| Component description for Audio/COMAND display | Model 217, 222 up to model year 2018 A40/8 | GF54.30-P-6150LF | |
| Model 217, 222 as of model year 2018 A40/8 | GF54.30-P-6150LFM | ||
| Component description for Audio/COMAND control panel | Model 217, 222 up to model year 2018 A40/9 | GF54.21-P-4501LF | |
| Model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 | GF54.21-P-4501LFM | ||
| Component description for panoramic sliding roof control module | Model 222 with code 413 (Automatic panoramic sliding sunroof) A98n1 | GF77.20-P-4106LF | |
| Touchpad, component description | Model 217, 222 as of model year 2018 with code 446 (Touchpad only) Model 217, 222 with code 448 (Touchpad) A105 |
GF54.21-P-4511LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | Model 222 with engine 642.8 N3/9 | GF07.16-P-6000OGS | |
| Model 222 with engine 651.9 N3/9 | GF07.16-P-6000OLA | ||
| Component description for ME-SFI (ME) control unit | Model 222 with engine 276.9 N3/10 | GF07.61-P-6000MMK | |
| Model 217, 222 with engine 157.9, 278.9 N3/10 | GF07.61-P-6000MML | ||
| Model 222 with engine 276.8 N3/10 | GF07.61-P-6000MMT | ||
| Model 217 with engine 279 Model 222 with engine 277, 279 N3/10 |
GF07.61-P-6000MUB | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Rear control unit, component description | Model 217.4 N22/6 | GF54.21-P-4134LF | |
| ATA/tow-away protection/interior protection control unit, component description | Model 217, 222 up to model year 2018 with code 882 (Interior motion sensor) N26/3, N26/6 | GF80.50-P-4131LF | |
| Component description for Electronic Stability Program control unit | Model 222.173 as of model year 2018 N30/4 | GF42.45-P-5119LFA | |
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 | GF42.45-P-5119LFM | ||
| Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 N30/4 | GF42.45-P-5119LF | ||
| Model 222.004/057/104/157/163 up to model year 2018 N30/4 | GF42.45-P-5119LFH | ||
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231LF | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241LF | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 N69/3, N69/4 | GF72.29-P-6021LF | |
| Component description for KEYLESS-GO control unit | N69/5 | GF80.61-P-4204LF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216LF | |
| Lower control panel, component description | Model 217, 222 as of model year 2018 with code 446 (Touchpad only) N72 | GF54.25-P-4270LFM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | Model 217, 222 as of model year 2018 N80 | GF54.21-P-6051LFM | |
| Telematics services communications module, component description | Model 217, 222 up to model year 2017 with code B54 (Live Traffic Information) N112/2 | GF82.85-P-0220LF | |
| HERMES control unit, component description | Model 217, 222 with code 360 (HERMES UMTS) Model 217, 222 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221LF | |
| Trunk lid control unit, component description | Model 217.3 Model 222 with code 881 (Remote boot lid closing) N121 |
GF80.20-P-6050LF | |
| Component description for emergency call system control unit | Model 217, 222 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212LFU | |
| Mobile phone cradle control unit component description | Model 217, 222 with code 896 (Vehicle access and drive authorization via mobile phone) N123/8 | GF82.70-P-0201LFM | |
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 Model 222 with engine 176.9, 177.9, 256.9 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 Model 222.163/173 with engine 276.8 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 N127 | GF54.21-P-2141OGS | ||
| Model 222 with engine 651.9 N127 | GF54.21-P-2141OLA | ||
| Model 222 with engine 656.9 N127 | GF54.21-P-2141OIA | ||
| Component description for power electronics control unit | Model 222.004/104 with engine 651.9 222.057/157 with engine 276 Model 222.163 with engine 276 N129/1 |
GF08.20-P-1001LFH | |
| Steering wheel electronics control unit, component description | Model 217, 222 as of model year 2018 N135 | GF82.90-P-4006LFM | |
| Component description for fully integrated transmission control unit | Model 222 with transmission 724.2 up to model year 2018 Y38n4 | GF27.60-P-5165LFH | |
| Model 217, 222 with transmission 722.9 (except 722.931/932/971) Y38n4 | GF27.60-P-5165AHB | ||
| Model 217, 222 with transmission 722.931/97' Y38n4 | GF27.60-P-5165AHD | ||
| Model 217, 222 with transmission 722.932 Y38n4 | GF27.60-P-5165AHY | ||
| Model 217, 222 with transmission 725.0 (except 725.017/066/096) Y38n4 | GF27.60-P-5165AND | ||
| Table of contents for function description of theft protection and locking | GF80.00-P-0999LF |
