Remove/Install And Disassemble Rear Shelf - AR68.30-P-4580LF

Model 222.0/1/9

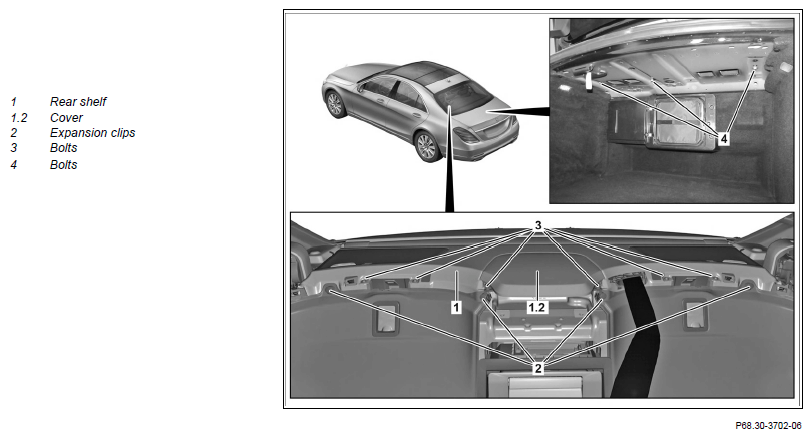

Shown on vehicle with CODE 540 (Electric roller blind for rear window) and with CODE 223 (Electrically adjustable rear seats)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

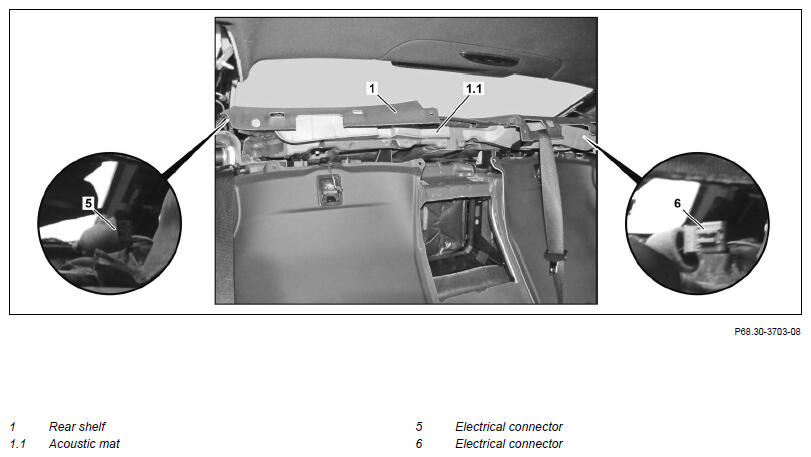

Shown on vehicle with CODE 540 (Electric roller blind for rear window) and with CODE 223 (Electrically adjustable rear seats)

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove upper paneling from C-pillars	MODEL 222.0/1	AR68.30-P-4490LF
		MODEL 222.9	AR68.30-P-4490LFA
2	Remove seat cushion	MODEL 222.0/1 with CODE 223 (Electrically adjustable rear bench seat) MODEL 222.0/1 with CODE 224 (Rear individual seat design)	AR91.12-P-1020LFA
		MODEL 222.0/1 without CODE 223 (Electrically adjustable rear bench seat) without CODE 224 (Rear individual seat design)	AR91.12-P-1020LF
3	Remove seat backrest	MODEL 222.0/1 with CODE 223 (Electrically adjustable rear bench seat) MODEL 222.0/1 with CODE 224 (Rear individual seat design)	AR91.12-P-1620LFA
		MODEL 222.0/1 without CODE 223 (Electrically adjustable rear bench seat) without CODE 224 (Rear individual seat design)	AR91.12-P-1620LF
4	Remove armrest from backrest	MODEL 222.0/1 with CODE 223 (Electrically adjustable rear bench seat)	AR91.12-P-1745LFA
5	Remove trim piece behind rear seat	MODEL 222.0/1 with CODE 223 (Electrically adjustable rear bench seat)	AR68.30-P-1460LF
6	Remove side paneling in rear	MODEL 222.0/1 without CODE 223 (Electrically adjustable rear bench seat) without CODE 224 (Rear individual seat design)
			AR68.30-P-4780LF
7	Remove expansion clip (2) from rear shelf (1)	MODEL 222.0/1 with CODE 223 (Electrically adjustable rear bench seat)
8	Remove cover (1.2)
9	Unscrew bolts (3) from rear shelf (1)
10	Loosen bolts (4) in trunk
11	Release belt end fitting on center of seat belt	MODEL 222.0/1 without CODE 223 (Electrically adjustable rear bench seat) without CODE 224 (Rear individual seat design)
12	Remove belt guide cover in rear shelf (1)	MODEL 222.0/1 without CODE 223 (Electrically adjustable rear bench seat) without CODE 224 (Rear individual seat design)
13	Guide belt end fitting on center seat belt through opening in rear shelf (1)	MODEL 222.0/1 without CODE 223 (Electrically adjustable rear bench seat) without CODE 224 (Rear individual seat design) On vehicles except CODE 223 (Electrically adjustable rear bench seat) or on vehicles except CODE 224 (First-Class, rear)
14	Lift rear shelf (1) an disconnect electrical connector (6)	MODEL 222.0/1 without CODE 540 (Electric sunblind for rear window)
15	Lift rear shelf (1) and disconnect electrical connectors (5, 6)	MODEL 222.0/1 with CODE 540 (Electric sunblind for rear window)
16	Disconnect electrical connectors from speaker	MODEL 222.0/1 with CODE 810 (Sound system) MODEL 222.0/1 with CODE 811 (Advanced sound system)
17	Remove rear shelf (1) and acoustic mat (1.1) from rear shelf (1)

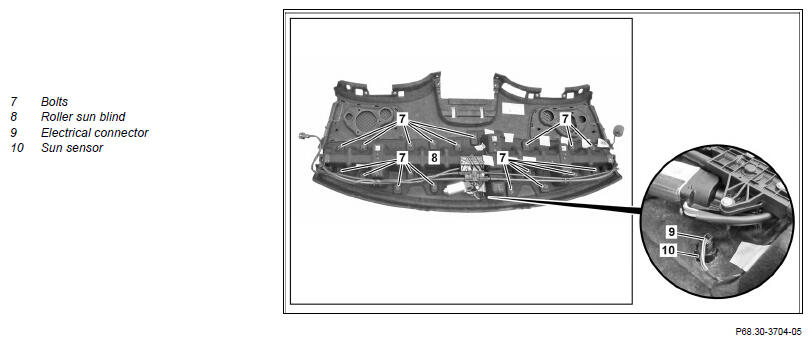

18	Unscrew bolts (7) from roller sun blind (8)	MODEL 222.0/1 with CODE 540 (Electric sunblind for rear window) When replacing roller sun blind (8)
19	Remove roller sun blind (8)	MODEL 222.0/1 with CODE 540 (Electric sunblind for rear window) When replacing roller sun blind (8)
20	Disconnect electrical connector (9) from sun sensor (10)	When replacing rear shelf (1)
21	Remove sun sensor (10)	When replacing rear shelf (1) : Use adhesive strip to fasten electrical line on sun sensor (10).
22	Transfer speaker	MODEL 222.0/1 with CODE 810 (Sound system) MODEL 222.0/1 with CODE 811 (Advanced sound system) When replacing rear shelf (1)
23	Install in the reverse order
