Remove/Install Armrest At Rear Seat Backrest - AR91.12-P-1745LFA
Model 222.0/1/9
with code 223 (Electric backrest adjustment and head restraints)
| Remove/install | |||

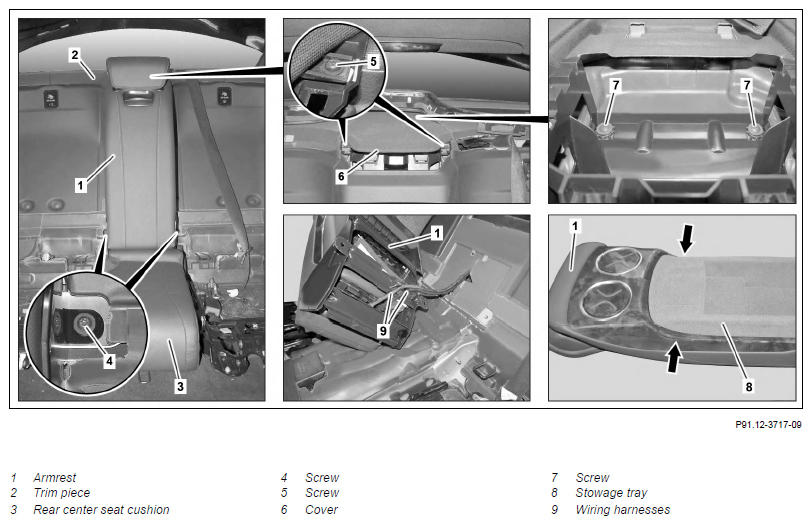

| 1 | Remove both rear backrests | Model 222.0/1/9 with code 223 (Electric backrest adjustment and head restraints) |
AR91.12-P-1620LFA |
| 2 | Remove trim piece (2) at rear on rear seat | AR68.30-P-1460LF | |
| 3 | Fold out the armrest (1) | ||
| 4 | Open inside cover of the armrest (1) | ||
| 5 | Unclip stowage tray (8) in area of arrows using an assembly wedge, then remove and turn over | Fig 1 | |
| 6 | Disconnect electrical connectors from electrical wiring harnesses (9) | ||
| 7 | Unfasten electrical wiring harnesses (9) from stowage tray (8) bracket | ||
| 8 | Remove bolts (5) | ||
| 9 | Remove cover (6) | ||
| 10 | Close inside cover of the armrest (1) | ||
| 11 | Fold in armrest (1) | ||
| 12 | Remove bolts (7) | ||
| 13 | Remove screws/bolts (4) | ||
| 14 | Unclip rear center seat cushion (3) and remove | ||
| 15 | Pull armrest (1) forward until the electrical wiring harnesses (9) can be taken out of the armrest (1) | ||
| 16 | Remove electrical wiring harnesses (9) from the armrest (1) | ||
| 17 | Remove armrest (1) | Otherwise components in vehicle interior or at rear doors could become damaged. |
|
| 18 | Install in the reverse order |
