Remove/Install Headliner - AR68.30-P-4300CLW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.3
Shown with code 413 (Panoramic sliding roof)
Shown with code 235 (Active park assist with PARKTRONIC)
| Remove/install | |||

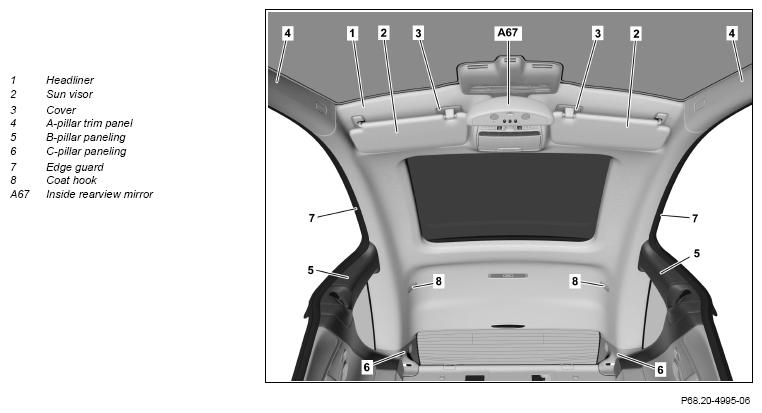

| 1 | Remove windshield | AR67.10-P-1000LW | |
| 2 | Completely open roller sun blind on panoramic roof | Model 205.3 with code 413 (Automatic panoramic sliding sunroof) |
|
| 3 | Remove inside rearview mirror (A67) | AR68.40-P-0001LW | |

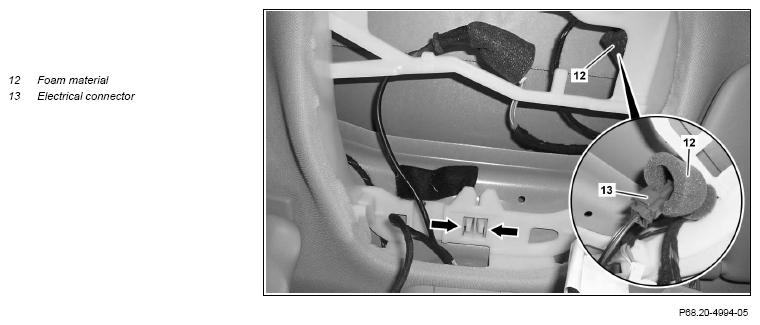

| 4 | Fold back foam material (12) and disconnect electrical connector (13) | Model 205.3 with code 235 (Active Parking Assist with PARKTRONIC) Completely pull foam material (12) over electrical connector (13). Otherwise noises can occur. |
|
| 5 | Remove left and right sun visor (2). | AR68.60-P-5480NKB | |
| 6 | Unclip the left and right cover (3) from the headliner (1). | ||
| 7 | Remove left and right A-pillar paneling (4) | AR68.30-P-4050LW | |
| 8 | Remove left and right B-pillar paneling (5) | AR68.30-P-4700CLW | |
| 9 | Remove the left and right coat hook (8) and unscrew the bolts below. | Fig 1 | |
| 10 | Remove left and right C-pillar paneling (6) and lay down to side with installed seat belts | AR68.30-P-4490CLW | |
| 11 | Remove the edge guards (7) from the body flange in the area of the headliner (1). | ||
| 12 | Press the catch hooks (arrows) together and unclip the headliner (1) from the front roof frame | ||
| 13 | Push headliner (1) toward rear until guide hooks are unhooked from rear roof frame and lay headliner (1) down on vehicle | ||
| 14 | Remove headliner (1) toward front | Otherwise the headliner (1) can be damaged. |
|
| 15 | Make sure that all of the soundproofing on the headliner (1) is properly attached and in good condition. | Model 205.3 with code 494 (US version) If the headliner (1) is reused. If complaint present ↓ Replace the affected soundproofing on the headliner (1). |
|
| 16 | Prepare new headliner (1) for installation | When replacing roof paneling (1). | AR68.30-P-4305-16LW |
| Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | *BR00.45-Z-1144-02A | ||
| 17 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |
