Remove/Install Trim At C-Pillar - AR68.30-P-4490CLW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.3

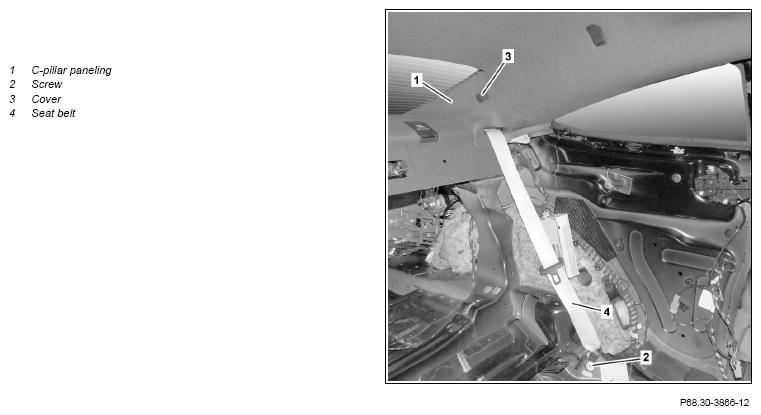

Shown on left side of vehicle
| Remove/install | |||
| 1 | Remove rear passenger compartment side trim panel | AR68.30-P-4780CLW | |
| 2 | Unscrew bolt (2) | *BA91.40-P-1005-01U | |
| 3 | Unclip cover (3) | Fig 1 | |
| 4 | Detach C-pillar paneling (1) from C-pillar, slightly tilt toward center of vehicle and then move out toward front | Otherwise roof paneling can be damaged. Clip in C-pillar paneling (1) completely preassembled. Ensure that C-pillar paneling (1) is seated correctly. |
|
| 5 | Guide seat belt (4) through C-pillar paneling (1) | ||
| 6 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.3 | |
|---|---|---|---|
| BA91.40-P-1005-01U | Bolt, rear belt end fitting | Nm | 35 |
